Toyota RAV4 — ENGINE OVERHAUL GASKET KIT

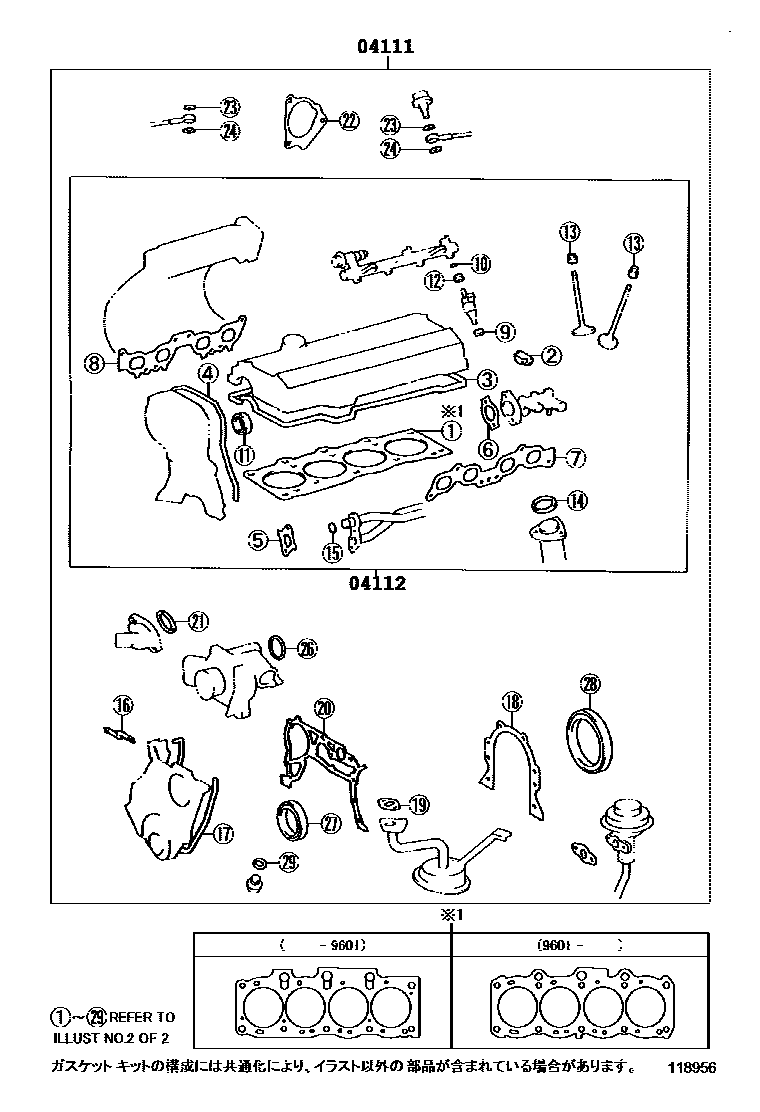

Parts diagram

04111GASKET KIT, ENGINE OVERHAUL

main04111-74490i¥38,600199404-199508

main04111-74491i¥38,700199508-199601

main04111-74492i¥38,700199601-199608

main04111-74520i¥39,200199608-199702

sub04111-74521¥39,100

main04111-74521i¥39,100199702-199808

main04111-74590i¥38,600199608-199610

main04111-74591i¥38,600199610-199612

sub04111-74592¥38,700

main04111-74592i¥38,700199612-200005

main04111-74710i¥39,100199808-200005

04112GASKET KIT, ENGINE VALVE GRIND

main04112-74490i¥25,500199404-199601

main04112-74491i¥25,300199601-199608

main04112-74512i¥30,400199608-199702

sub04112-74513¥30,400

main04112-74513i¥30,400199702-199808

main04112-74560i¥25,300199608-199610

main04112-74561i¥25,300199610-199612

sub04112-74562¥25,300

main04112-74562i¥25,300199612-200005

main04112-74710i¥29,100199808-200005

2 parts on this diagram · 8 diagrams in section
