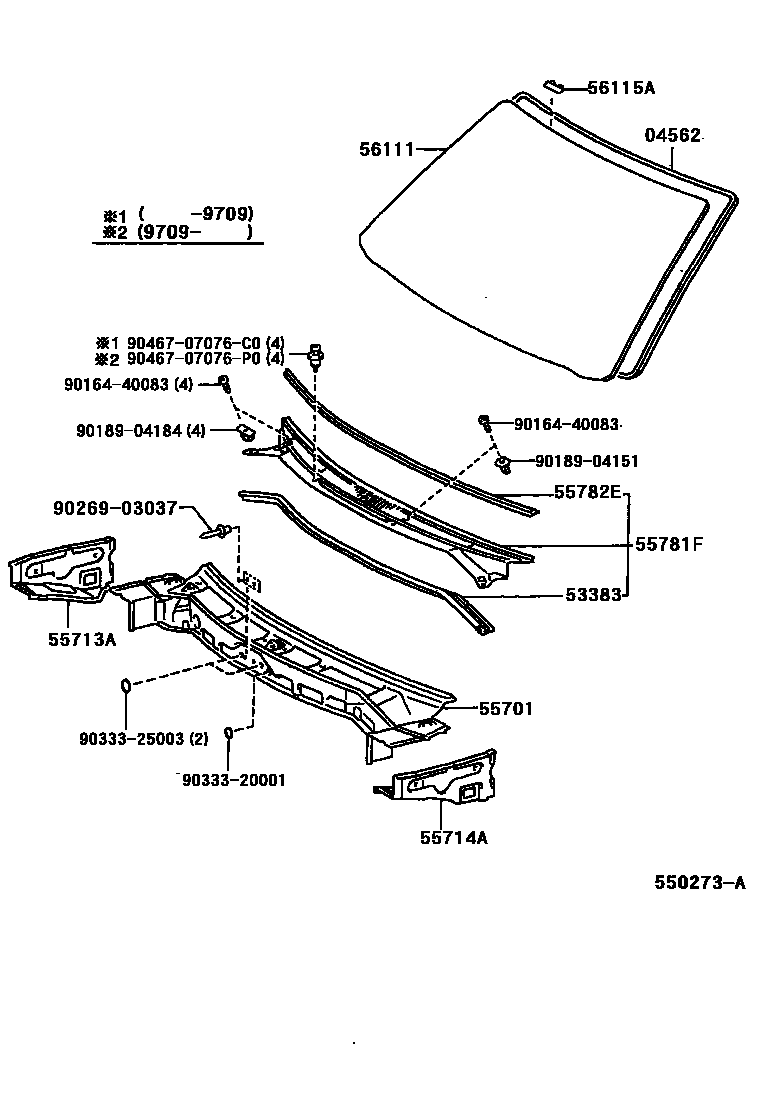

Toyota RAV4 — COWL PANEL & WINDSHIELD GLASS

04562DAM KIT, WINDSHIELD GLASS

main04562-12010iSXA1#¥2,100199404

53383SEAL, HOOD TO COWL TOP

main53383-42010iSXA1#¥2,090199404

55701PANEL SUB-ASSY, COWL

main55700-42010iSXA1#¥32,800199404-199608

main55700-42051iSXA1#..NOB¥32,900199709

main55700-42130iSXA10,11..G¥32,900199608-199808

main55700-42150iSXA10,11..X¥32,900199712

main55700-42300iSXA10,11..G¥32,900199808

55713APANEL, COWL TOP SIDE, RH

main55713-42010iSXA1#¥2,600199404-199608

sub55713-42011¥2,620

main55713-42011iSXA1#¥2,620199608

55714APANEL, COWL TOP SIDE, LH

main55714-42010iSXA1#¥2,600199404-199608

sub55714-42011¥2,620

main55714-42011iSXA1#¥2,620199608

55781FLOUVER, COWL TOP VENTILATOR

main55708-42010iSXA1#¥10,300199404-199702

main55708-42030iSXA1#¥10,500199702

55782EPROTECTOR, COWL TOP VENTILATOR LOUVER

main55782-42010iSXA1#¥480199404-199702

main55782-42020iSXA1#¥510199702

sub55782-42010¥480

56111GLASS, WINDSHIELD

main56111-42010iSXA10¥84,700199404-199504

sub56111-42020¥84,600

main56111-42020iSXA1#¥84,600199504

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-20080iSXA1#¥670199404

9016440083

main90164-40083¥120

9018904151

main90189-04151¥130

9018904184

main90189-04184¥130

9033320001

main90333-20001¥70

9033325003

main90333-25003¥70

9046707076C0

main90467-07076C0

9046707076P0

main90467-07076P0

16 parts on this diagram · 1 diagram in section
