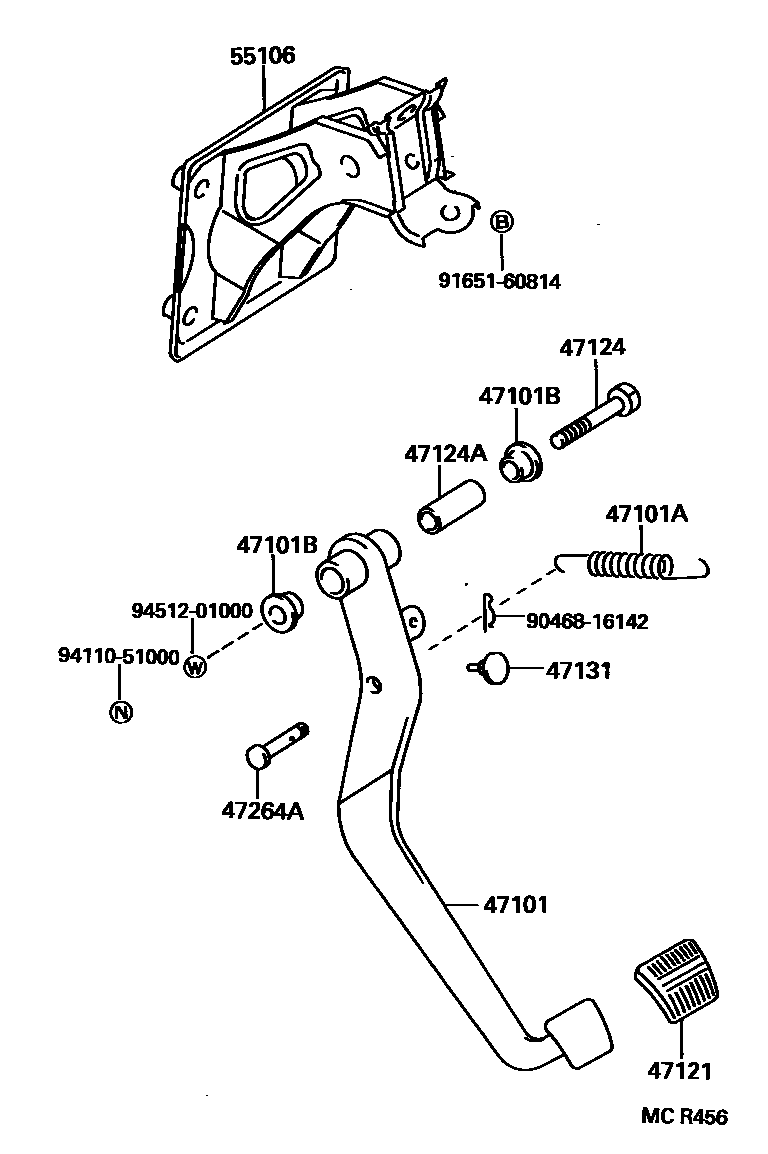

Toyota RAV4 — BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-42010iSXA1#..MTM¥2,360199404-199709

main47101-42011iSXA1#..MTM¥2,370199709

main47101-42020iSXA1#..ATM¥2,780199404-199709

main47101-42021iSXA1#..ATM¥2,790199709

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-14034iSXA1#¥240199404

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015iSXA1#¥120199404

47121PAD, BRAKE PEDAL

main31321-14020iSXA1#..MTM¥200199404

main47121-14010iSXA1#..ATM¥490199404

47124SHAFT, BRAKE PEDAL

main90101-10015iSXA1#¥160199404

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10003iSXA1#¥370199404

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06036iSXA1#¥110199404

47264APIN(FOR PUSH ROD)

main47148-35010iSXA1#¥350199404-199507

main90249-10064iSXA1#¥210199507-199709

main90249-10144iSXA1#¥260199709

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-42010iSXA1#¥3,370199404-199709

sub55106-42050¥3,370

main55106-42050iSXA1#¥3,370199709

9046816142

main90468-16142¥70

9165160814

main91651-60814¥130

9411051000

main94110-51000¥130

9451201000

main94512-01000¥90

13 parts on this diagram · 1 diagram in section
