Toyota RAV4 — STANDARD TOOL

09110JACK ASSY

main09110-42030iACA2#,CLA2#,ZCA2#..EUR,GCC,GEN¥5,300200005-200307

main09110-42030iACA20,21,CLA2#,ZCA2#¥5,300200307-200511

main09110-42040iACA2#..ARL¥5,300200005-200307

sub09110-42041¥5,300

main09110-42040iACA22,23¥5,300200307-200410

sub09110-42041¥5,300

main09110-42041iACA20,21..LHD..ATM..EUR¥5,300200411-200511

W(DESTINATION PACKAGE CHINA)

09113HANDLE, JACK

main09113-42010iACA2#,CLA2#,ZCA2#¥1,090200005-200307

main09113-42010iACA2#,CLA2#,ZCA2#¥1,090200307

09120BAG, TOOL

main09120-30050iACA2#,CLA2#,ZCA2#¥550200307

main09120-30050iACA2#,CLA2#,ZCA2#¥550200005-200307

09130PLIERS

main99913-11500iACA21..GCC,GEN;ACA21..LHD..EUR;ACA20,ZCA2#..LHD¥400200307

main99913-11500iACA2#..GCC,GEN;ACA2#,ZCA2#..LHD..EUR¥400200005-200307

09135DRIVER, SCREW

main99915-10700iACA2#..GCC,GEN;ACA2#,CLA2#,ZCA2#..LHD..EUR¥460200005-200307

main99915-10700iACA21..GCC,GEN;ACA21..LHD..EUR;ACA20,CLA2#,ZCA2#..LHD¥460200307

09141SPANNER

main99914-10810iACA21..GCC,GEN;ACA21..LHD..EUR;ACA20,CLA2#,ZCA2#..LHD¥240200307

8 X 10

main99914-10810iACA2#..GCC,GEN;ACA2#,CLA2#,ZCA2#..LHD..EUR¥240200005-200307

8 X 10

main99914-11214iACA2#..GCC,GEN;ACA2#,ZCA2#..LHD..EUR¥400200005-200307

12 X 14

main99914-11214iACA21..GCC,GEN;ACA21..LHD..EUR;ACA20,ZCA2#..LHD¥400200307

12 X 14

09150WRENCH, HUB NUT BOX

main09150-40010iACA2#,CLA2#,ZCA2#¥1,150200005-200307

main09150-40010iACA2#,CLA2#,ZCA2#¥1,150200307-200511

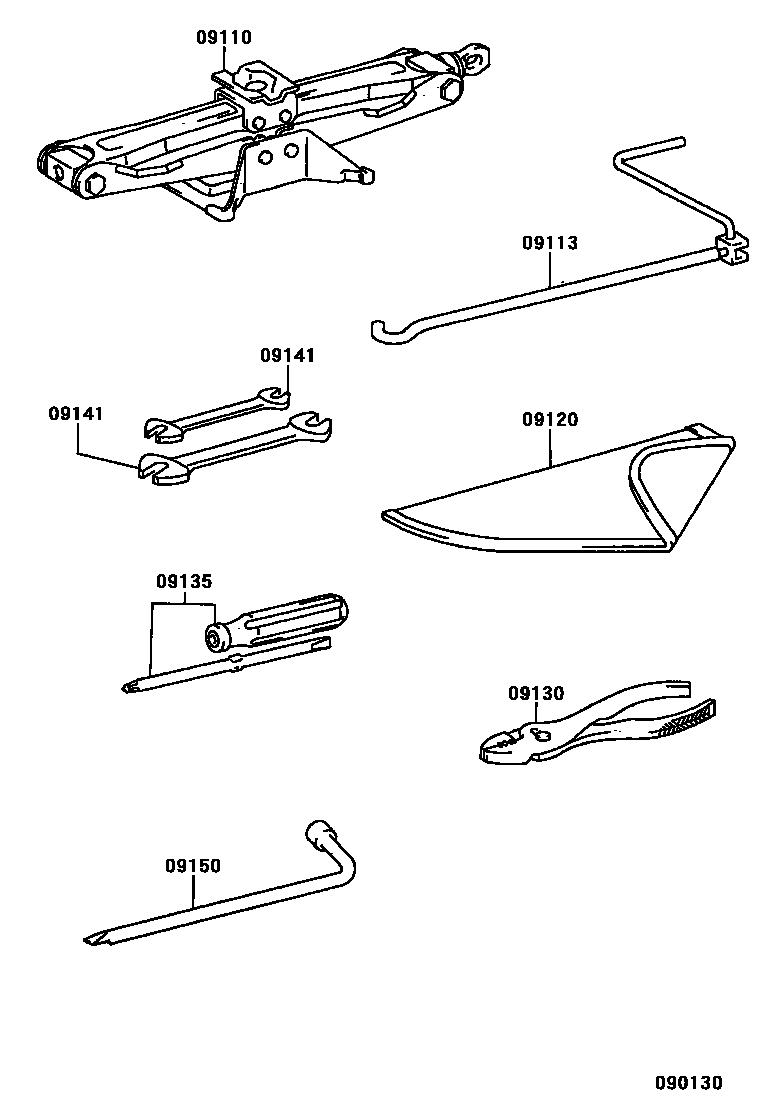

7 parts on this diagram · 1 diagram in section
