Toyota RAV4 — SPEAKER

0001 1 0002 1

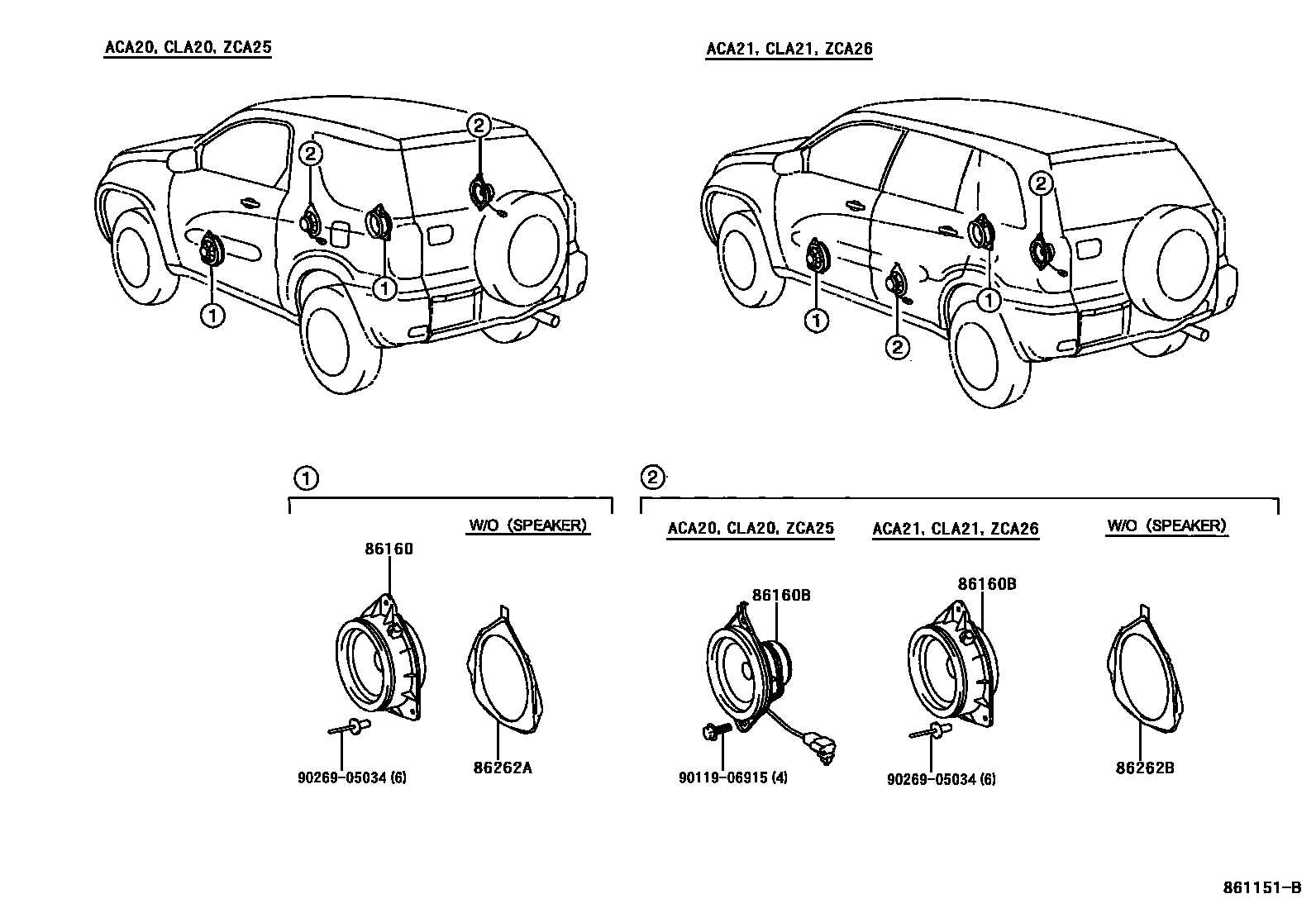

86160SPEAKER ASSY, FRONT NO.1

main86160-42070iACA2#,CLA2#,ZCA2#¥12,100200005-200307

sub86160-42110¥12,100

main86160-42070iACA2#,CLA2#,ZCA2#¥12,100200307-200407

sub86160-42110¥12,100

main86160-42110iACA2#,CLA2#,ZCA2#¥12,100200407

86160BSPEAKER ASSY, REAR

main86160-42070iACA21,23,CLA21,ZCA26¥12,100200307-200407

sub86160-42110¥12,100

main86160-42070iACA21,CLA21,ZCA26¥12,100200005-200307

sub86160-42110¥12,100

main86160-42080iACA20,22,CLA20,ZCA25¥12,100200307

main86160-42080iACA20,CLA20,ZCA25¥12,100200005-200307

main86160-42110iACA21,23,CLA21,ZCA26¥12,100200407

86262ACOVER, SPEAKER, FRONT

main86262-17010iACA2#,CLA2#,ZCA2#..EUR,GCC,GEN¥890200005-200307

86262BCOVER, SPEAKER, REAR

main86262-17010iACA21,CLA21,ZCA26..EUR,GCC,GEN¥890200005-200307

9011906915

main90119-06915¥60

9026905034

main90269-05034¥140

6 parts on this diagram · 2 diagrams in section
