Toyota RAV4 — SIDE WINDOW

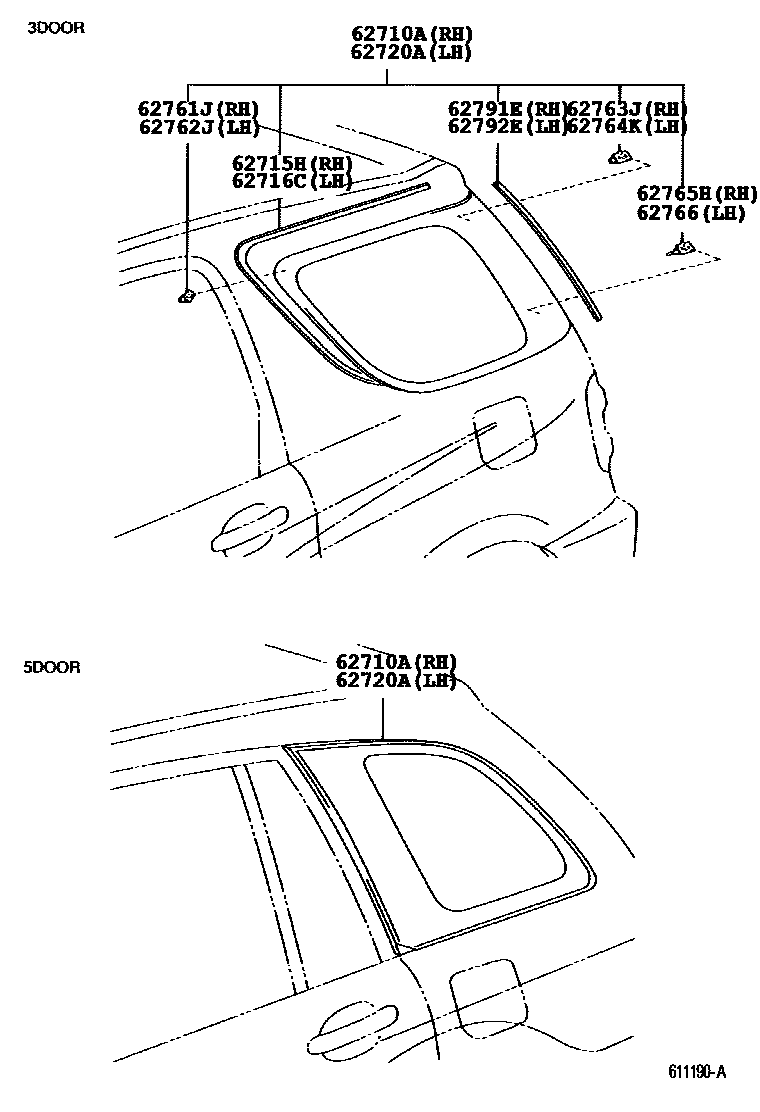

Parts diagram

62710AWINDOW ASSY, QUARTER, RH

main62710-42090i¥33,100200005-200307

*UVCTT,T=3.5,GREEN

sub62710-42170¥33,300

main62710-42130i¥25,300200005-200307

*UVCTT,T=3.1,GREEN

sub62710-42210¥25,600

main62710-42170i¥33,300200307

*UVCT,T=3.5,GREEN

main62710-42190i¥40,000200307

*TT,T=3.5,DARK GRAY

main62710-42210i¥25,600200307

*UVCT,T=3.1,GREEN

main62710-42230i¥30,700200307

*TT,T=3.1,DARK GRAY

62715HDAM, QUARTER WINDOW GLASS ADHESIVE, RH

main62715-42010i¥1,220200005-200307

main62715-42010i¥1,220200307

62716CDAM, QUARTER WINDOW GLASS ADHESIVE, LH

main62716-42010i¥1,220200005-200307

main62716-42010i¥1,220200307

62720AWINDOW ASSY, QUARTER, LH

main62720-42120i¥33,100200005-200307

*UVCTT,T=3.5,GREEN

sub62720-42200¥33,300

main62720-42160i¥25,300200005-200307

*UVCTT,T=3.1,GREEN

sub62720-42240¥25,600

main62720-42200i¥33,300200307

*UVCT,T=3.5,GREEN

main62720-42220i¥40,000200307

*TT,T=3.5,DARK GRAY

main62720-42240i¥25,600200307

*UVCT,T=3.1,GREEN

main62720-42260i¥30,700200307

*TT,T=3.1,DARK GRAY

62761JRETAINER, QUARTER WINDOW GLASS, FRONT RH

main62761-42010i¥310200005-200307

main62761-42010i¥310200307

62762JRETAINER, QUARTER WINDOW GLASS, FRONT LH

main62762-42010i¥310200005-200307

main62762-42010i¥310200307

62763JRETAINER, QUARTER WINDOW GLASS, UPPER

main62763-42020i¥370200005-200307

main62763-42020i¥370200307

62764KRETAINER, QUARTER WINDOW GLASS, UPPER

main62764-42010i¥370200005-200307

main62764-42010i¥370200307

62765HRETAINER, QUARTER WINDOW GLASS, LOWER

main62765-42010i¥380200005-200307

main62765-42010i¥380200307

62766RETAINER, QUARTER WINDOW GLASS, LOWER LH

main62766-42010i¥380200005-200307

main62766-42010i¥380200307

62791EMOULDING, QUARTER WINDOW, UPPER RH

main62791-42010i¥1,400200005-200307

main62791-42010i¥1,400200307

62792EMOULDING, QUARTER WINDOW, UPPER LH

main62792-42010i¥1,400200005-200307

main62792-42010i¥1,400200307

12 parts on this diagram · 1 diagram in section
