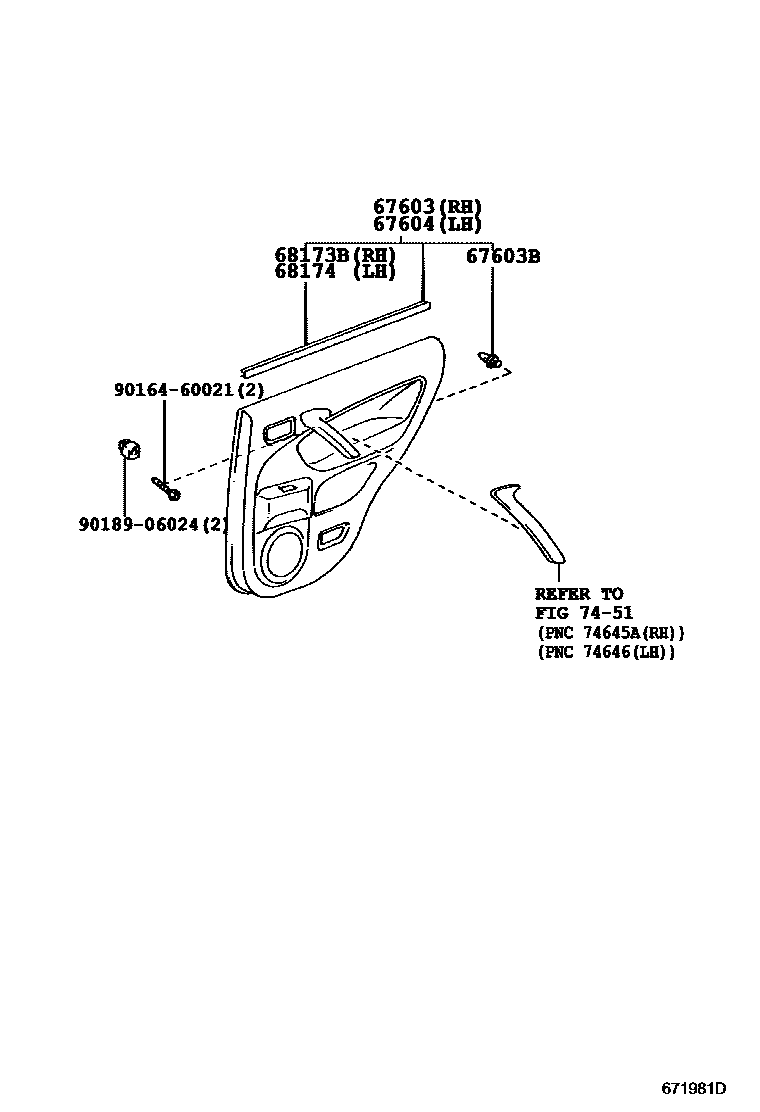

Toyota RAV4 — REAR DOOR PANEL & GLASS

0001 1 0002 1 0003 1

67603BOARD SUB-ASSY, REAR DOOR TRIM, RH

main67630-42200-B0iACA21,CLA21,ZCA26..EUR,GCC,GEN200005-200307

DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),BLUE GRAY,TRIM14

main67630-42200-B1iACA21,CLA21,ZCA26..EUR,GCC,GEN200005-200307

DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),BLUE GRAY,TRIM15

main67630-42210-B0iACA21,CLA21,ZCA26..EUR,GCC,GEN200005-200307

DOOR TRIM=TYPE A-*104,BLUE GRAY,TRIM14

main67630-42210-B1iACA21,CLA21,ZCA26..EUR,GCC,GEN200005-200307

DOOR TRIM=TYPE A-*104,BLUE GRAY,TRIM15

main67630-42220-B0iACA21..ARL200005-200307

DOOR TRIM=TYPE B-*104 & W(POWER WINDOW),BLUE GRAY,TRIM1#

main67630-42230-B0iACA21..ARL200005-200307

DOOR TRIM=TYPE B-*104,BLUE GRAY,TRIM1#

main67630-42240-B1iACA21,CLA21,ZCA26..EUR,GCC200005-200307

DOOR TRIM=TYPE C-*104 & W(POWER WINDOW),BLUE GRAY,TRIM1#

main67630-42250-B0iACA21,23,CLA21,ZCA26200307-200511

W(POWER WINDOW),DK.GRAY,TRIM1#

main67630-42260-B0iACA21,CLA21,ZCA26..EUR200307-200511

DK.GRAY,TRIM1#

main67630-42290-B0iACA21,CLA21,ZCA26..EUR,GCC200307-200511

LEATHER TRIM & W(POWER WINDOW),DK.GRAY,TRIM1#

67603BCLIP(FOR REAR DOOR TRIM BOARD)

main90467-09206iACA21,CLA21,ZCA26¥80200005-200511

67604BOARD SUB-ASSY, REAR DOOR TRIM, LH

main67640-42200-B0iACA21,CLA21,ZCA26..EUR,GCC,GEN200005-200307

DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),BLUE GRAY,TRIM14

main67640-42200-B1iACA21,CLA21,ZCA26..EUR,GCC,GEN200005-200307

DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),BLUE GRAY,TRIM15

main67640-42210-B0iACA21,CLA21,ZCA26..EUR,GCC,GEN200005-200307

DOOR TRIM=TYPE A-*104,BLUE GRAY,TRIM14

main67640-42210-B1iACA21,CLA21,ZCA26..EUR,GCC,GEN200005-200307

DOOR TRIM=TYPE A-*104,BLUE GRAY,TRIM15

main67640-42220-B0iACA21..ARL200005-200307

DOOR TRIM=TYPE B-*104 & W(POWER WINDOW),BLUE GRAY,TRIM1#

main67640-42230-B0iACA21..ARL200005-200307

DOOR TRIM=TYPE B-*104,BLUE GRAY,TRIM1#

main67640-42240-B1iACA21,CLA21,ZCA26..EUR,GCC200005-200307

DOOR TRIM=TYPE C-*104 & W(POWER WINDOW),BLUE GRAY,TRIM1#

main67640-42250-B0iACA21,23,CLA21,ZCA26200307-200511

W(POWER WINDOW),DK.GRAY,TRIM1#

main67640-42260-B0iACA21,CLA21,ZCA26..EUR200307-200511

DK.GRAY,TRIM1#

main67640-42290-B0iACA21,CLA21,ZCA26..EUR,GCC200307-200511

LEATHER TRIM & W(POWER WINDOW),DK.GRAY,TRIM1#

68173BWEATHERSTRIP, REAR DOOR GLASS, INNER RH

main68173-42020iACA21,CLA21,ZCA26¥3,960200005-200511

68174WEATHERSTRIP, REAR DOOR GLASS, INNER LH

main68174-42010iACA21,CLA21,ZCA26¥3,960200005-200511

7451

9016460021

main90164-60021¥70

9018906024

main90189-06024¥110

8 parts on this diagram · 3 diagrams in section
