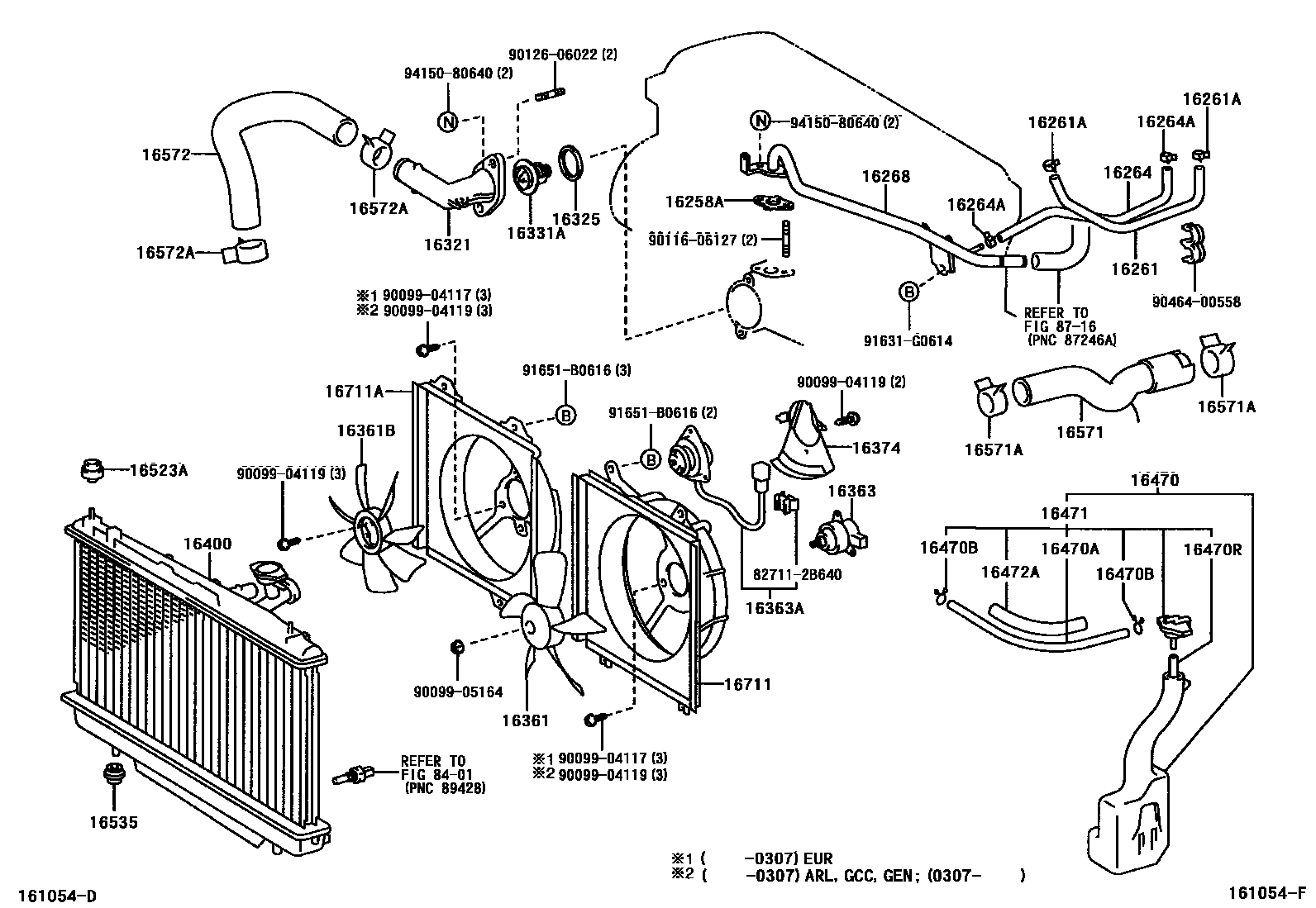

Toyota RAV4 — RADIATOR & WATER OUTLET
16258AGASKET(FOR HEATER RETURN)
16261HOSE, WATER BY-PASS
(L)
(J)
16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
NO.1
NO.1
NO.2
16264HOSE, WATER BY-PASS, NO.2
(L)
(J)
16264ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
16268PIPE, WATER BY-PASS, NO.1
16321INLET, WATER
16325GASKET, WATER INLET HOUSING, NO.1
(L)
(J)
16331ATHERMOSTAT
*WAX 82-95
*WAX 82-95
*WAX 82-95
16361FAN
TYPE A:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION
16361BFAN, NO.2
16363MOTOR, COOLING FAN
TYPE B:REFER TO ILLUSTRATION
16363AMOTOR, COOLING FAN, NO.2
16374INSULATOR, COOLING FAN MOTOR
16400RADIATOR ASSY
sub16400-22122
W(MANUAL AIR CONDITIONER(MOP))
W(MANUAL AIR CONDITIONER(MOP))
sub16400-28171
W(MANUAL AIR CONDITIONER(MOP))
sub16400-28191
CHINA SPEC
16470TANK ASSY, RADIATOR RESERVE
16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)
L=600(*H,L=210)
16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
16470RHOSE, NO.2(FOR RADIATOR RESERVE TANK)
*H,L=380
16471CAP SUB-ASSY, RESERVE TANK
16472APROTECTOR, HOSE
16523ACUSHION, RADIATOR SUPPORT
16535SUPPORT, RADIATOR, LOWER
16571HOSE, RADIATOR, INLET
16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
NO.2
NO.1
16572HOSE, RADIATOR, OUTLET
16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
NO.1
NO.2
16711SHROUD, FAN
TYPE B:REFER TO ILLUSTRATION
TYPE A:REFER TO ILLUSTRATION
16711ASHROUD, FAN, NO.2
8401
8716
827112B640WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
9009904117
main90099-04117
9009904119
main90099-04119
9009905164
9011606127
9012606022
9046400558
91631G0614
91651B0616
9415080640
41 parts on this diagram · 8 diagrams in section
