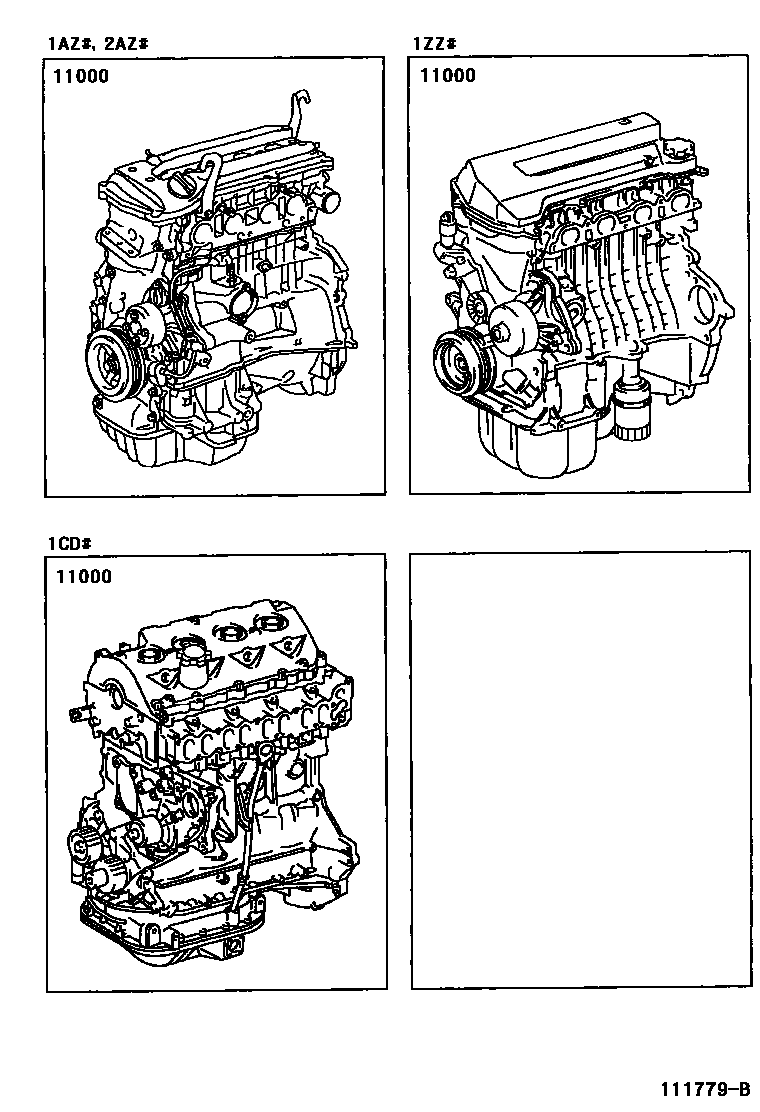

Toyota RAV4 — PARTIAL ENGINE ASSEMBLY

11000ENGINE ASSY, PARTIAL

main19000-22080i1ZZFE..ZCA2#¥672,000200101-200202

sub19000-22081¥672,000

main19000-22081i1ZZFE..ZCA2#¥672,000200202-200209

sub19000-22320¥673,000

main19000-22170i1ZZFE..ZCA2#¥672,000200005-200101

sub19000-22080¥672,000

main19000-22320i1ZZFE..ZCA2#¥673,000200209-200307

sub19000-22321¥672,000

sub16258-28030¥370

sub16268-22042¥7,100

sub16268-22101¥6,500

main19000-22380i1ZZFE..ZCA2#¥671,000200307-200511

sub19000-22192¥672,000

sub16258-28030¥370

sub16268-22101¥6,500

main19000-27180i1CDFTV..CLA2#200105-200307

main19000-27180i1CDFTV..CLA2#200307-200511

main19000-28160i1AZFE..ACA2#..ARL,EUR¥727,000200005-200108

sub19000-28161

main19000-28160i1AZFE..ACA2#..ARL,EUR,GCC¥727,000200108-200307

sub19000-28161

main19000-28180i1AZFE..ACA2#..GEN¥727,000200108-200307

sub19000-28181

main19000-28180i1AZFE..ACA2#..GCC,GEN¥727,000200008-200108

sub19000-28181

main19000-28290i1AZFE..ACA21..GEN¥726,000200307-200511

sub19000-28661

main19000-28400i1AZFE..ACA20;1AZFE..ACA21..EUR;1AZFE..ACA21..MTM..GCC¥726,000200307-200511

sub19000-28494

main19000-28400i1AZFE..ACA21..ATM..GCC¥726,000200404-200511

sub19000-28494

main19000-28410i2AZFE..ACA22,23¥837,000200307-200511

sub19000-28411

1 parts on this diagram · 1 diagram in section
