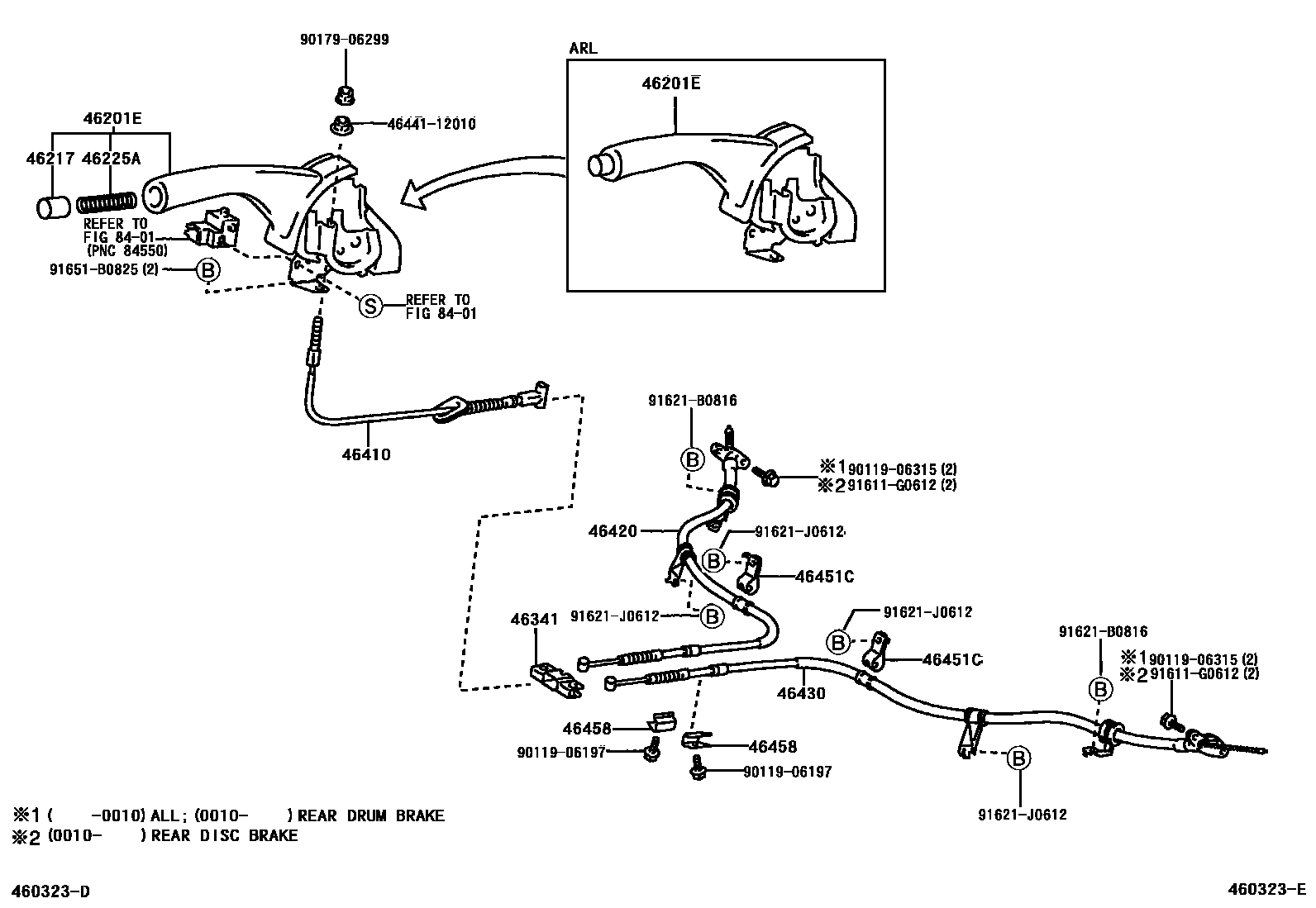

Toyota RAV4 — PARKING BRAKE & CABLE

0001 1 0002 1 0003 1W(REAR DISC BRAKE)

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-42060-C0iACA2#,CLA2#,ZCA2#..RHD..(EUR,GEN)200005-200307

BLACK,TRIM14,15

main46201-42060-C0iACA20,21,CLA2#,ZCA2#..RHD200307-200511

BLACK,TRIM1#

main46201-42070-C0iACA20,21,CLA2#,ZCA2#..LHD200307-200511

BLACK,TRIM1#

main46201-42070-C0iACA2#,CLA2#,ZCA2#..LHD200005-200307

BLACK,TRIM14,15

main46201-42080-C0iACA22,23200307-200511

BLACK,TRIM1#

main46201-42080-C0iACA2#..ARL200005-200307

BLACK,TRIM1#

46217KNOB, PARKING BRAKE RELEASE ROD

main46217-16030-C0iACA2#,CLA2#,ZCA2#..EUR,GCC,GEN200005-200307

BLACK,TRIM14,15

sub46217-16030¥240

main46217-16030-C0iACA20,21,CLA2#,ZCA2#200307-200511

BLACK,TRIM1#

sub46217-16030¥240

46225ASPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD)

main90501-10132iACA2#,CLA2#,ZCA2#..EUR,GCC,GEN¥160200005-200307

main90501-10132iACA20,21,CLA2#,ZCA2#¥160200307

46341EQUALIZER, PARKING BRAKE

main46341-42010iACA2#,CLA2#,ZCA2#¥590200307

main46341-42010iACA2#,CLA2#,ZCA2#¥590200005-200307

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-42040iACA2#,CLA2#,ZCA2#¥2,270200005-200307

main46410-42040iACA2#,CLA2#,ZCA2#¥2,270200307

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-42070iACA21,23,CLA21,ZCA26¥4,640200307-200511

W(REAR DISC BRAKE)

main46420-42070iACA21,CLA21,ZCA26¥4,640200005-200307

W(REAR DISC BRAKE)

main46420-42080iACA20,22,CLA20,ZCA25¥4,320200307-200511

W(REAR DISC BRAKE)

main46420-42080iACA20,CLA20,ZCA25¥4,320200005-200307

W(REAR DISC BRAKE)

main46420-42090iACA21,CLA21,ZCA26..EUR,GCC,GEN¥4,640200005-200307

main46420-42090iACA21,CLA21,ZCA26¥4,640200307-200511

main46420-42100iACA20,CLA20,ZCA25¥4,460200307-200511

main46420-42100iACA20,CLA20,ZCA25..EUR,GCC,GEN¥4,460200005-200307

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-42070iACA21,23,CLA21,ZCA26¥4,640200307-200511

W(REAR DISC BRAKE)

main46430-42070iACA21,CLA21,ZCA26¥4,640200005-200307

W(REAR DISC BRAKE)

main46430-42080iACA20,CLA20,ZCA25¥4,320200005-200307

W(REAR DISC BRAKE)

main46430-42080iACA20,22,CLA20,ZCA25¥4,320200307-200511

W(REAR DISC BRAKE)

main46430-42090iACA21,CLA21,ZCA26..EUR,GCC,GEN¥4,640200005-200307

main46430-42090iACA21,CLA21,ZCA26¥4,640200307-200511

main46430-42100iACA20,CLA20,ZCA25..EUR,GCC,GEN¥4,460200005-200307

main46430-42100iACA20,CLA20,ZCA25¥4,460200307-200511

46451CBRACKET, PARKING BRAKE CABLE SUPPORT, NO.1

main46451-42070iACA20,22,CLA20,ZCA25¥480200307

main46451-42070iACA20,CLA20,ZCA25¥480200005-200307

main46451-42090iACA21,23,CLA21,ZCA26¥320200307

main46451-42090iACA21,CLA21,ZCA26¥320200005-200307

46458RETAINER, CABLE

main46458-28010iACA2#,CLA2#,ZCA2#¥190200005-200307

main46458-28010iACA2#,CLA2#,ZCA2#¥190200307

8401

4644112010NUT, WIRE ADJUSTING, NO.1

main46441-12010¥160

9011906197

main90119-06197¥50

9011906315

main90119-06315¥70

9017906299

main90179-06299¥70

91611G0612

main91611-G0612¥70

91621B0816

main91621-B0816¥90

91621J0612

main91621-J0612¥70

91651B0825

main91651-B0825¥120

18 parts on this diagram · 3 diagrams in section
