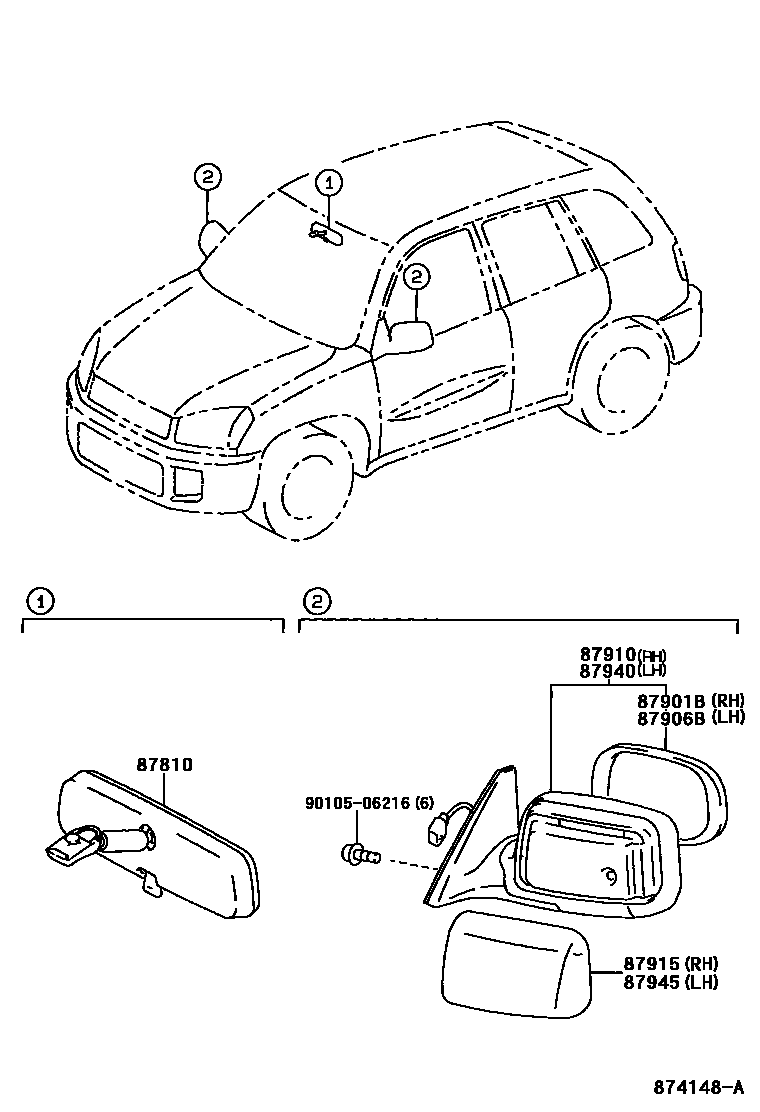

Toyota RAV4 — MIRROR

0001 1 0002 1

87810MIRROR ASSY, INNER REAR VIEW

main87810-05040iACA2#,CLA2#,ZCA2#¥36,900200307

W(AUTO DIMMER)

sub87810-05042¥36,900

main87810-52040iACA2#,CLA2#,ZCA2#¥10,100200307

sub87810-52041¥6,200

main87810-AA010iACA2#,CLA2#,ZCA2#¥10,100200005-200307

87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH

main87931-42580iACA2#,CLA2#,ZCA2#..EUR,GEN¥2,130200005-200307

main87931-42610iACA2#,CLA2#,ZCA2#..EUR¥3,540200005-200307

W(ELECTRIC REMOTE CONTROL MIRROR W/HEATER)

main87931-42630iACA2#..ARL¥2,150200005-200307

main87931-42650iACA2#..GCC¥2,150200008-200307

main87931-42720iACA20,21,CLA2#,ZCA2#..RHD¥3,290200307

main87931-42750iACA20,21,CLA2#,ZCA2#..RHD..EUR¥6,600200307

W(HEATER MIRROR)

main87931-42770iACA22,23¥3,290200307

main87931-42780iACA20,21..GCC¥3,300200307

main87931-44320iACA20,21,CLA2#,ZCA2#..LHD..EUR¥6,600200307

W(HEATER MIRROR)

main87931-46120iACA20,21,CLA2#,ZCA2#..LHD..(EUR,GEN)¥3,290200307

87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH

main87961-42550iACA2#,CLA2#,ZCA2#..ARL,EUR,GEN¥2,130200005-200307

main87961-42580iACA2#,CLA2#,ZCA2#..EUR¥3,540200005-200307

W(ELECTRIC REMOTE CONTROL MIRROR W/HEATER)

main87961-42600iACA2#..GCC¥2,150200008-200307

main87961-42670iACA20,21,CLA2#,ZCA2#..LHD..(EUR,GEN)¥3,290200307

main87961-42700iACA20,21,CLA2#,ZCA2#..LHD..EUR¥6,600200307

W(HEATER MIRROR)

main87961-42720iACA20,21..GCC¥3,300200307

main87961-44320iACA20,21,CLA2#,ZCA2#..RHD..EUR¥6,600200307

W(HEATER MIRROR)

main87961-46120iACA2#,CLA2#,ZCA2#..RHD¥3,300200307

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-42560iACA2#,CLA2#,ZCA2#..RHD..(EUR,GEN)¥20,000200005-200307

W(ELECTRIC REMOTE CONTROL MIRROR)

main87910-42580iACA2#,CLA2#,ZCA2#..RHD..(EUR,GEN)200005-200307

main87910-42590iACA2#,CLA2#,ZCA2#..LHD..(EUR,GEN)200005-200307

main87910-42600iACA2#,CLA2#,ZCA2#..LHD..(EUR,GEN)200005-200307

W(ELECTRIC REMOTE CONTROL MIRROR)

main87910-42610iACA2#,CLA2#,ZCA2#..RHD..EUR200005-200307

W(ELECTRIC REMOTE CONTROL MIRROR W/HEATER)

main87910-42620iACA2#,CLA2#,ZCA2#..LHD..EUR200005-200307

W(ELECTRIC REMOTE CONTROL MIRROR W/HEATER)

main87910-42630iACA2#..ARL200005-200307

main87910-42640iACA2#..ARL200005-200307

W(ELECTRIC REMOTE CONTROL MIRROR)

main87910-42650iACA2#..GCC200008-200307

main87910-42660iACA2#..GCC200008-200307

W(ELECTRIC REMOTE CONTROL MIRROR)

main87910-42720iACA20,21,CLA2#,ZCA2#..RHD200307

sub87910-42750

main87910-42740iACA20,21,CLA2#,ZCA2#..LHD..(EUR,GEN)200307

main87910-42750iACA20,21,CLA2#,ZCA2#..RHD..EUR200307

W(HEATER MIRROR)

main87910-42760iACA20,21,CLA2#,ZCA2#..LHD..EUR200307

W(HEATER MIRROR)

main87910-42770iACA22,23200307

main87910-42780iACA20,21..GCC200307

87915COVER, OUTER MIRROR, RH

main87915-42010iACA2#,CLA2#,ZCA2#¥3,200200005-200212

UNPAINTED(BLACK)

main87915-42020-A0iACA2#,CLA2#,ZCA2#..ARL,EUR200005-200212

WHITE,056

sub87915-42020¥3,200

main87915-42020-B0iACA2#,CLA2#,ZCA2#..ARL,EUR200005-200212

SILVER ME.,1D4

sub87915-42020¥3,200

main87915-42020-C0iACA2#,CLA2#,ZCA2#..ARL,EUR200005-200212

BLACK,202

sub87915-42020¥3,200

main87915-42020-D0iACA2#,CLA2#,ZCA2#..ARL,EUR200005-200212

RED M.M.,3P1

sub87915-42020¥3,200

main87915-42020-F0iACA2#,CLA2#,ZCA2#..ARL,EUR200005-200212

CHAMPAGNE ME.,586

sub87915-42020¥3,200

main87915-42020-G0iACA2#,CLA2#,ZCA2#..ARL,EUR200005-200212

DK.GREEN M.M.,6S3

sub87915-42020¥3,200

main87915-42020-J0iACA2#,CLA2#,ZCA2#..ARL,EUR200005-200212

BLUE MC.,8M6

sub87915-42020¥3,200

main87915-42020-J1iACA2#,CLA2#,ZCA2#..ARL,EUR200005-200212

BLUE ME.,8P1

sub87915-42020¥3,200

main87915-44010iACA2#,CLA2#,ZCA2#¥3,200200212-200307

UNPAINTED(BLACK)

main87915-44020-A2iACA2#,CLA2#,ZCA2#..ARL,EUR200212-200307

WHITE,056

main87915-44020-B2iACA2#,CLA2#,ZCA2#..ARL,EUR200212-200307

SILVER ME,1D4

main87915-44020-C0iACA2#,CLA2#,ZCA2#..ARL,EUR200212-200307

BLACK,202

main87915-44020-D3iACA2#,CLA2#,ZCA2#..ARL,EUR200212-200307

RED M.M.,3P1

main87915-44020-F1iACA2#,CLA2#,ZCA2#..ARL,EUR200212-200307

CHAMPAGNE ME.,586

main87915-44020-G1iACA2#,CLA2#,ZCA2#..ARL,EUR200212-200307

GRAY MC.,6S3

main87915-44020-J1iACA2#,CLA2#,ZCA2#..ARL,EUR200212-200307

BLUE MC.,8M6

main87915-44020-J2iACA2#,CLA2#,ZCA2#..ARL,EUR200212-200307

BLUE ME,8P1

main87915-46010iACA2#,CLA2#,ZCA2#¥1,410200307-200511

UNPAINTED(BLACK)

main87915-46020-A0iACA2#,CLA2#,ZCA2#..ARL,EUR200307-200511

SUPER WHITE 2,040

sub87915-46020¥2,240

main87915-46020-A1iACA20,21,CLA2#,ZCA2#..EUR200307-200511

WHITE PEARL CS.,064

sub87915-46020¥2,240

main87915-46020-B2iACA2#,CLA2#,ZCA2#..ARL,EUR200307-200511

SILVER ME.,1D4

sub87915-46020¥2,240

main87915-46020-B3iACA2#,CLA2#,ZCA2#..ARL,EUR200307-200511

DK.GRAY MC.,1E0

sub87915-46020¥2,240

main87915-46020-C1iACA2#,CLA2#,ZCA2#..ARL,EUR200307-200511

BLACK,202

sub87915-46020¥2,240

main87915-46020-D3iACA2#,CLA2#,ZCA2#..ARL,EUR200307-200511

DK. RED M.M.,3Q3

sub87915-46020¥2,240

main87915-46020-E0iACA2#,CLA2#,ZCA2#..ARL,EUR200307-200511

BEIGE ME.,4R4

sub87915-46020¥2,240

main87915-46020-G1iACA2#,CLA2#,ZCA2#..ARL,EUR200307-200511

DARK GREEN MC.,6R4

sub87915-46020¥2,240

main87915-46020-G2iACA2#,CLA2#,ZCA2#..ARL,EUR200307-200511

LT.GREEN ME.,6T6

sub87915-46020¥2,240

main87915-46020-J2iACA2#,CLA2#,ZCA2#..ARL,EUR200307-200511

BLUE MC.,8M6

sub87915-46020¥2,240

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-42530iACA2#,CLA2#,ZCA2#..RHD¥20,000200005-200307

W(ELECTRIC REMOTE CONTROL MIRROR)

main87940-42550iACA2#,CLA2#,ZCA2#..RHD200005-200307

main87940-42560iACA2#,CLA2#,ZCA2#..LHD..(EUR,GEN)200005-200307

main87940-42570iACA2#,CLA2#,ZCA2#..LHD..(EUR,GEN)200005-200307

W(ELECTRIC REMOTE CONTROL MIRROR)

main87940-42580iACA2#,CLA2#,ZCA2#..RHD..EUR200005-200307

W(ELECTRIC REMOTE CONTROL MIRROR W/HEATER)

main87940-42590iACA2#,CLA2#,ZCA2#..LHD..EUR200005-200307

W(ELECTRIC REMOTE CONTROL MIRROR W/HEATER)

main87940-42600iACA2#..GCC200008-200307

main87940-42610iACA2#..GCC200008-200307

W(ELECTRIC REMOTE CONTROL MIRROR)

main87940-42670iACA2#,CLA2#,ZCA2#..RHD200307

sub87940-42700

main87940-42690iACA20,21,CLA2#,ZCA2#..LHD..(EUR,GEN)¥20,000200307

main87940-42700iACA20,21,CLA2#,ZCA2#..RHD..EUR200307

W(HEATER MIRROR)

main87940-42710iACA20,21,CLA2#,ZCA2#..LHD..EUR200307

W(HEATER MIRROR)

main87940-42720iACA20,21..GCC200307

87945COVER, OUTER MIRROR, LH

main87945-42010iACA2#,CLA2#,ZCA2#¥3,200200005-200212

UNPAINTED(BLACK)

main87945-42020-A0iACA2#,CLA2#,ZCA2#..ARL,EUR200005-200212

WHITE,056

sub87945-42020¥3,200

main87945-42020-B0iACA2#,CLA2#,ZCA2#..ARL,EUR200005-200212

SILVER ME.,1D4

sub87945-42020¥3,200

main87945-42020-C0iACA2#,CLA2#,ZCA2#..ARL,EUR200005-200212

BLACK,202

sub87945-42020¥3,200

main87945-42020-D0iACA2#,CLA2#,ZCA2#..ARL,EUR200005-200212

RED M.M.,3P1

sub87945-42020¥3,200

main87945-42020-F0iACA2#,CLA2#,ZCA2#..ARL,EUR200005-200212

CHAMPAGNE ME.,586

sub87945-42020¥3,200

main87945-42020-G0iACA2#,CLA2#,ZCA2#..ARL,EUR200005-200212

DK.GREEN M.M.,6S3

sub87945-42020¥3,200

main87945-42020-J0iACA2#,CLA2#,ZCA2#..ARL,EUR200005-200212

BLUE MC.,8M6

sub87945-42020¥3,200

main87945-42020-J1iACA2#,CLA2#,ZCA2#..ARL,EUR200005-200212

BLUE ME.,8P1

sub87945-42020¥3,200

main87945-44010iACA2#,CLA2#,ZCA2#¥3,200200212-200307

UNPAINTED(BLACK)

main87945-44020-A2iACA2#,CLA2#,ZCA2#..ARL,EUR200212-200307

WHITE,056

main87945-44020-B2iACA2#,CLA2#,ZCA2#..ARL,EUR200212-200307

SILVER ME.,1D4

main87945-44020-C0iACA2#,CLA2#,ZCA2#..ARL,EUR200212-200307

BLACK,202

main87945-44020-D3iACA2#,CLA2#,ZCA2#..ARL,EUR200212-200307

RED M. M.,3P1

main87945-44020-F1iACA2#,CLA2#,ZCA2#..ARL,EUR200212-200307

CHAMPAGNE ME.,586

main87945-44020-G1iACA2#,CLA2#,ZCA2#..ARL,EUR200212-200307

DK. GREEN M. M.,6S3

main87945-44020-J1iACA2#,CLA2#,ZCA2#..ARL,EUR200212-200307

BLUE MC.,8M6

main87945-44020-J2iACA2#,CLA2#,ZCA2#..ARL,EUR200212-200307

BLUE ME.,8P1

main87945-46010iACA2#,CLA2#,ZCA2#¥1,410200307-200511

UNPAINTED(BLACK)

main87945-46020-A0iACA2#,CLA2#,ZCA2#..ARL,EUR200307-200511

SUPER WHITE 2,040

sub87945-46020¥2,240

main87945-46020-A1iACA20,21,CLA2#,ZCA2#..EUR200307-200511

WHITE PEARL CS.,064

sub87945-46020¥2,240

main87945-46020-B2iACA2#,CLA2#,ZCA2#..ARL,EUR200307-200511

SILVER ME.,1D4

sub87945-46020¥2,240

main87945-46020-B3iACA2#,CLA2#,ZCA2#..ARL,EUR200307-200511

DK.GRAY MC.,1E0

sub87945-46020¥2,240

main87945-46020-C1iACA2#,CLA2#,ZCA2#..ARL,EUR200307-200511

BLACK,202

sub87945-46020¥2,240

main87945-46020-D3iACA2#,CLA2#,ZCA2#..ARL,EUR200307-200511

DK. RED M.M.,3Q3

sub87945-46020¥2,240

main87945-46020-E0iACA2#,CLA2#,ZCA2#..ARL,EUR200307-200511

BEIGE ME.,4R4

sub87945-46020¥2,240

main87945-46020-G1iACA2#,CLA2#,ZCA2#..ARL,EUR200307-200511

DARK GREEN MC.,6R4

sub87945-46020¥2,240

main87945-46020-G2iACA2#,CLA2#,ZCA2#..ARL,EUR200307-200511

LT.GREEN ME.,6T6

sub87945-46020¥2,240

main87945-46020-J2iACA2#,CLA2#,ZCA2#..ARL,EUR200307-200511

BLUE MC.,8M6

sub87945-46020¥2,240

9010506216

main90105-06216¥120

8 parts on this diagram · 2 diagrams in section
