Toyota RAV4 — METER

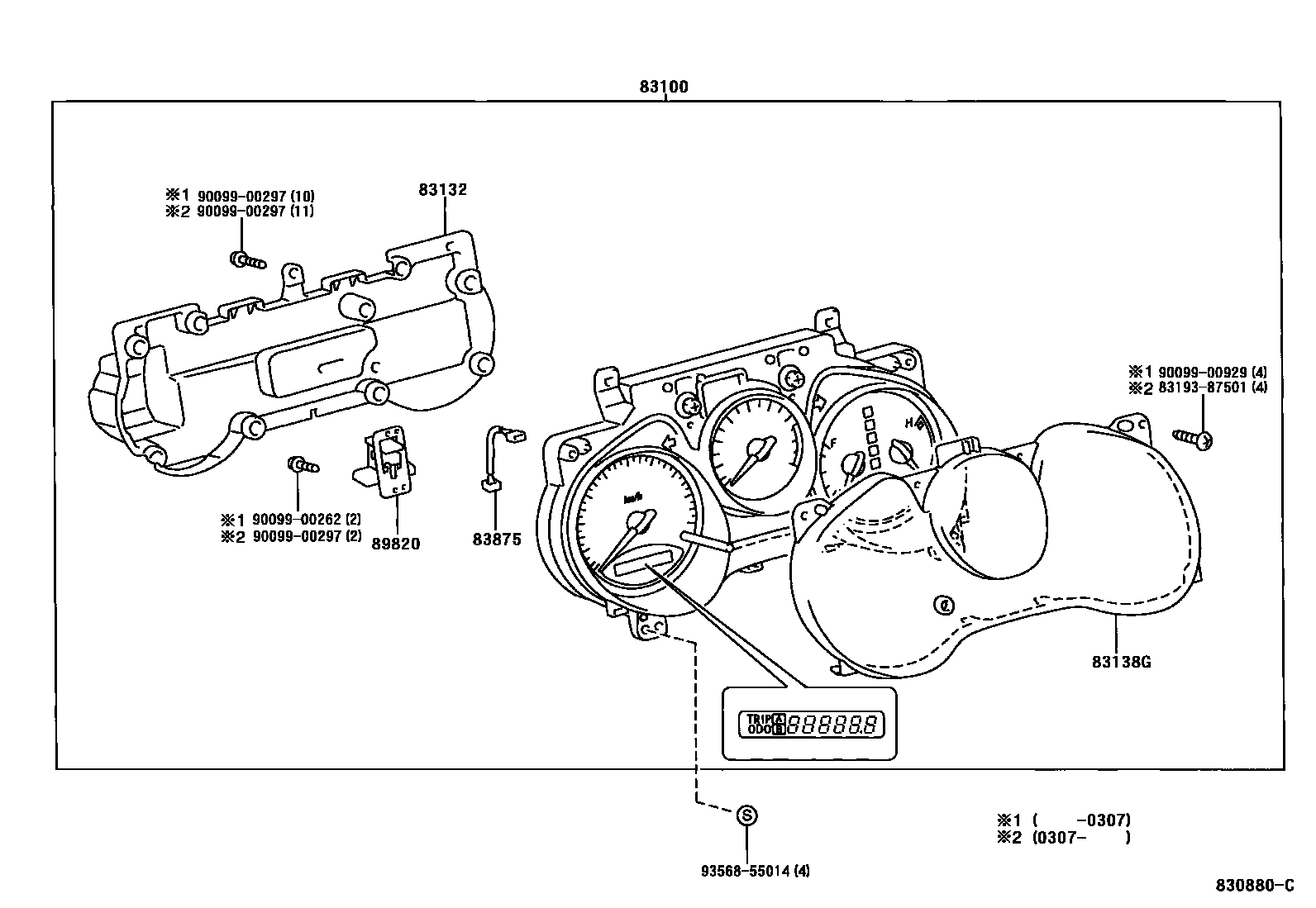

Parts diagram
83100METER ASSY, COMBINATION
main83800-42730i200307
KM/H
main83800-42780i200008-200208
KM/H
sub83800-42781
main83800-42781i200208-200307
KM/H
main83800-42790i200008-200208
KM/H
sub83800-42791
main83800-42791i200208-200307
KM/H
main83800-42800i200008-200208
MILE/H+KM/H
sub83800-42801
main83800-42801i200208-200307
MILE/H+KM/H
main83800-42810i200008-200208
MILE/H+KM/H
sub83800-42811
main83800-42811i200208-200307
MILE/H+KM/H
main83800-42820i200008-200208
W(WIDE WATER TEMPERATURE METER)
sub83800-42821
main83800-42821i200208-200307
W(WIDE WATER TEMPERATURE METER)
main83800-42830i200008-200208
W(WIDE WATER TEMPERATURE METER)
sub83800-42831
main83800-42831i200208-200307
W(WIDE WATER TEMPERATURE METER)
main83800-42840i200008-200208
SOUTH AFRICA SPEC
sub83800-42841
main83800-42841i200208-200307
SOUTH AFRICA SPEC
main83800-42850i200008-200208
SOUTH AFRICA SPEC
sub83800-42851
main83800-42851i200208-200307
SOUTH AFRICA SPEC
main83800-42860i200201-200208
SOUTH AFRICA SPEC
sub83800-42861
main83800-42860i200005-200208
KM/H
sub83800-42861
main83800-42861i200208-200307
KM/H
main83800-42870i200005-200208
KM/H
sub83800-42871
main83800-42871i200208-200307
KM/H
main83800-42880i200005-200208
MILE/H+KM/H
sub83800-42881
main83800-42881i200208-200307
MILE/H+KM/H
main83800-42890i200005-200208
MILE/H+KM/H
sub83800-42891
main83800-42891i200208-200307
MILE/H+KM/H
main83800-42A00i200307
MILE/H+KM/H
main83800-42A10i200307
MILE/H+KM/H
main83800-42A20i200307
KM/H
main83800-42A30i200307
KM/H
main83800-42A40i200307
MILE/H+KM/H
main83800-42A50i200307
MILE/H+KM/H
main83800-42A60i200307
KM/H
main83800-42A70i200307
MILE/H+KM/H
main83800-42A80i200307
main83800-42A90i200307
main83800-42B40i200307
main83800-42B50i200307
main83800-4A010i200005-200208
sub83800-4A011
main83800-4A011i200208-200307
main83800-4A020i200005-200208
sub83800-4A021
main83800-4A021i200208-200307
main83800-4A070i200008-200208
sub83800-4A071
main83800-4A071i200208-200307
main83800-4A080i200008-200208
sub83800-4A081
main83800-4A081i200208-200307
main83800-4A090i200105-200208
KM/H
sub83800-4A091
main83800-4A091i200208-200307
KM/H
main83800-4A100i200105-200208
MILE/H+KM/H
sub83800-4A101
main83800-4A101i200208-200307
MILE/H+KM/H
main83800-4A110i200307
KM/H
83132CASE, COMBINATION METER
main83821-42720i200307
main83821-42760i200005-200307
83138GGLASS, COMBINATION METER
main83852-42760i200307
main83852-42760i200005-200307
83875WIRE, COMBINATION METER, NO.1
main83875-42760i200005-200307
main83875-42760i200307
89820SENSOR ASSY, INCLINATION
main89820-35010i¥7,600200005-200307
main89820-35010i¥7,600200307-200511
8319387501
main83193-87501¥0
9009900262
main90099-00262
9009900297
main90099-00297
9009900929
main90099-00929
9356855014
main93568-55014¥70

10 parts on this diagram · 1 diagram in section
