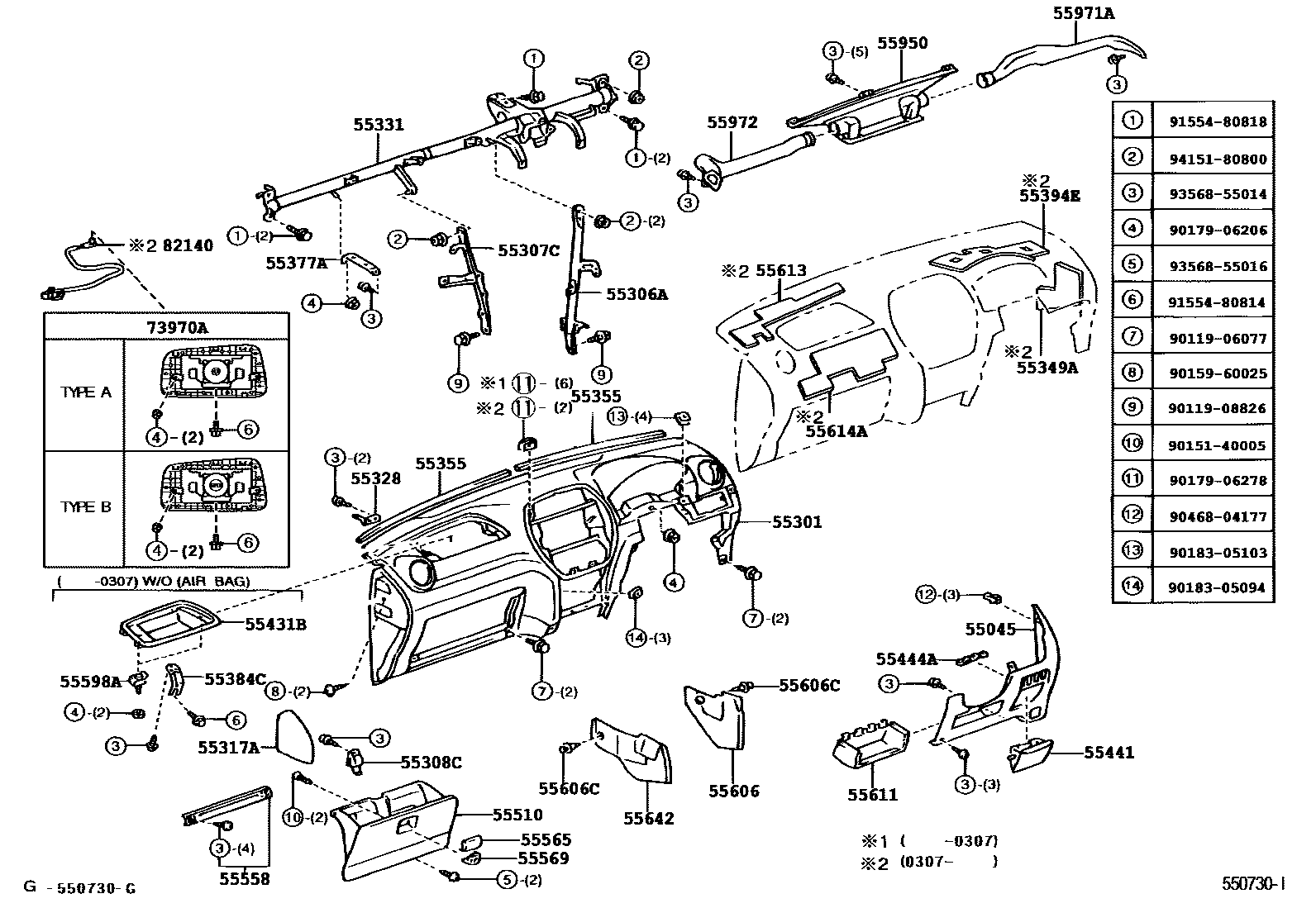

Toyota RAV4 — INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1 0004 1

55045PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER

main55432-42900-B0iACA21..ARL200005-200307

BLUE GRAY,TRIM1#,14,15

main55432-42900-B0iCLA2#..RHD;ACA21..RHD..GEN;ACA20..RHD..(ARL,GEN)200005-200307

BLUE GRAY,TRIM1#

main55432-42900-B0iCLA2#..RHD;ACA21..RHD..GEN;ACA20..RHD..(ARL,GEN)200005-200307

BLUE GRAY,TRIM14,15

main55432-42900-B1iACA2#,CLA2#,ZCA2#..RHD200307-200511

DK.GRAY,TRIM1#

main55432-42901-B0iACA2#,ZCA2#..LHD..(EUR,GCC)200005-200307

BLUE GRAY,TRIM1#,14,15

main55432-42901-B0iCLA2#..LHD;ACA2#..LHD..GEN200008-200307

BLUE GRAY,TRIM14,15

main55432-42901-B1iACA20,21,CLA2#,ZCA2#..LHD200307-200511

DK.GRAY,TRIM1#

main55432-42902iACA20,21,CLA2#,ZCA2#..LHD..EUR¥11,900200307-200511

W(AUTO AIR CONDITIONER)

55301PANEL SUB-ASSY, INSTRUMENT

main55311-42070-B0iACA21..ARL200005-200307

DK.GRAY,TRIM14,15

main55311-42070-B0iACA21..ARL200005-200307

DK.GRAY,TRIM1#

main55311-42080-B0iACA2#,CLA2#,ZCA2#..LHD200005-200307

DK.GRAY,TRIM14,15

main55311-42090-B0iACA21,22,23..RHD..(ARL,GEN)200307-200511

DK.GRAY,TRIM1#

main55311-42100-B0iACA20,21..LHD..(GCC,GEN)200307-200511

DK.GRAY,TRIM1#

main55311-42130-B0iACA20,21,CLA2#,ZCA2#..LHD..EUR200307-200511

W(AUTO AIR CONDITIONER),DK.GRAY,TRIM1#

sub55311-42220

main55311-42150-B0iACA20,21,CLA2#,ZCA2#..RHD..EUR200307-200511

DK.GRAY,TRIM1#

sub55311-42230¥39,900

main55311-42160-B0iACA20,21,CLA2#,ZCA2#..LHD..EUR200307-200511

DK.GRAY,TRIM1#

sub55311-42240

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-42060iACA2#,CLA2#,ZCA2#..RHD¥3,820200005-200307

main55306-42070iACA20,21,CLA2#,ZCA2#..LHD¥3,860200005-200307

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-42050iACA2#,CLA2#,ZCA2#..RHD¥2,110200005-200307

main55307-42060iACA2#,CLA2#,ZCA2#..LHD¥2,110200005-200307

55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER

main55308-42050iACA2#,CLA2#,ZCA2#¥510200005-200307

55317APANEL, INSTRUMENT SIDE, RH

main55317-42010-B0iACA21..ARL200005-200307

BLUE GRAY,TRIM1#

sub55317-42010¥2,030

main55317-42010-B0iACA21..ARL200005-200307

BLUE GRAY,TRIM14,15

sub55317-42010¥2,030

main55317-42010-B1iACA2#,CLA2#,ZCA2#..RHD200307-200511

DK.GRAY,TRIM1#

sub55317-42010¥2,030

main55317-42020-B0iACA2#,CLA2#,ZCA2#..LHD200005-200307

BLUE GRAY,TRIM14,15

sub55317-42020¥2,030

main55317-42020-B1iACA20,21,CLA2#,ZCA2#..LHD200307-200511

DK.GRAY,TRIM1#

sub55317-42020¥2,030

55328PIN, INSTRUMENT PANEL, NO.1

main55328-22040iACA2#,CLA2#,ZCA2#¥450200005-200311

main55328-51020iACA2#,CLA2#,ZCA2#¥460200311

sub55328-22040¥450

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-42130iACA2#,CLA2#,ZCA2#..RHD¥17,800200005-200108

main55330-42131iACA2#,CLA2#,ZCA2#..RHD¥17,800200108-200307

main55330-42140iACA2#,CLA2#,ZCA2#..LHD¥17,300200005-200307

main55330-42170iACA2#,CLA2#,ZCA2#..RHD¥18,400200307

main55330-42190iACA20,21,CLA2#,ZCA2#..LHD¥19,900200307

55349ACUSHION, INSTRUMENT PANEL

main55349-42010iACA2#,CLA2#,ZCA2#..RHD¥480200307

main55349-42020iACA20,21,CLA2#,ZCA2#..LHD¥480200307

55355CUSHION, INSTRUMENT PANEL, NO.1

main55355-42010iACA2#,CLA2#,ZCA2#¥900200005-200307

55377ABRACKET, INSTRUMENT PANEL MOUNTING, NO.2

main55377-42010iACA2#,CLA2#,ZCA2#¥910200005-200307

55384CBRACKET, FINISH PANEL MOUNTING, NO.4

main55384-42010iACA2#..GEN¥740200008-200307

55394ECUSHION, INSTRUMENT PANEL, LOWER NO.4

main55394-42010iACA2#,CLA2#,ZCA2#..RHD¥850200307

main55394-42020iACA20,21,CLA2#,ZCA2#..LHD¥850200307

55431BPANEL, INSTRUMENT PANEL FINISH, UPPER

main55431-42010-B0iACA2#..RHD..GEN200008-200307

DK.GRAY,TRIM14,15

main55431-42020-B0iACA2#..LHD..GEN200008-200307

DK.GRAY,TRIM14,15

55441BOX, INSTRUMENT PANEL

main55441-42010-B0iACA21..ARL200005-200307

BLUE GRAY,TRIM1#

sub55441-42010¥2,160

main55441-42010-B0iACA21..ARL200005-200307

BLUE GRAY,TRIM14,15

sub55441-42010¥2,160

main55441-42010-B1iACA2#,CLA2#,ZCA2#200307-200511

DK.GRAY,TRIM1#

sub55441-42010¥2,160

55444ASPRING, INSTRUMENT PANEL BOX

main55444-33030iACA2#,CLA2#,ZCA2#¥110200005-200307

55510DOOR ASSY, GLOVE COMPARTMENT

main55550-42030-B0iACA21..ARL200005-200307

BLUE GRAY,TRIM1#

sub55550-42030¥13,600

main55550-42030-B0iACA21..ARL200005-200307

BLUE GRAY,TRIM14,15

sub55550-42030¥13,600

main55550-42030-B1iACA2#,CLA2#,ZCA2#200307-200511

DK.GRAY,TRIM1#

sub55550-42030¥13,600

55558REINFORCEMENT, GLOVE COMPARTMENT DOOR

main55558-42020iACA2#,CLA2#,ZCA2#..ARL,EUR¥1,540200005-200511

55565HANDLE, GLOVE COMPARTMENT DOOR LOCK

main55565-22020-B4iACA21..ARL200005-200307

BLUE GRAY,TRIM1#

sub55565-22020¥140

sub55565-24010¥240

main55565-22020-B4iACA21..ARL200005-200307

BLUE GRAY,TRIM14,15

sub55565-22020¥140

sub55565-24010¥240

main55565-22020-P0iACA2#,CLA2#,ZCA2#200307-200511

DK.GRAY,TRIM1#

sub55565-22020¥140

sub55565-24010¥240

55569COVER, GLOVE COMPARTMENT DOOR LOCK

main55569-22030-B4iACA21..ARL200005-200307

BLUE GRAY,TRIM1#

sub55569-22030¥200

sub55569-24010¥320

main55569-22030-B4iACA21..ARL200005-200307

BLUE GRAY,TRIM14,15

sub55569-22030¥200

sub55569-24010¥320

main55569-22030-P0iACA2#,CLA2#,ZCA2#200307-200511

DK.GRAY,TRIM1#

sub55569-22030¥200

sub55569-24010¥320

55598ABRACKET, GLOVE COMPARTMENT DOOR HINGE

main55598-33010iACA2#..GEN¥370200008-200307

55606COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1

main55606-42010-B0iACA21..ARL200005-200108

BLUE GRAY,TRIM1#

sub55606-42011¥2,690

main55606-42010-B0iACA21..ARL200005-200108

BLUE GRAY,TRIM14,15

sub55606-42011¥2,690

main55606-42011-B0iACA21..RHD..(EUR,GEN);ACA20,CLA2#,ZCA2#..RHD200108-200307

BLUE GRAY,TRIM1#

main55606-42011-B0iACA21..ARL200108-200307

BLUE GRAY,TRIM14,15

main55606-42011-B1iACA2#,CLA2#,ZCA2#..RHD200307-200511

DK.GRAY,TRIM1#

main55606-42020-B0iACA2#,CLA2#,ZCA2#..LHD200005-200307

BLUE GRAY,TRIM14,15

sub55606-42020¥2,780

main55606-42020-B1iACA20,21,CLA2#,ZCA2#..LHD200307-200511

DK.GRAY,TRIM1#

sub55606-42020¥2,780

55606CCLIP(FOR INSTRUMENT PANEL UNDER COVER)

main90467-07121-B7iACA20,CLA2#,ZCA2#;ACA21..EUR,GCC,GEN200005-200307

BLUE GRAY,TRIM1#

sub90467-07121¥190

sub90467-07207¥130

main90467-07121-B7iACA21..ARL200005-200307

BLUE GRAY,TRIM14,15

sub90467-07121¥190

sub90467-07207¥130

main90467-07121-B9iACA2#,CLA2#,ZCA2#200307-200511

DK.GRAY,TRIM1#

sub90467-07121¥190

sub90467-07207¥130

55611TRAY, INSTRUMENT PANEL UNDER

main55611-42010-B0iACA21..ARL200005-200307

BLUE GRAY,TRIM14,15

sub55611-42010¥2,910

main55611-42010-B0iACA21..ARL200005-200307

BLUE GRAY,TRIM1#

sub55611-42010¥2,910

main55611-42010-B1iACA2#,CLA2#,ZCA2#..RHD200307-200511

DK.GRAY,TRIM1#

sub55611-42010¥2,910

main55611-42020-B0iACA2#,CLA2#,ZCA2#..LHD200005-200307

BLUE GRAY,TRIM14,15

sub55611-42020¥2,910

main55611-42020-B1iACA20,21,CLA2#,ZCA2#..LHD200307-200511

DK.GRAY,TRIM1#

sub55611-42020¥2,910

55613PAD, INSTRUMENT PANEL UNDER TRAY SILENCER, NO.2

main55613-42010iACA2#,CLA2#,ZCA2#..RHD¥390200307

main55613-42020iACA20,21,CLA2#,ZCA2#..LHD¥390200307

55614APAD, INSTRUMENT PANEL UNDER TRAY SILENCER, NO.3

main55614-42010iACA2#,CLA2#,ZCA2#..RHD¥550200307

main55614-42020iACA20,21,CLA2#,ZCA2#..LHD¥550200307

55642COVER, INSTRUMENT PANEL UNDER, NO.2

main55607-42010-B0iACA21..RHD..(EUR,GEN);ACA20,CLA2#,ZCA2#..RHD200005-200307

BLUE GRAY,TRIM1#

main55607-42010-B0iACA21..RHD..(EUR,GEN);ACA20,CLA2#,ZCA2#..RHD200005-200307

BLUE GRAY,TRIM14,15

main55607-42010-B1iACA2#,CLA2#,ZCA2#..RHD200307-200511

DK.GRAY,TRIM1#

main55607-42020-B0iACA2#,CLA2#,ZCA2#..LHD200005-200307

BLUE GRAY,TRIM14,15

sub55607-42020¥2,800

main55607-42020-B1iACA20,21,CLA2#,ZCA2#..LHD200307-200511

DK.GRAY,TRIM1#

sub55607-42020¥2,800

55950NOZZLE ASSY, DEFROSTER

main55950-42020iACA2#,CLA2#,ZCA2#¥4,630200005-200307

55971ADUCT, SIDE DEFROSTER NOZZLE, NO.1

main55971-42010iACA2#,CLA2#,ZCA2#..RHD¥1,850200005-200307

main55971-42020iACA2#,CLA2#,ZCA2#..LHD¥1,850200005-200307

55972DUCT, SIDE DEFROSTER NOZZLE, NO.2

main55972-42010iACA2#,CLA2#,ZCA2#..RHD¥2,270200005-200307

main55972-42020iACA2#,CLA2#,ZCA2#..LHD¥2,270200005-200307

73970AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER

main73970-42010-B0iACA21..ARL200005-200307

DK.GRAY,TRIM1#

main73970-42010-B0iACA21..ARL200005-200307

DK.GRAY,TRIM14,15

main73970-42020-B0iACA2#,CLA2#,ZCA2#..LHD200005-200307

DK.GRAY,TRIM14,15

main73970-42040-B0iACA2#..RHD200307-200511

DK.GRAY,TRIM1#,TYPE A:REFER ILLUST.

main73970-42050-B0iACA20,21..LHD200307-200511

DK.GRAY,TRIM1#,TYPE A:REFER ILLUST.

main73970-42060-B0iACA20,21,CLA2#,ZCA2#..LHD..EUR200307-200511

DK.GRAY,TRIM1#,TYPE B:REFER ILLUST.

sub73970-42060¥120,000

main73970-42070-B0iACA20,21,CLA2#,ZCA2#..RHD..EUR200307-200511

DK.GRAY,TRIM1#,TYPE B:REFER ILLUST.

82140WIRE ASSY, INSTRUMENT PANEL

main82140-42010iACA2#¥880200404

W(*80,ELECTRIC TYPE DRIVER SIDE & FRONT PASSENGER SIDE)

main82140-46010iACA2#¥870200307-200403

W(*80,ELECTRIC TYPE DRIVER SIDE & FRONT PASSENGER SIDE)

main82142-42030iACA20,21,CLA2#,ZCA2#..EUR¥1,460200307

9011906077

main90119-06077¥80

9011908826

main90119-08826¥90

9015140005

main90151-40005¥90

9015960025

main90159-60025¥200

9017906206

main90179-06206¥70

9017906278

main90179-06278¥100

9018305094

main90183-05094¥90

9018305103

main90183-05103¥90

9046804177

main90468-04177¥40

9155480814

main91554-80814¥140

9155480818

main91554-80818¥90

9356855014

main93568-55014¥70

9356855016

main93568-55016¥70

9415180800

main94151-80800¥80

46 parts on this diagram · 4 diagrams in section
