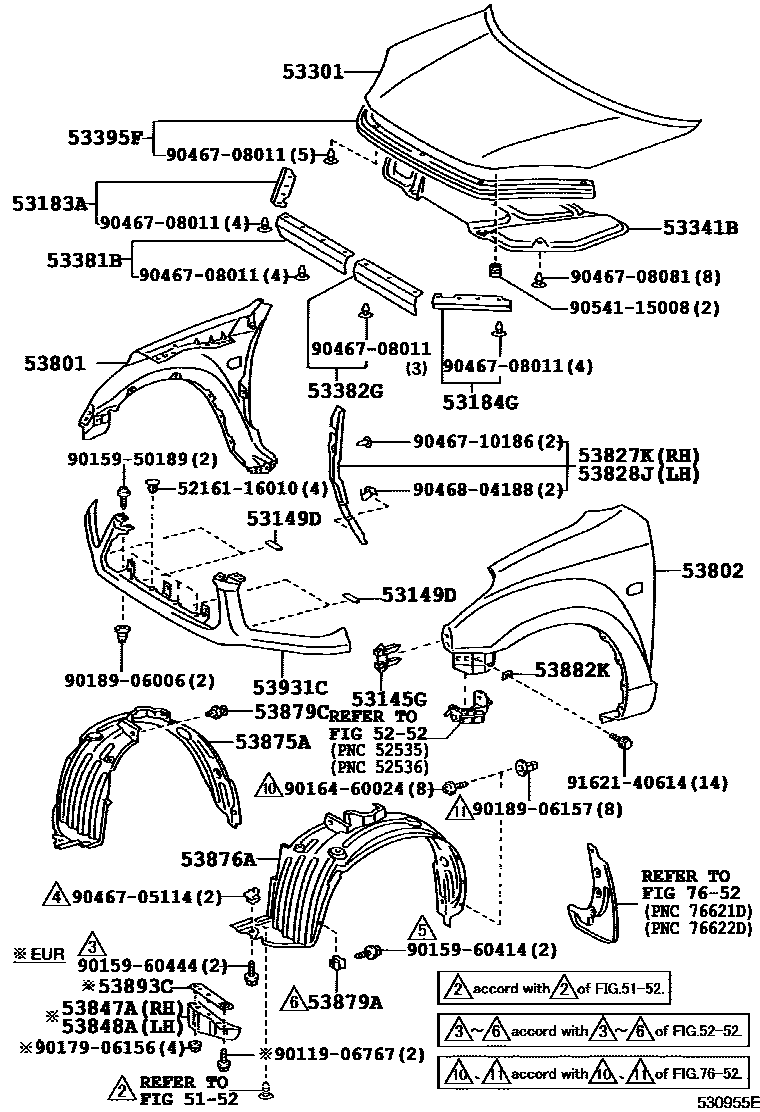

Toyota RAV4 — HOOD & FRONT FENDER

0001 1 0002 1 0003 1 0004 1 0005 1CV SPORT(AUSTRALIA)

5152

5252

53145GCLIP, RADIATOR GRILLE

main53145-42010iACA2#,CLA2#,ZCA2#¥370200005-200307

53149DPROTECTOR, RADIATOR GRILLE, NO.2

main53149-46010iACA2#,CLA2#,ZCA2#¥190200005-200307

53183ASEAL, HEADLAMP COVER, RH

main53183-42010iACA2#,CLA2#,ZCA2#¥1,020200005-200307

main53183-42020iACA2#,CLA2#,ZCA2#¥760200307

53184GSEAL, HEADLAMP COVER, LH

main53184-42010iACA2#,CLA2#,ZCA2#¥1,020200005-200307

main53184-42020iACA2#,CLA2#,ZCA2#¥760200307

53301HOOD SUB-ASSY

main53301-42030iACA2#,ZCA2#¥47,400200005-200511

main53301-42050iACA22,23¥47,400200503-200510

CV SPORT(AUSTRALIA)

main53301-42050iCLA2#¥47,400200105-200511

53341BINSULATOR, HOOD

main53341-42020iACA2#,ZCA2#¥7,400200005-200301

sub53341-42021¥7,400

main53341-42021iACA2#,ZCA2#¥7,400200301-200307

main53341-42040iCLA2#¥15,600200105-200301

sub53341-42041¥15,600

main53341-42041iCLA2#¥15,600200301-200307

main53341-42051iACA22,23¥16,600200503-200510

CV SPORT(AUSTRALIA)

53381BSEAL, HOOD TO RADIATOR SUPPORT, RH

main53381-42020iACA2#,CLA2#,ZCA2#¥870200005-200307

53382GSEAL, HOOD TO RADIATOR SUPPORT, LH

main53382-42010iACA2#,CLA2#,ZCA2#¥570200005-200307

53395FSEAL, HOOD TO RADIATOR GRILLE

main53395-42010iACA2#,CLA2#,ZCA2#¥2,130200005-200307

main53395-42011iACA2#,CLA2#,ZCA2#¥3,240200307

53801FENDER SUB-ASSY, FRONT RH

main53811-42150iACA2#,CLA2#,ZCA2#¥40,600200005-200307

main53811-42160iACA2#,CLA2#¥40,600200005-200307

W(OVER FENDER)

main53811-42190iACA2#,CLA2#,ZCA2#¥40,600200307-200511

main53811-42200iACA2#,CLA2#,ZCA2#¥40,600200307-200511

W(OVER FENDER)

53802FENDER SUB-ASSY, FRONT LH

main53812-42140iACA2#,CLA2#,ZCA2#¥40,600200005-200307

main53812-42150iACA2#,CLA2#¥40,600200005-200307

W(OVER FENDER)

main53812-42200iACA2#,CLA2#,ZCA2#¥40,600200307-200511

main53812-42210iACA2#,CLA2#,ZCA2#¥40,600200307-200511

W(OVER FENDER)

53827KPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-42030iACA2#,CLA2#,ZCA2#¥1,780200005-200111

sub53827-42031¥1,790

main53827-42031iACA2#,CLA2#,ZCA2#¥1,790200111-200307

53828JPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-42040iACA2#,CLA2#,ZCA2#¥1,780200005-200111

sub53828-42041¥1,790

main53828-42041iACA2#,CLA2#,ZCA2#¥1,790200111-200307

53847AEXTENSION, FRONT WHEEL OPENING OR ARCH MOULDING, RH

main53847-42010iACA2#,CLA2#,ZCA2#..EUR¥3,610200005-200307

sub53847-42011¥3,620

main53847-42011iACA20,21,CLA2#,ZCA2#..EUR¥3,620200307

53848AEXTENSION, FRONT WHEEL OPENING OR ARCH MOULDING, LH

main53848-42010iACA2#,CLA2#,ZCA2#..EUR¥3,610200005-200307

sub53848-42011¥3,620

main53848-42011iACA20,21,CLA2#,ZCA2#..EUR¥3,620200307

53875ALINER, FRONT FENDER, RH

main53875-42050iACA2#,ZCA2#¥5,800200005-200102

sub53875-42051¥5,900

sub90467-10005¥90

main53875-42051iACA2#,CLA2#,ZCA2#¥5,900200102-200307

53876ALINER, FRONT FENDER, LH

main53876-42050iACA2#,ZCA2#¥5,800200005-200102

sub53876-42051¥5,900

sub90467-10005¥90

main53876-42051iACA2#,CLA2#,ZCA2#¥5,900200102-200307

53879ARETAINER, FRONT FENDER LINER

main53879-44010iACA2#,CLA2#,ZCA2#¥260200005-200307

53879CRETAINER, FRONT FENDER LINER

main53879-60010iACA2#,CLA2#,ZCA2#¥360200005-200307

53882KSEAL, FRONT FENDER

main53882-16030iACA2#,CLA2#,ZCA2#¥60200005-200511

53893CRETAINER, FRONT FENDER SPLASH SHIELD, FRONT

main53893-42010iACA2#,CLA2#,ZCA2#..EUR¥840200005-200307

53931CPANEL, FRONT END

main53931-42020iACA2#,CLA2#,ZCA2#¥16,200200005-200307

main53931-42030iACA2#,CLA2#,ZCA2#¥14,500200307-200511

7652

5216116010CUSHION, REAR BUMPER GUARD, NO.1

main52161-16010¥120

9011906767

main90119-06767¥60

9015950189

main90159-50189¥120

9015960414

main90159-60414¥120

9015960444

main90159-60444¥100

9016460024

main90164-60024¥120

9017906156

main90179-06156¥140

9018906006

main90189-06006¥100

9018906157

main90189-06157¥80

9046705114

main90467-05114¥200

9046708011

main90467-08011¥100

9046708081

main90467-08081¥100

9046710186

main90467-10186¥120

9046804188

main90468-04188¥130

9054115008

main90541-15008¥350

9162140614

main91621-40614¥80

41 parts on this diagram · 5 diagrams in section
