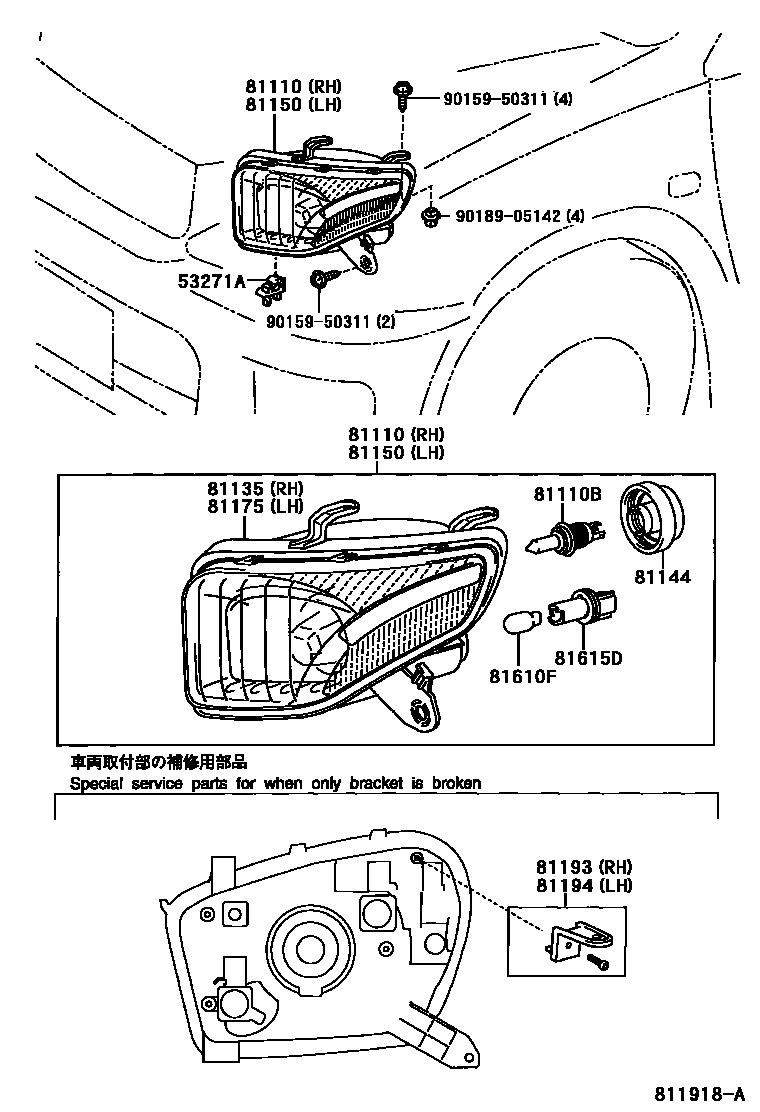

Toyota RAV4 — HEADLAMP

0001 1 0002 1

53271ABRACKET, HEADLAMP MOUNTING

main53271-44010iACA2#,CLA2#,ZCA2#¥630200307

main53271-44010iACA2#,CLA2#,ZCA2#¥630200005-200307

81110HEADLAMP ASSY, RH

main81110-42150iACA2#,CLA2#,ZCA2#..RHD¥31,300200005-200108

main81110-42150iACA2#,CLA2#,ZCA2#..RHD..(EUR,GEN)¥31,300200108-200307

main81110-42160iACA2#,CLA2#,ZCA2#..LHD200005-200307

RH TRAFFIC SPEC

main81110-42170iACA2#,CLA2#,ZCA2#..RHD..EUR200005-200307

W(LEVELING)

main81110-42180iACA2#,CLA2#,ZCA2#..RHD..EUR200005-200307

W(LEVELING)

main81110-42180iACA2#,CLA2#,ZCA2#..LHD..EUR200005-200307

RH TRAFFIC SPEC & W(LEVELING)

main81110-42200iACA2#..ARL200108-200307

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13055iACA2#,CLA2#,ZCA2#¥2,000200005-200307

12V 60/55W,HALOGEN

sub90981-13058¥2,000

main90981-13058iACA2#,CLA2#,ZCA2#¥2,000200307-200511

12V 60/55W,HALOGEN

81135UNIT ASSY, HEADLAMP, RH

main81105-42230iACA2#,CLA2#,ZCA2#..RHD¥26,800200307

main81105-42250iACA20,21,CLA2#,ZCA2#..RHD..EUR200307

RH TRAFFIC SPEC

main81105-42260iACA20,21,CLA2#,ZCA2#..RHD..EUR200307

W(LEVELING)

main81105-42270iACA20,21,CLA2#,ZCA2#..RHD..EUR200307

RH TRAFFIC SPEC & W(LEVELING)

main81105-42270iACA20,21,CLA2#,ZCA2#..LHD..(EUR,GCC)200307

W(LEVELING)

main81130-42150iACA2#,CLA2#,ZCA2#..RHD¥27,800200005-200108

main81130-42150iACA2#,CLA2#,ZCA2#..RHD..(EUR,GEN)¥27,800200108-200307

main81130-42160iACA2#,CLA2#,ZCA2#..RHD..EUR¥27,800200005-200307

RH TRAFFIC SPEC

main81130-42170iACA2#,CLA2#,ZCA2#..RHD..EUR200005-200307

W(LEVELING)

main81130-42180iACA2#,CLA2#,ZCA2#..RHD..EUR200005-200307

RH TRAFFIC SPEC & W(LEVELING)

main81130-42180iACA2#,CLA2#,ZCA2#..LHD..EUR200005-200307

W(LEVELING)

main81130-42200iACA2#..ARL200108-200307

81144COVER, HEADLAMP, NO.1

main81139-37110iACA2#,CLA2#,ZCA2#..EUR,GCC,GEN¥870200108-200307

main81139-37110iACA2#,CLA2#,ZCA2#¥870200005-200108

main81139-37110iACA2#,CLA2#,ZCA2#¥870200307-200308

main81139-42200iACA2#..ARL¥1,020200108-200307

main81139-52010iACA2#,CLA2#,ZCA2#¥740200309

81150HEADLAMP ASSY, LH

main81150-42150iACA2#,CLA2#,ZCA2#..RHD..(EUR,GEN)¥31,300200108-200307

main81150-42150iACA2#,CLA2#,ZCA2#..RHD¥31,300200005-200108

main81150-42160iACA2#,CLA2#,ZCA2#..RHD..EUR200005-200307

RH TRAFFIC SPEC

sub81170-42160¥27,800

main81150-42170iACA2#,CLA2#,ZCA2#..RHD..EUR200005-200307

W(LEVELING)

sub81170-42170

main81150-42180iACA2#,CLA2#,ZCA2#..LHD..EUR200005-200307

RH TRAFFIC SPEC & W(LEVELING)

sub81170-42180

main81150-42180iACA2#,CLA2#,ZCA2#..RHD..EUR200005-200307

W(LEVELING)

sub81170-42180

main81150-42200iACA2#..ARL200108-200307

81175UNIT ASSY, HEADLAMP, LH

main81106-42230iACA2#,CLA2#,ZCA2#..RHD¥26,800200307

main81106-42250iACA20,21,CLA2#,ZCA2#..RHD..EUR200307

RH TRAFFIC SPEC

main81106-42260iACA20,21,CLA2#,ZCA2#..RHD..EUR200307

W(LEVELING)

main81106-42270iACA20,21,CLA2#,ZCA2#..LHD..(EUR,GCC)200307

RH TRAFFIC SPEC & W(LEVELING)

main81106-42270iACA20,21,CLA2#,ZCA2#..LHD..(EUR,GCC)200307

W(LEVELING)

main81170-42150iACA2#,CLA2#,ZCA2#..RHD¥27,800200005-200108

main81170-42150iACA2#,CLA2#,ZCA2#..RHD..(EUR,GEN)¥27,800200108-200307

main81170-42160iACA2#,CLA2#,ZCA2#..RHD..EUR¥27,800200005-200307

RH TRAFFIC SPEC

main81170-42170iACA2#,CLA2#,ZCA2#..RHD..EUR200005-200307

W(LEVELING)

main81170-42180iACA2#,CLA2#,ZCA2#..RHD..EUR200005-200307

RH TRAFFIC SPEC & W(LEVELING)

main81170-42180iACA2#,CLA2#,ZCA2#..LHD..EUR200005-200307

W(LEVELING)

main81170-42200iACA2#..ARL200108-200307

81193RETAINER, HEADLAMP PROTECTOR, UPPER RH

main81193-42020iACA20..ARL;ACA21,ZCA2#;ACA20..ATM..EUR;ACA20..LHD..MTM¥700200005-200008

main81193-42020iACA2#,CLA2#,ZCA2#¥700200008-200307

main81193-42020iACA2#,CLA2#,ZCA2#¥700200307

81194RETAINER, HEADLAMP PROTECTOR, UPPER LH

main81194-42020iACA20..ARL;ACA21,ZCA2#;ACA20..ATM..EUR;ACA20..LHD..MTM¥700200005-200008

main81194-42020iACA2#,CLA2#,ZCA2#¥700200008-200307

main81194-42020iACA2#,CLA2#,ZCA2#¥700200307

81610FBULB(FOR CLEARANCE LAMP)

main99132-12050iACA2#,CLA2#,ZCA2#¥110200005-200307

12V 5W

main99132-12050iACA2#,CLA2#,ZCA2#¥110200307

12V 5W

81615DSOCKET, CLEARANCE LAMP

main81615-12590iACA2#,CLA2#,ZCA2#¥780200005-200307

main81615-12590iACA2#,CLA2#,ZCA2#¥780200307

9015950311

main90159-50311¥70

9018905142

main90189-05142¥70

13 parts on this diagram · 2 diagrams in section
