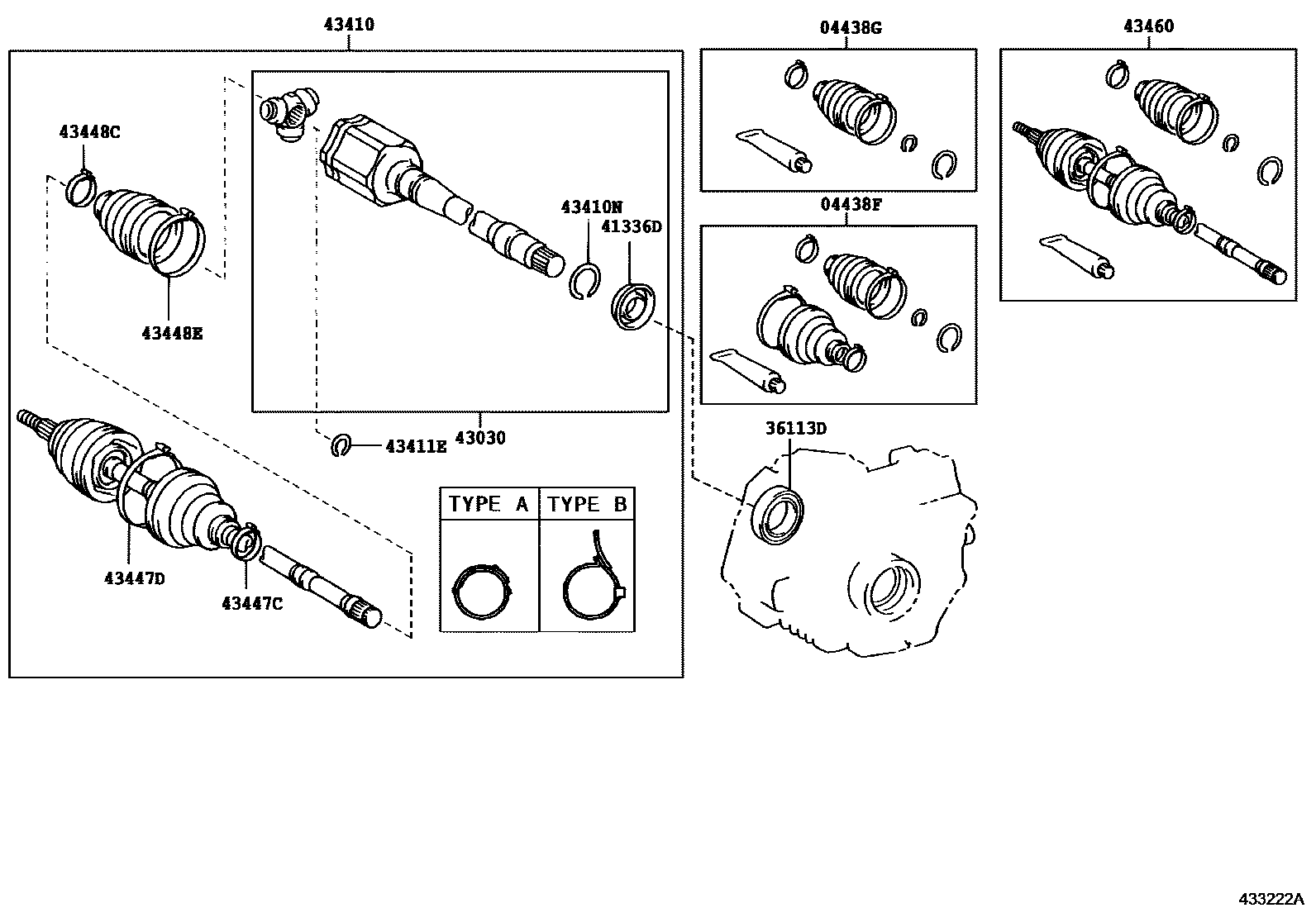

Toyota RAV4 — FRONT DRIVE SHAFT

0001 1RH 0002 1LH 0003 1RH 0004 1LH

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04427-42050iACA2#,CLA2#¥10,800200503

sub04427-42051¥10,800

main04427-42060iZCA2#¥10,800200503

main04438-42080iACA2#,CLA2#¥10,800200005-200207

sub04438-42081¥10,800

main04438-42081iACA2#,CLA2#¥10,800200207-200503

sub04428-42090¥10,800

main04438-42100iZCA2#¥10,800200005-200207

sub04438-42101

main04438-42102iZCA2#¥10,800200207-200503

sub04438-42103¥10,800

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-42040iACA2#,CLA2#¥6,700200503

sub04438-58030¥6,700

main04438-42070iACA2#,CLA2#¥6,700200005-200207

sub04438-42071¥6,700

main04438-42071iACA2#,CLA2#¥6,700200207-200503

sub04437-42040¥6,700

main04438-42090iZCA2#¥6,700200005-200207

sub04438-42091¥6,700

main04438-42091iZCA2#¥6,700200207-200503

sub04438-42190¥6,700

main04438-42180iZCA2#¥5,500200503

36113DSEAL, OIL (FOR TRANSFER CASE RH)

main90311-34021iACA2#,CLA2#¥230200005-200511

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-20050iZCA2#¥430200005-200307

main41336-21010iACA2#,CLA2#¥430200005-200307

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43030-42020iACA2#,CLA2#¥32,500200005-200207

sub43030-42021¥32,700

main43030-42021iACA2#,CLA2#¥32,700200208-200307

main43030-42030iZCA2#¥32,500200005-200207

sub43030-42031¥32,700

main43030-42031iZCA2#¥32,700200208-200307

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-42060iACA2#¥82,900200005-200307

W(ABS)

main43410-42070iACA2#¥82,900200005-200307

main43410-42100iZCA2#¥79,600200005-200307

W(ABS)

main43410-42110iZCA2#¥79,400200005-200307

sub43410-42100¥79,600

main43410-42120iCLA2#¥82,900200105-200307

W(ABS)

main43410-42130iCLA2#¥82,700200105-200307

sub43410-42120¥82,900

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main90520-33008iZCA2#¥110200005-200307

main90521-26004iACA2#,CLA2#¥100200005-200307

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main43425-28010iACA2#,CLA2#,ZCA2#¥40200005-200307

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-20040iACA2#,CLA2#,ZCA2#¥320200005-200307

sub42345-42100¥220

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-28020iACA2#,CLA2#,ZCA2#¥510200005-200307

sub42345-42090¥340

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-42010iACA2#,CLA2#,ZCA2#¥200200204-200307

TYPE A:REFER TO ILLUSTRATION

main90949-01559iACA2#,CLA2#,ZCA2#¥320200204-200307

TYPE B:REFER TO ILLUSTRATION

main90949-01559iACA2#,CLA2#,ZCA2#¥320200005-200204

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-12160iACA2#,CLA2#,ZCA2#¥300200203-200307

main90949-01076iACA2#,CLA2#,ZCA2#¥380200005-200203

sub42345-12160¥300

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-49065iACA2#¥51,800200005-200101

W(ABS)

sub43460-49165¥51,800

main43460-49075iACA2#¥51,800200005-200207

sub43460-49076¥51,800

main43460-49076iACA2#¥51,800200207-200307

main43460-49085iZCA2#¥51,800200005-200207

sub43460-49086¥51,800

main43460-49086iZCA2#¥51,800200207-200307

sub43470-29636¥48,000

main43460-49105iCLA2#¥47,300200105-200207

W(ABS)

sub43460-49106¥47,300

main43460-49106iCLA2#¥47,300200207-200503

W(ABS)

sub43460-49355¥48,900

main43460-49115iCLA2#¥47,300200105-200207

sub43460-49116¥47,300

main43460-49116iCLA2#¥47,300200207-200307

sub43460-49106¥47,300

main43460-49165iACA2#¥51,800200101-200207

W(ABS)

sub43460-49166¥49,400

main43460-49167iACA22,23¥49,500200207-200503

W(ABS)

main43460-49325iACA2#¥48,000200503

main43460-49335iACA2#¥48,000200503

W(ABS)

main43460-49355iCLA2#¥48,900200503

main43470-29635iZCA2#¥48,000200005-200207

W(ABS)

sub43470-29636¥48,000

main43470-29636iZCA2#¥48,000200207-200503

W(ABS)

sub43470-80064¥52,200

main43470-80075iZCA2#¥46,700200503

sub43470-80068¥51,100
