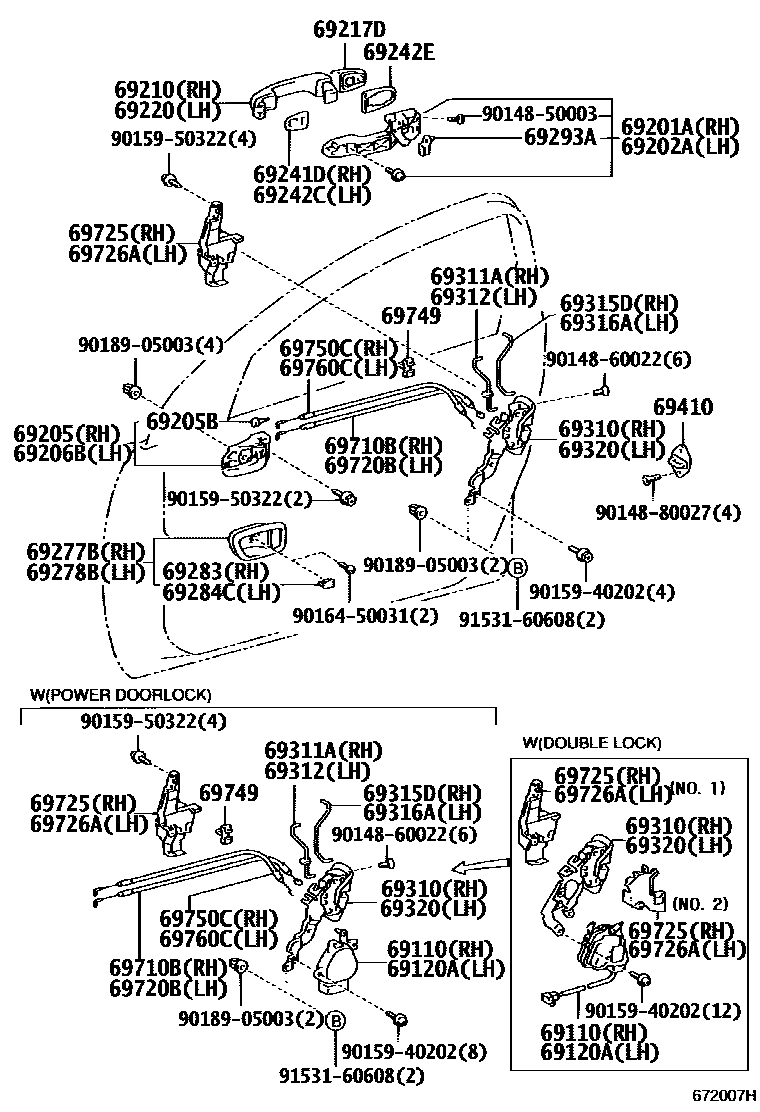

Toyota RAV4 — FRONT DOOR LOCK & HANDLE
69110ACTUATOR ASSY, FRONT DOOR LOCK, RH
W(DOUBLE-LOCK)
W(DOUBLE-LOCK)
W(DOUBLE-LOCK)
W(DOUBLE-LOCK)
69120AACTUATOR ASSY, FRONT DOOR LOCK, LH
W(DOUBLE-LOCK)
W(DOUBLE-LOCK)
W(DOUBLE-LOCK)
W(DOUBLE-LOCK)
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
W(KEY LESS ENTRY)
W(KEY LESS ENTRY)
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
W(KEY LESS ENTRY)
W(KEY LESS ENTRY)
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
BLUE GRAY,TRIM1#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
SUPER WHITE 2,040
WHITE,056
WHITE PEARL CS.,064
SILVER ME.,1D4
SILVER ME.,1D4
BLACK,202
BLACK,202
RED M.M.,3P1
BEIGE ME.,4R4
CHAMPAGNE ME.,586
DARK GREEN MC.,6R4
DK.GREEN M.M.,6S3
LT.GREEN ME.,6T6
BLUE MC.,8M6
BLUE MC.,8M6
BLUE ME.,8P1
DK.GRAY MC.,1E0
DK. RED M.M.,3Q3
NO PAINT REQ.
NO PAINT REQ.
69217DCOVER, FRONT DOOR OUTSIDE HANDLE
BLACK MATERIAL
BLACK MATERIAL
WHITE PEARL CS.,064
SUPER WHITE 2,040
CHAMPAGNE ME.,586
DK.GREEN M.M.,6S3
DARK GREEN MC.,6R4
LT.GREEN ME.,6T6
DK.GRAY MC.,1E0
DK. RED M.M.,3Q3
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
SUPER WHITE 2,040
WHITE,056
WHITE PEARL CS.,064
SILVER ME.,1D4
SILVER ME.,1D4
BLACK,202
BLACK,202
RED M.M.,3P1
BEIGE ME.,4R4
CHAMPAGNE ME.,586
DARK GREEN MC.,6R4
DK.GREEN M.M.,6S3
LT.GREEN ME.,6T6
BLUE MC.,8M6
BLUE MC.,8M6
BLUE ME.,8P1
DK.GRAY MC.,1E0
DK. RED M.M.,3Q3
NO PAINT REQ.
NO PAINT REQ.
69241DPAD, FRONT DOOR OUTSIDE HANDLE, RH
69242CPAD, FRONT DOOR OUTSIDE HANDLE, LH
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH
69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH
BLUE GRAY,TRIM1#
69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH
69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH
69293ASNAP, FRONT DOOR OUTSIDE HANDLE
RH
RH
LH
LH
69310LOCK ASSY, FRONT DOOR, RH
W(MANUAL DOOR LOCK)
W(MANUAL DOOR LOCK)
W(POWER DOOR LOCK)
W(POWER DOOR LOCK)
W(POWER DOOR LOCK)
W(POWER DOOR LOCK)
W(DOUBLE-LOCK)
W(DOUBLE-LOCK)
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69315DLINK, FRONT DOOR OUTSIDE LOCKING, RH
69316ALINK, FRONT DOOR OUTSIDE LOCKING, LH
69320LOCK ASSY, FRONT DOOR, LH
W(MANUAL DOOR LOCK)
W(MANUAL DOOR LOCK)
W(DOUBLE-LOCK)
W(DOUBLE-LOCK)
W(POWER DOOR LOCK)
W(POWER DOOR LOCK)
W(POWER DOOR LOCK)
W(POWER DOOR LOCK)
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
69725PROTECTOR, FRONT DOOR INSIDE LOCKING LINK, RH
NO.1:REFER ILLUST.
W(DOUBLE-LOCK)
W(DOUBLE-LOCK),NO.2
NO.2:REFER ILLUST.
NO.1:REFER ILLUST.
W(DOUBLE-LOCK)
69726APROTECTER, FRONT DOOR INSIDE LOCKING LINK, LH
NO.1:REFER ILLUST.
W(DOUBLE-LOCK)
NO.2:REFER ILLUST.
W(DOUBLE-LOCK),NO.2
W(DOUBLE-LOCK)
NO.1:REFER ILLUST.
69749CLAMP, FRONT DOOR LOCK LINK
69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
W(DOUBLE-LOCK)
W(DOUBLE-LOCK)
W(DOUBLE-LOCK)
W(DOUBLE-LOCK)
69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH
W(DOUBLE-LOCK)
W(DOUBLE-LOCK)
W(DOUBLE-LOCK)
W(DOUBLE-LOCK)
9014850003
9014860022
9014880027
9015940202
9015950322
9016450031
9018905003
9153160608
40 parts on this diagram · 1 diagram in section
