Toyota RAV4 — FRONT AXLE HUB

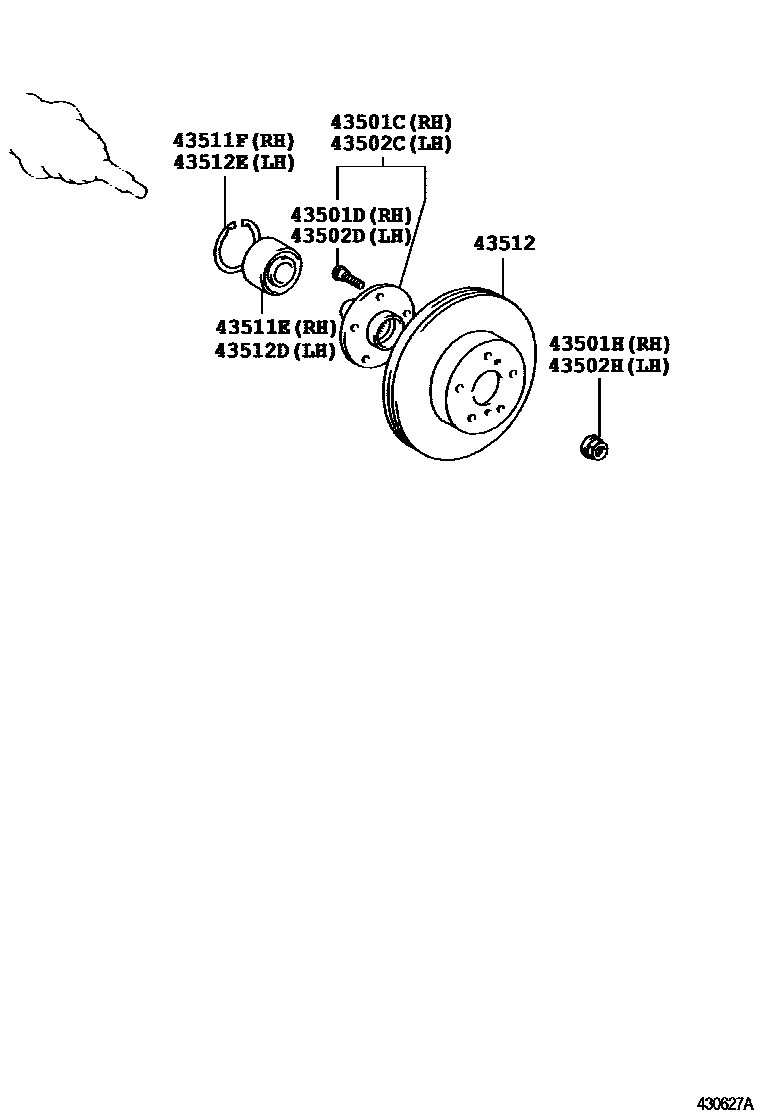

Parts diagram

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-42020i¥7,800200005-200307

main43502-42020i¥7,800200307

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02070i¥390200005-200307

sub90942-02049¥240

main90942-02070i¥390200307

sub90942-02049¥240

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001i¥220200005-200307

main90177-22001i¥220200307

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-42020i¥7,800200005-200307

main43502-42020i¥7,800200307

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02070i¥390200005-200307

sub90942-02049¥240

main90942-02070i¥390200307

sub90942-02049¥240

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001i¥220200005-200307

main90177-22001i¥220200307

43511EBEARING (FOR FRONT AXLE HUB RH)

main90369-43009i¥7,300200005-200307

main90369-43009i¥7,300200307

43511FRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90521-88001i¥230200005-200307

main90521-88001i¥230200307

43512DISC, FRONT

main43512-42030i¥13,800200005-200307

sub43512-42031¥13,800

main43512-42030i¥13,800200307-200407

sub43512-42031¥13,800

main43512-42031i¥13,800200408-200511

sub43512-42032¥13,800

43512DBEARING (FOR FRONT AXLE HUB LH)

main90369-43009i¥7,300200005-200307

main90369-43009i¥7,300200307

43512ERING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90521-88001i¥230200005-200307

main90521-88001i¥230200307

11 parts on this diagram · 1 diagram in section
