Toyota RAV4 — ENGINE OVERHAUL GASKET KIT

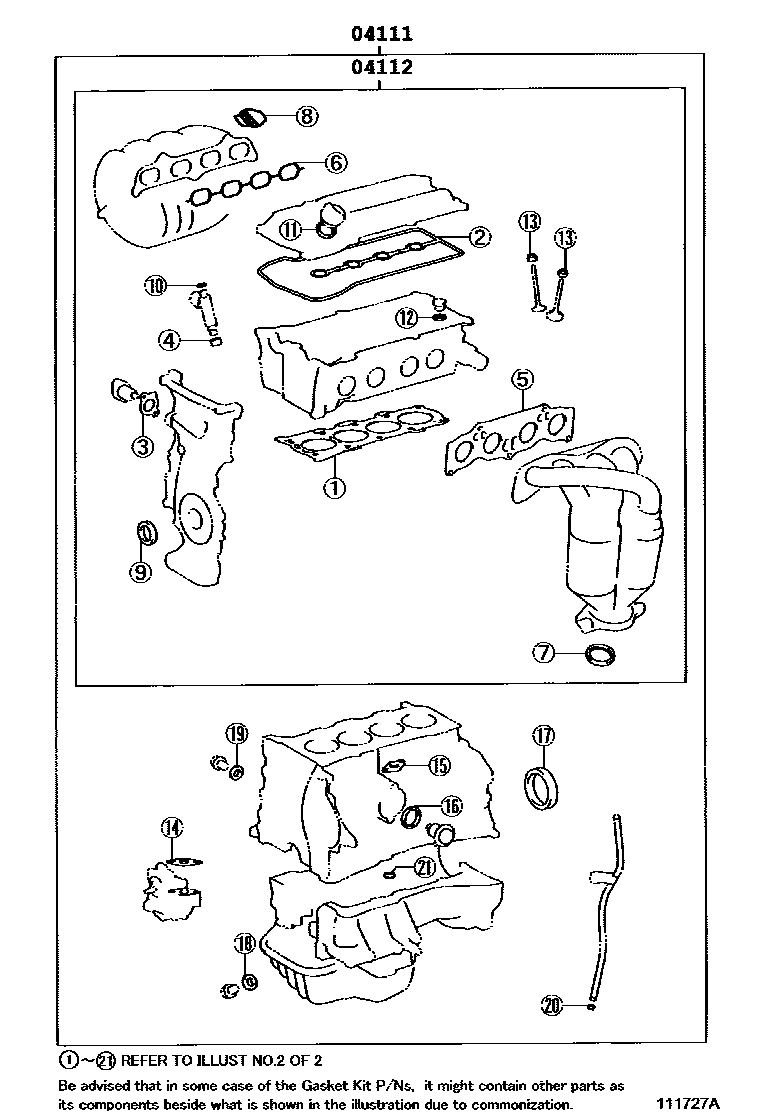

Parts diagram
04111GASKET KIT, ENGINE OVERHAUL
main04111-22110i¥37,100200005-200206
sub04111-22111¥37,100
main04111-22111i¥37,100200206-200302
sub04111-22112¥36,900
main04111-22112i¥36,900200302-200404
main04111-22650i¥37,000200404
main04111-27080i¥26,800200105-200301
sub04111-27081¥26,900
main04111-27081i¥26,900200301-200404
main04111-27160i¥27,000200404
main04111-28070i¥39,100200005-200104
sub04111-28071¥38,900
main04111-28071i¥38,900200104-200211
sub04111-28072¥38,900
main04111-28072i¥38,900200211-200212
sub04111-28073¥38,900
main04111-28073i¥38,900200212-200304
sub04111-28074¥38,900
main04111-28074i¥38,900200304-200404
main04111-28180i¥38,900200307-200404
main04111-28590i¥38,900200404-200508
sub04111-28591
main04111-28591i200508-200511
main04111-28600i¥41,700200404-200508
sub04111-28601
main04111-28601i200508-200511
sub04111-28602
04112GASKET KIT, ENGINE VALVE GRIND
main04112-22110i¥24,600200005-200206
sub04112-22111¥24,600
main04112-22111i¥24,600200206-200302
sub04112-22112¥24,400
main04112-22112i¥24,400200302-200404
main04112-22590i¥24,600200404
main04112-27070i¥13,000200105-200301
sub04112-27071¥13,000
main04112-27071i¥13,000200301-200404
main04112-27150i¥13,000200404
main04112-28070i¥25,300200005-200104
sub04112-28071¥25,300
main04112-28071i¥25,300200104-200211
sub04112-28072¥25,300
main04112-28072i¥25,300200211-200212
sub04112-28073¥25,300
main04112-28073i¥25,300200212-200304
sub04112-28074¥25,300
main04112-28074i¥25,300200304-200404
main04112-28180i¥25,300200307-200404
main04112-28250i¥27,500200404-200508
sub04112-28251
main04112-28251i200508-200511
sub04112-28252
main04112-28520i¥25,500200404-200508
sub04112-28521¥25,500
main04112-28521i¥25,500200508-200511

2 parts on this diagram · 12 diagrams in section
