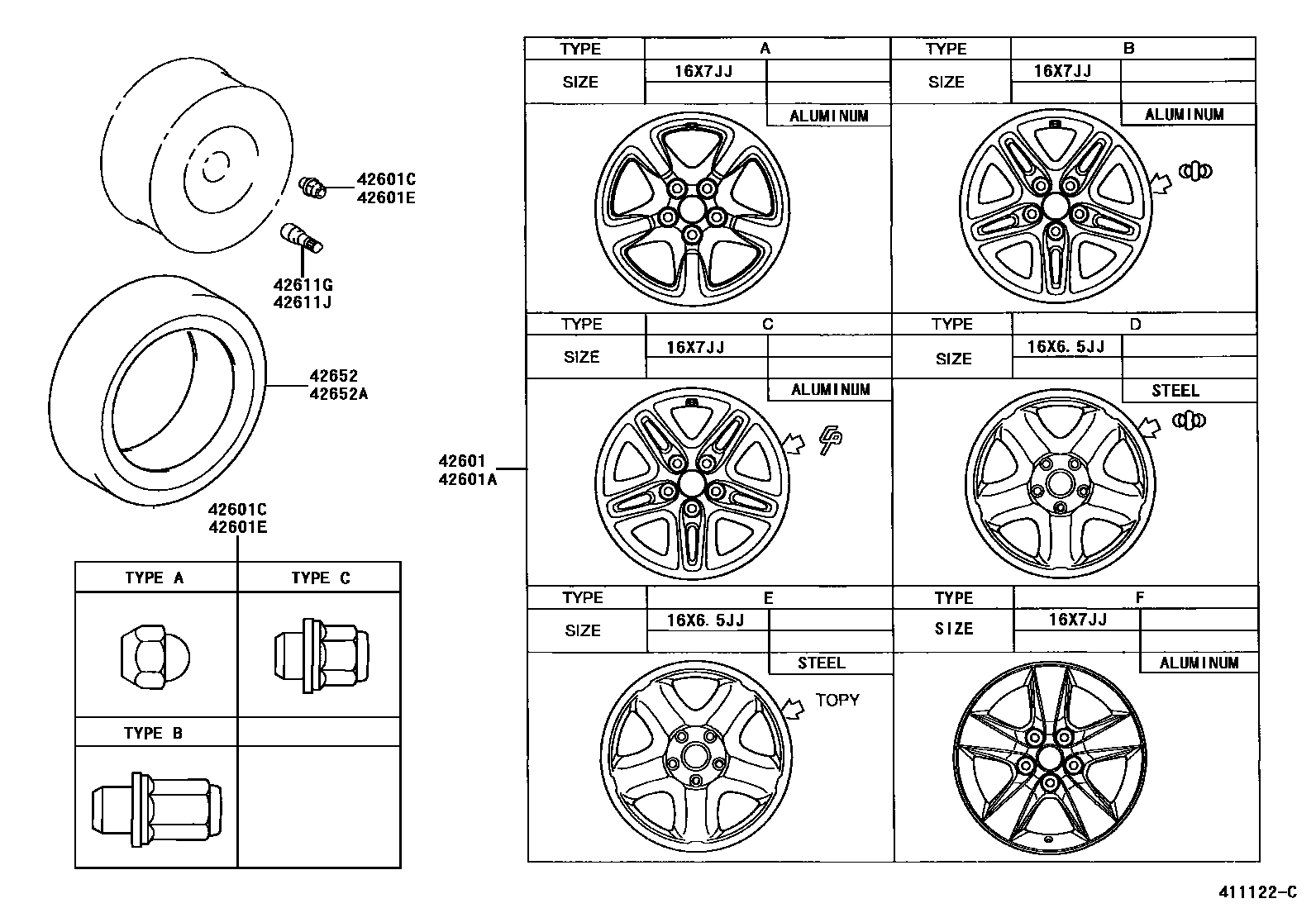

Toyota RAV4 — DISC WHEEL & WHEEL CAP
42601WHEEL, DISC
16X7JJ,TYPE C:REFER TO ILLUSTRATION
16X6.5JJ,TYPE D:REFER TO ILLUSTRATION
16X6.5JJ,TYPE D:REFER TO ILLUSTRATION
16X6.5JJ,TYPE E:REFER TO ILLUSTRATION
16X6.5JJ,TYPE E:REFER TO ILLUSTRATION
16X6.5JJ,TYPE E:REFER TO ILLUSTRATION
16X7JJ,TYPE B:REFER TO ILLUSTRATION
16X7JJ,TYPE A:REFER TO ILLUSTRATION
16X7JJ,TYPE F:REFER ILLUST.
16X7JJ,TYPE G:REFER TO ILLUSTRATION
16X6.5JJ,TYPE D:REFER ILLUST.
42601AWHEEL, DISC (FOR SPARE)
16X7JJ,TYPE C:REFER TO ILLUSTRATION
16X6.5JJ,TYPE D:REFER TO ILLUSTRATION
16X6.5JJ,TYPE D:REFER TO ILLUSTRATION
16X6.5JJ,TYPE E:REFER ILLUST.
16X6.5JJ,TYPE E:REFER TO ILLUSTRATION
16X7JJ,TYPE B:REFER TO ILLUSTRATION
16X7JJ,TYPE A:REFER TO ILLUSTRATION
16X7JJ,TYPE F:REFER TO ILLUSTRATION
16X7JJ,TYPE G:REFER TO ILLUSTRATION
16X6.5JJ,TYPE D:REFER ILLUST.
42601CNUT, HUB (FOR AXLE)
TYPE A:REFER TO ILLUSTRATION
TYPE C:REFER ILLUST.
TYPE B:REFER TO ILLUSTRATION
TYPE A:REFER ILLUST.
TYPE A:REFER TO ILLUSTRATION
42601ENUT, HUB(FOR SPARE WHEEL)
TYPE A:REFER TO ILLUSTRATION
TYPE C:REFER ILLUST.
TYPE B:REFER TO ILLUSTRATION
TYPE A:REFER TO ILLUSTRATION
TYPE A:REFER ILLUST.
42611GVALVE (FOR TUBELESS TIRE)
42611JVALVE (FOR TUBELESS TIRE SPARE)
42652TIRE
215/70R16 99H,*B/S
215/70R16 99H,*B/S
215/70R16 99H,*B/S
235/60R16 100H,*T/Y
235/60R16 100H,*T/Y
235/60R16 100H
235/60R16 100H,*B/S
215/70R16 99H,*D/L
215-70R16 99H,*T/Y
215/70R16 99H,*D/L
215/70R16 99H,*T/Y
235/60R16 100H,*T/Y
235/60R16 100H,*T/Y
42652ATIRE (FOR SPARE)
215/70R16 99H,*B/S
215/70R16 99H,*B/S
215/70R16 99H,*B/S
235/60R16 100H,*T/Y
235/60R16 100H,*T/Y
235/60R16 100H
235/60R16 100H,*B/S
215/70R16 99H,*D/L
215-70R16 99H,*T/Y
215/70R16 99H,*D/L
215/70R16 99H,*T/Y
235/60R16 100H,*T/Y
235/60R16 100H,*T/Y
