Toyota RAV4 — CRUISE CONTROL (AUTO DRIVE)

84632SWITCH, CRUISE CONTROL MAIN

main84632-34010iACA2#,CLA2#..ARL,EUR¥8,200200307-200409

sub84632-34011¥4,960

main84632-34011iACA2#,CLA2#..ARL,EUR¥4,960200409

84633WIRE, CRUISE CONTROL SWITCH

main84633-42010iACA2#..ARL,EUR¥2,790200307

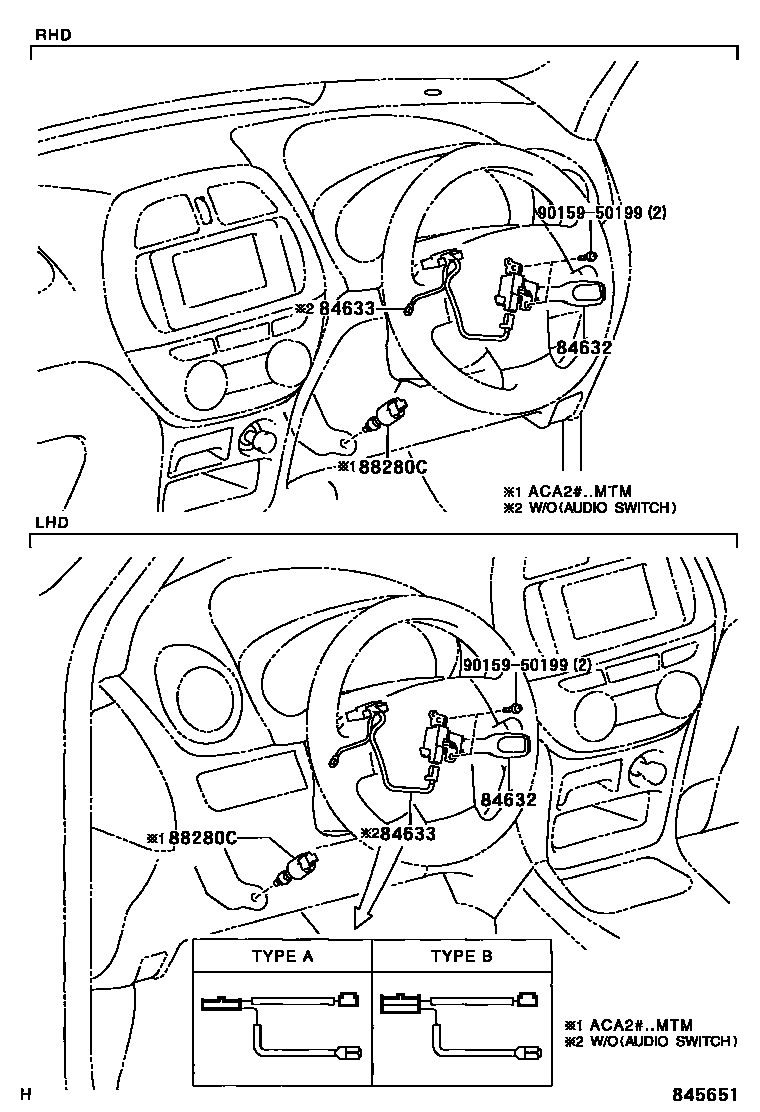

TYPE A:REFER TO ILLUSTRATION

main84633-64010iACA20,21,CLA2#..EUR¥1,940200307

TYPE B:REFER TO ILLUSTRATION

88280CSWITCH ASSY, CLUTCH

main88280-14030iACA2#..MTM..(ARL,EUR)¥1,060200307-200511

9015950199

main90159-50199¥70

4 parts on this diagram · 1 diagram in section
