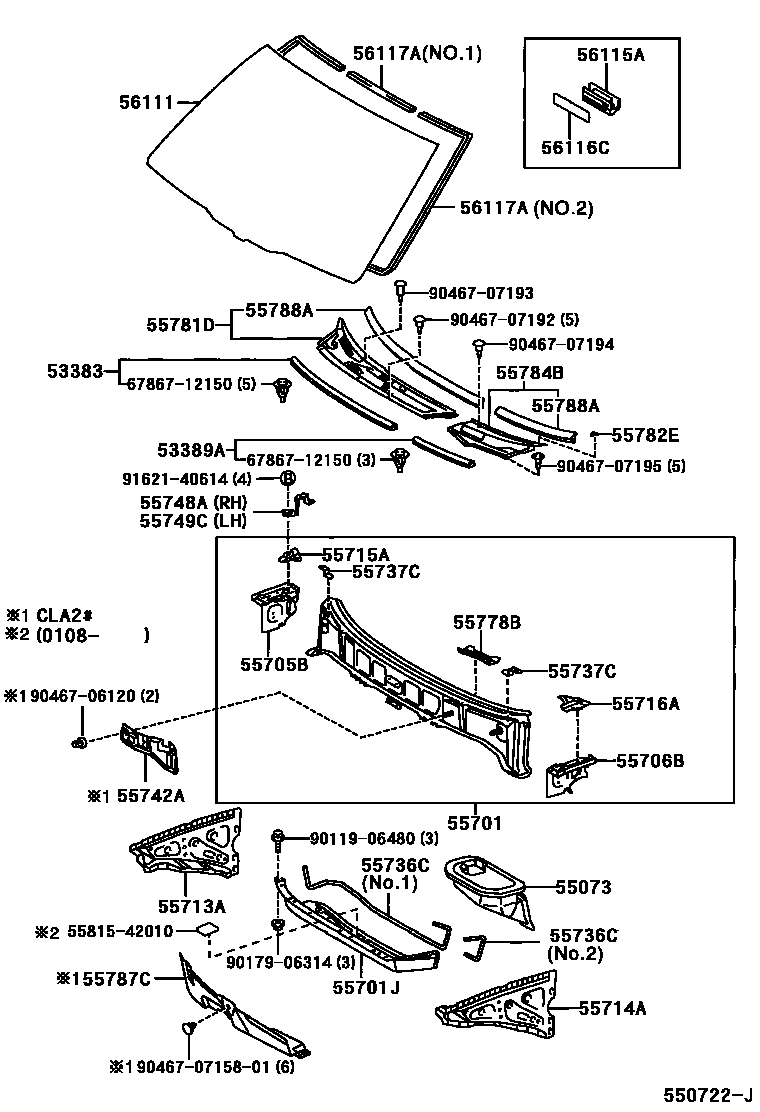

Toyota RAV4 — COWL PANEL & WINDSHIELD GLASS

0001 1 0002 1 0003 1 0004 1

53383SEAL, HOOD TO COWL TOP

main53383-42020iACA2#,CLA2#,ZCA2#¥900200005-200307

53389ASEAL, HOOD TO COWL TOP, NO.2

main53389-42010iACA2#,CLA2#,ZCA2#¥540200005-200307

main53389-42011iACA2#,CLA2#,ZCA2#¥550200307

55073NOZZLE SUB-ASSY, COWL PANEL WATER EXTRACT

main55073-42010iACA2#,CLA2#,ZCA2#..RHD¥1,790200005-200307

main55073-42020iACA20,21,CLA2#,ZCA2#..LHD¥1,790200005-200307

55701PANEL SUB-ASSY, COWL

main55700-42340iACA2#,ZCA2#..RHD..MTM¥33,000200005-200511

main55700-42350iACA2#..RHD..ATM¥33,000200005-200511

main55700-42360iACA20,21,ZCA2#..LHD..MTM..(EUR,GEN)¥33,000200005-200511

main55700-42370iACA2#..LHD..ATM..(EUR,GEN)¥33,000200005-200511

main55700-42380iCLA2#..RHD¥33,000200105-200511

main55700-42390iCLA2#..LHD¥33,000200105-200511

main55700-42400iCLA2#..RHD¥33,000200105-200511

W(INDENTIFICATION NUMBER PLATE)

main55700-42420iACA20,21,ZCA2#..RHD..MTM..EUR¥33,000200005-200511

W(INDENTIFICATION NUMBER PLATE)

main55700-42430iACA20,21..RHD..ATM..EUR¥33,000200005-200511

W(INDENTIFICATION NUMBER PLATE)

main55700-42440iACA2#..MTM..GCC¥33,000200008-200511

main55700-42450iACA2#..ATM..GCC¥33,000200008-200511

main55700-42450iACA20,21..LHD..ATM..EUR¥33,000200501-200511

W(INDENTIFICATION NUMBER PLATE)

55701JPANEL SUB-ASSY, COWL TOP, OUTER

main55701-42320iACA2#,ZCA2#..RHD¥8,900200005-200106

sub55701-42321¥8,800

main55701-42321iACA2#,ZCA2#..RHD¥8,800200106-200307

main55701-42330iACA2#,ZCA2#..LHD¥8,900200005-200106

sub55701-42331¥8,800

main55701-42331iACA20,21,ZCA2#..LHD¥8,800200106-200307

main55701-42340iCLA2#..RHD¥8,900200105-200106

sub55701-42341¥8,800

main55701-42341iCLA2#..RHD¥8,800200106-200307

main55701-42350iCLA2#..LHD¥8,900200105-200106

sub55701-42351¥8,800

main55701-42351iCLA2#..LHD¥8,800200106-200307

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-42040iACA2#,CLA2#,ZCA2#¥2,300200005-200307

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-42030iACA2#,CLA2#,ZCA2#¥2,300200005-200307

55713APANEL, COWL TOP SIDE, RH

main55713-42040iACA2#,CLA2#,ZCA2#¥6,400200005-200511

55714APANEL, COWL TOP SIDE, LH

main55714-42030iACA2#,CLA2#,ZCA2#¥6,300200005-200511

55715ABRACE, COWL TOP TO APRON, RH

main55715-42020iACA2#,CLA2#,ZCA2#¥480200005-200307

55716ABRACE, COWL TOP TO APRON, LH

main55716-42020iACA2#,CLA2#,ZCA2#¥480200005-200307

55736CSEAL, WATER GUARD PLATE

main55736-42010iACA2#,CLA2#,ZCA2#¥1,010200005-200307

NO.1:REFER TO ILLUSTRATION

main55736-42020iACA2#,CLA2#,ZCA2#¥300200005-200307

NO.2:REFER TO ILLUSTRATION

55737CBRACKET, COWL TOP OUTER PANEL, NO.3

main55733-42010iACA2#,CLA2#,ZCA2#¥310200005-200307

LH

main55737-42010iACA2#,CLA2#,ZCA2#¥310200005-200307

RH

55742ASHEET, COWL TOP INSULATOR

main55742-42010iCLA2#..RHD¥2,130200105-200307

main55742-42020iCLA2#..LHD¥2,130200105-200307

55748ABRACE, COWL TOP INNER TO PILLAR

main55748-42010iACA2#,CLA2#,ZCA2#¥450200005-200511

55749CBRACE, COWL TOP INNER TO PILLAR, LH

main55749-42010iACA2#,CLA2#,ZCA2#¥450200005-200511

55778BBRACKET, IDENTIFICATION NUMBER PLATE

main55778-42020iACA2#,ZCA2#..RHD..MTM..EUR¥450200005-200307

55781DLOUVER, COWL TOP VENTILATOR, RH

main55781-42050iACA2#,CLA2#,ZCA2#..RHD¥11,900200005-200307

55782EPROTECTOR, COWL TOP VENTILATOR LOUVER

main55782-42050iACA2#,CLA2#,ZCA2#¥140200005-200312

55784BLOUVER, COWL TOP VENTILATOR, CENTER NO.2

main55784-42010iACA2#,CLA2#,ZCA2#..RHD¥5,700200005-200307

sub55784-42011¥3,720

sub53389-42011¥550

sub53396-42010¥550

sub55786-42030¥2,470

main55784-42011iACA2#,CLA2#,ZCA2#..RHD¥3,720200307

main55784-42020iACA2#,CLA2#,ZCA2#..LHD¥5,700200005-200307

sub55784-42021¥3,720

sub53389-42011¥550

sub53396-42010¥550

sub55786-42040¥2,470

main55784-42021iACA20,21,CLA2#,ZCA2#..LHD¥3,720200307

55787CINSULATOR, COWL TOP PANEL, NO.1

main55787-42020iCLA2#..RHD¥5,700200105-200307

main55787-42030iCLA2#..LHD¥5,700200105-200307

55788APROTECTOR, COWL TOP VENTILATOR LOUVER

main55788-42020iACA20,21,CLA2#,ZCA2#..RHD¥940200005-200309

RH

sub55789-42021¥940

main55788-42021iACA2#,CLA2#,ZCA2#..RHD¥940200309

RH

sub55788-30130¥670

main55788-42030iACA2#,CLA2#,ZCA2#..LHD¥940200005-200309

RH

sub55788-42031¥940

main55788-42031iACA20,21,CLA2#,ZCA2#..LHD¥940200309

RH

sub55788-30130¥670

main55789-42020iACA20,21,CLA2#,ZCA2#..RHD¥510200005-200309

LH

sub55789-42021¥940

main55789-42021iACA2#,CLA2#,ZCA2#..RHD¥940200309

LH

sub55788-30130¥670

main55789-42030iACA20,21,CLA2#,ZCA2#..LHD¥510200005-200309

LH

sub55789-42031¥510

main55789-42031iACA20,21,CLA2#,ZCA2#..LHD¥510200309

LH

56111GLASS, WINDSHIELD

main56101-42010iACA2#,CLA2#,ZCA2#..ARL,EUR,GEN¥0200005-200307

*LAM,T=4.76,GREEN

main56101-42020iACA2#..GCC;ACA2#,CLA2#,ZCA2#..RHD..EUR¥0200008-200307

*LAM,T=4.76,GREEN,W(INDENTIFICATION NUMBER PLATE)

main56101-42040iACA2#,CLA2#,ZCA2#..ARL,EUR,GEN¥0200307

*LAM,T=4.76,GREEN

main56101-42050iACA20,21..GCC;ACA20,21,CLA2#,ZCA2#..RHD..EUR¥91,700200307

*LAM,T=4.76,GREEN,W(INDENTIFICATION NUMBER PLATE)

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30100iACA2#,CLA2#,ZCA2#¥130200005-200307

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050iACA2#,CLA2#,ZCA2#¥120200005-200307

56117ADAM, WINDOW GLASS ADHESIVE

main56117-30280iACA2#,CLA2#,ZCA2#¥700200005-200307

*D,L=712,NO.1:REFER TO ILLUSTRATION

sub64813-52010¥820

main56117-42030iACA2#,CLA2#,ZCA2#¥610200307-200511

*D,L=712,NO.1:REFER TO ILLUSTRATION

sub56117-30280¥700

main56117-44030iACA2#,CLA2#,ZCA2#¥1,410200005-200511

*D,L=3204,NO.2:REFER TO ILLUSTRATION

5581542010ROD, COWL VENTILATOR CONTROL

main55815-42010¥140

6786712150CLIP, DOOR WEATHERSTRIP

main67867-12150¥100

9011906480

main90119-06480¥80

9017906314

main90179-06314¥70

9046706120

main90467-06120¥180

904670715801

main90467-0715801

9046707192

main90467-07192¥130

9046707193

main90467-07193¥130

9046707194

main90467-07194¥130

9046707195

main90467-07195¥130

9162140614

main91621-40614¥80

37 parts on this diagram · 4 diagrams in section
