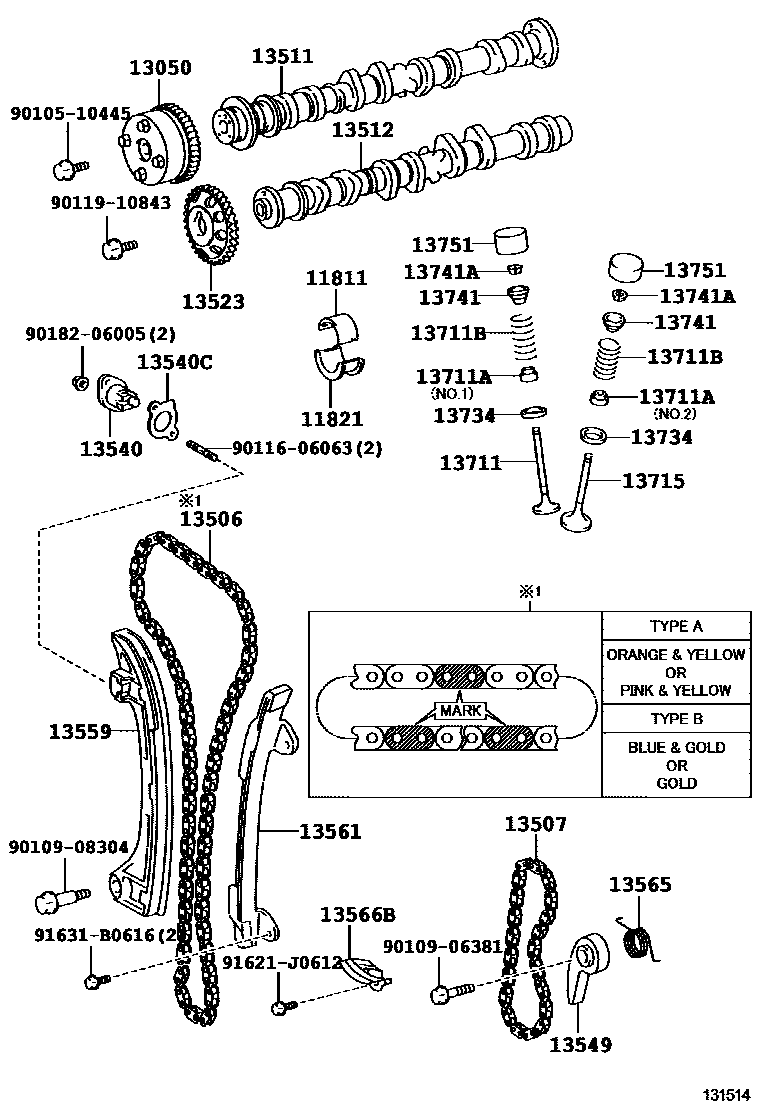

Toyota RAV4 — CAMSHAFT & VALVE
11811BEARING, CAMSHAFT, NO.1
MARK 1,MARK 1
MARK 1
MARK 2,MARK 2
MARK 2
MARK 3,MARK 3
MARK 3
11821BEARING, CAMSHAFT, NO.2
MARK 1
MARK 1,MARK 1
MARK 2
MARK 2,MARK 2
MARK 3
MARK 3,MARK 3
13050GEAR ASSY, CAMSHAFT TIMING
13506CHAIN SUB-ASSY
13507CHAIN SUB-ASSY, NO.2
13511CAMSHAFT
(J)
13512CAMSHAFT, NO.2
(J)
13523GEAR OR SPROCKET, CAMSHAFT TIMING
NO.2
NO.1
13540TENSIONER ASSY, CHAIN, NO.1
13540CGASKET(FOR CHAIN TENSIONER)
13549PLATE, CHAIN TENSIONER
13559SLIPPER, CHAIN TENSIONER
13561DAMPER, CHAIN VIBRATION, NO.1
13565SPRING, CHAIN DAMPER
13566BGUIDE, TIMING CHAIN
13711VALVE, INTAKE
13711ASEAL OR RING, O(FOR VALVE STEM OIL)
NO.1
NO.2
NO.2
NO.1
NO.2
13711BSPRING, COMPRESSION(FOR INNER)
13715VALVE, EXHAUST
13734SEAT, VALVE SPRING
13741RETAINER, VALVE SPRING
13741ALOCK, VALVE SPRING RETAINER
13751LIFTER, VALVE
T=5.06
T=5.08
T=5.10
T=5.12
T=5.14
T=5.16
T=5.18
T=5.20
T=5.22
T=5.24
T=5.26
T=5.28
T=5.30
T=5.32
T=5.34
T=5.36
T=5.38
T=5.40
T=5.42
T=5.44
T=5.46
T=5.48
T=5.50
T=5.52
T=5.54
T=5.56
T=5.58
T=5.60
T=5.62
T=5.64
T=5.66
T=5.68
T=5.70
T=5.72
T=5.74
9010510445
9010906381
9010908304
9011606063
9011910843
9018206005
91621J0612
91631B0616
31 parts on this diagram · 4 diagrams in section
