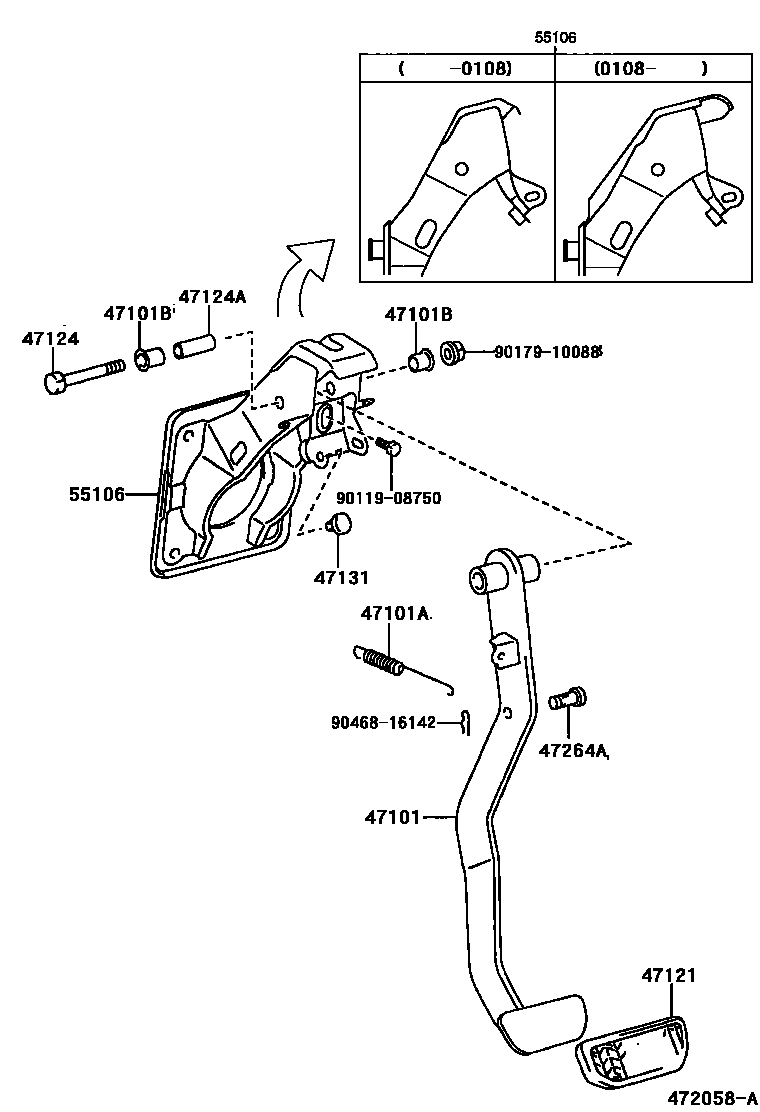

Toyota RAV4 — BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-42070iACA2#,CLA2#,ZCA2#..RHD..MTM¥2,380200005-200307

main47101-42080iACA2#..RHD..ATM¥2,570200005-200307

main47101-42090iACA20,21,CLA2#,ZCA2#..LHD..MTM¥2,620200005-200307

main47101-42100iACA2#..LHD..ATM¥2,790200005-200307

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90905-07031iACA2#,CLA2#,ZCA2#¥330200005-200208

main90905-07039iACA2#,CLA2#,ZCA2#¥320200208-200307

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015iACA2#,CLA2#,ZCA2#¥120200005-200307

47121PAD, BRAKE PEDAL

main31321-52010iACA2#,CLA2#,ZCA2#..MTM¥200200005-200307

main47121-52010iACA2#..ATM¥260200005-200307

47124SHAFT, BRAKE PEDAL

main90101-10015iACA2#,CLA2#,ZCA2#¥160200005-200307

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10003iACA2#,CLA2#,ZCA2#¥370200005-200307

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06036iACA2#,CLA2#,ZCA2#¥110200005-200307

47264APIN(FOR PUSH ROD)

main90249-10064iACA2#,CLA2#,ZCA2#¥210200005-200307

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-42080iACA2#,CLA2#,ZCA2#..RHD¥3,370200005-200108

main55106-42081iACA2#,CLA2#,ZCA2#..RHD¥3,370200108-200511

main55106-42090iACA2#,CLA2#,ZCA2#..LHD¥3,370200005-200108

sub55106-42091¥3,370

main55106-42091iACA2#,CLA2#,ZCA2#..LHD¥3,370200108-200307

main55106-42101iACA20,21,CLA2#,ZCA2#..LHD¥4,000200307-200511

9011908750

main90119-08750¥160

9017910088

main90179-10088¥100

9046816142

main90468-16142¥70

12 parts on this diagram · 1 diagram in section
