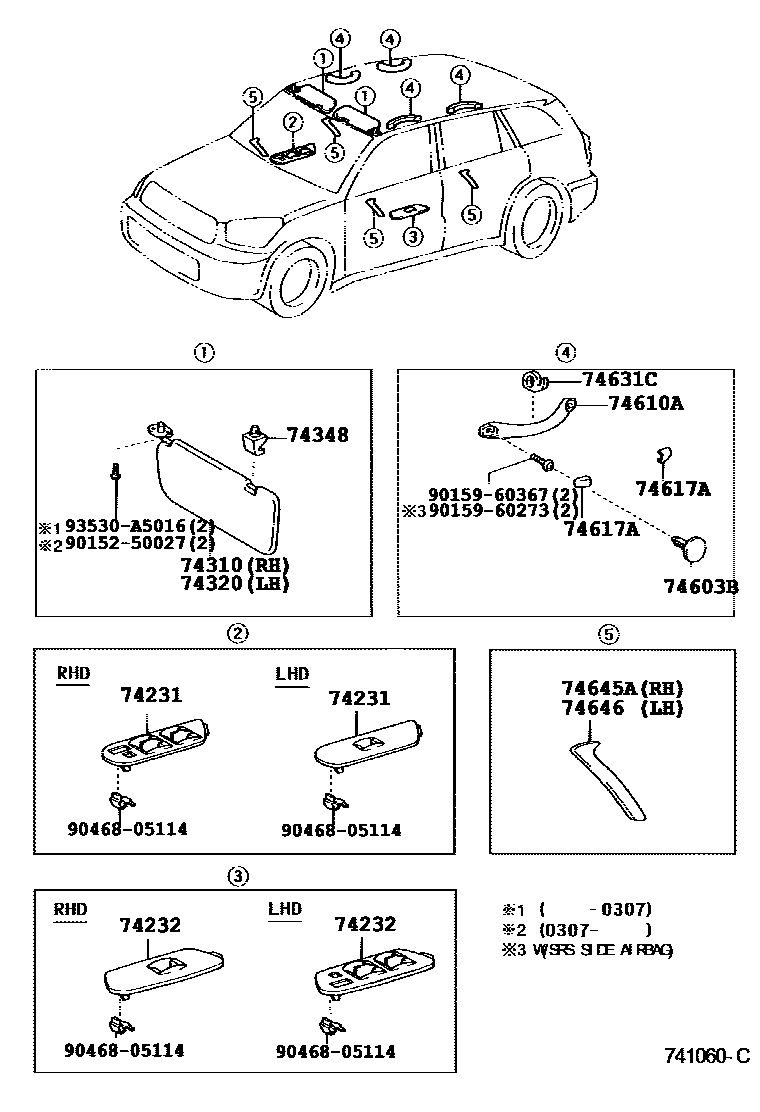

Toyota RAV4 — ARMREST & VISOR

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-42110-B0iACA21..ARL200005-200307

BLUE GRAY,TRIM14,15

main74231-42110-B0iACA21,CLA21,ZCA26..RHD..(EUR,GEN)200005-200307

BLUE GRAY,TRIM1#

main74231-42110-B1iACA21,23,CLA21,ZCA26..RHD200307-200511

DK.GRAY,TRIM1#

main74231-42120-B0iACA21..RHD..EUR;ACA20,CLA2#,ZCA2#..RHD200005-200307

W(POWER WINDOW---FRONT ONLY),BLUE GRAY,TRIM14,15

main74231-42120-B1iACA20,21,CLA2#,ZCA2#..RHD..EUR200307-200511

DK.GRAY,TRIM1#

main74231-42120-B1iACA22200307-200511

W(POWER WINDOW---FRONT ONLY),DK.GRAY,TRIM1#

main74231-42140-B0iCLA2#..LHD;ACA2#..LHD..GEN200008-200307

BLUE GRAY,TRIM14,15

main74231-42140-B0iACA2#,ZCA2#..LHD..(EUR,GCC)200005-200307

BLUE GRAY,TRIM1#,14,15

main74231-42140-B1iACA20,21,CLA2#,ZCA2#..LHD200307-200511

DK.GRAY,TRIM1#

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-42080-B0iACA21,CLA21,ZCA26..LHD200005-200307

BLUE GRAY,TRIM14,15

main74232-42080-B1iACA21,CLA21,ZCA26..LHD200307-200511

DK.GRAY,TRIM1#

main74232-42090-B0iACA21..LHD..EUR;ACA20,CLA2#,ZCA2#..LHD200005-200307

W(POWER WINDOW---FRONT ONLY),BLUE GRAY,TRIM14,15

main74232-42090-B1iACA21..LHD..EUR;ACA20,CLA2#,ZCA2#..LHD200307-200511

W(POWER WINDOW---FRONT ONLY),DK.GRAY,TRIM1#

main74232-42100-B0iACA21..RHD..(EUR,GEN);ACA20,CLA2#,ZCA2#..RHD200005-200307

BLUE GRAY,TRIM14,15

main74232-42100-B0iACA21..ARL200005-200307

BLUE GRAY,TRIM1#

main74232-42100-B1iACA2#,CLA2#,ZCA2#..RHD200307-200511

DK.GRAY,TRIM1#

74310VISOR ASSY, RH

main74310-42270-B0iACA2#,ZCA2#..LHD..EUR200005-200307

W(AIR BAG CAUTION),LT. BLUISH GRAY,TRIM1#,14,15

main74310-42270-B0iCLA2#..LHD200105-200307

LT. BLUISH GRAY,TRIM14,15

main74310-42280-B0iACA21..RHD..GEN;ACA20..RHD..(ARL,GEN)200005-200307

LT. BLUISH GRAY,TRIM1#

main74310-42280-B0iACA21..ARL200005-200307

W(AIR BAG CAUTION),LT. BLUISH GRAY,TRIM14,15

main74310-42310-B0iACA2#..GEN;CLA2#..RHD200008-200208

LT. BLUISH GRAY,TRIM14,15

main74310-42310-B0iACA20..GCC;ACA21..EUR,GCC;ACA20,ZCA2#..RHD..EUR200005-200307

LT. BLUISH GRAY,TRIM1#,14,15

main74310-42310-B0iACA2#..GEN;CLA2#..RHD;ACA20..LHD..ATM..EUR200208-200307

LT. BLUISH GRAY,TRIM14,15

main74310-42340-B0iACA21,22,23..RHD..(ARL,GEN)200307-200511

GRAY,TRIM1#

main74310-42350-B0iACA20,21..LHD..(GCC,GEN)200307-200511

GRAY,TRIM1#

main74310-42360-B0iACA20,21,CLA2#,ZCA2#..EUR200307-200511

GRAY,TRIM1#

main74310-42390-B0iACA20,21..LHD..ATM..EUR200307-200511

CHINA SPEC,GRAY,TRIM1#

74320VISOR ASSY, LH

main74320-42300-B0iACA2#,ZCA2#..RHD..EUR200005-200307

LT. BLUISH GRAY,TRIM1#,14,15

main74320-42300-B0iCLA2#..RHD200105-200307

LT. BLUISH GRAY,TRIM14,15

main74320-42310-B0iACA2#..LHD..GEN200008-200307

W(AIR BAG CAUTION),LT. BLUISH GRAY,TRIM14,15

main74320-42320-B0iACA20..LHD..ATM..EUR200208-200307

LT. BLUISH GRAY,TRIM14,15

main74320-42320-B0iACA21..LHD..EUR200005-200307

W(AIR BAG CAUTION),LT. BLUISH GRAY,TRIM1#,14,15

main74320-42320-B0iACA2#..GCC200008-200307

LT. BLUISH GRAY,TRIM1#,14,15

main74320-42350-B0iACA21..ARL200005-200307

LT. BLUISH GRAY,TRIM1#

main74320-42350-B0iACA21..ARL200005-200307

LT. BLUISH GRAY,TRIM14,15

main74320-42350-B0iACA21..GEN;CLA2#..LHD;ACA20..ARL,GEN200005-200307

LT. BLUISH GRAY,TRIM1#,14,15

main74320-42380-B0iACA21,22,23..RHD..(ARL,GEN)200307-200511

GRAY,TRIM1#

main74320-42390-B0iACA21..LHD..GEN200307-200511

GRAY,TRIM1#

main74320-42400-B0iACA20,21..GCC200307-200511

GRAY,TRIM1#

main74320-42410-B0iACA20,21,CLA2#,ZCA2#..EUR200307-200511

GRAY,TRIM1#

main74320-42440-B0iACA20,21..LHD..ATM..EUR200307-200511

CHINA SPEC,GRAY,TRIM1#

74348HOLDER, VISOR

main74348-42010-B0iACA21..ARL200005-200307

LT. BLUISH GRAY,TRIM1#

sub74348-42010¥370

main74348-42010-B0iACA21..ARL200005-200307

LT. BLUISH GRAY,TRIM14,15

sub74348-42010¥370

main74348-42010-B1iACA2#,CLA2#,ZCA2#200307-200511

NEW GRAY,TRIM1#

sub74348-42010¥370

74603BCLIP (FOR ASSIST GRIP)

main90467-06070-B1iACA21..ARL200005-200307

LT.BLUISH GRAY,TRIM1#

sub90467-06070¥140

main90467-06070-B1iACA21..ARL200005-200307

LT.BLUISH GRAY,TRIM14,15

sub90467-06070¥140

main90467-06070-B9iACA2#,CLA2#,ZCA2#200307-200511

NEW GRAY,TRIM1#

sub90467-06070¥140

74610AGRIP SUB-ASSY, ASSIST

main74611-42010-B0iACA21..ARL200005-200307

LT. BLUISH GRAY,TRIM1#

sub74611-42011¥2,290

main74611-42010-B0iACA21..ARL200005-200307

LT. BLUISH GRAY,TRIM14,15

sub74611-42011¥2,290

main74611-42010-B2iACA2#,CLA2#,ZCA2#200307-200504

NEW GRAY,TRIM1#

sub74611-42011¥2,290

main74611-42010-B2iACA2#,CLA2#,ZCA2#200307-200504

NEW GRAY,TRIM1#,FRONT

sub74611-42011¥2,290

main74611-42011-B2iACA2#,CLA2#,ZCA2#..ARL,EUR,GCC200307-200511

W(SRS SIDE AIR BAG),GRAY,TRIM1#,REAR

sub74611-42011¥2,290

main74611-42011-B2iACA2#,CLA2#,ZCA2#200505-200511

GRAY,TRIM1#

sub74611-42011¥2,290

main74611-42011-B2iACA2#,CLA2#,ZCA2#200505-200511

GRAY,TRIM1#,FRONT

sub74611-42011¥2,290

74617APLUG, ASSIST GRIP

main74617-42010-B0iACA21..ARL200005-200307

LT. BLUISH GRAY,TRIM1#

sub74617-42010¥370

main74617-42010-B0iACA21..ARL200005-200307

LT. BLUISH GRAY,TRIM14,15

sub74617-42010¥370

main74617-42010-B2iACA2#,CLA2#,ZCA2#200307-200511

NEW GRAY,TRIM1#

sub74617-42010¥370

main74617-42030-B0iACA2#,CLA2#,ZCA2#..ARL,EUR,GCC200307-200511

W(SRS SIDE AIR BAG),NEW GRAY,TRIM1#

sub74617-42030¥370

74631CHOOK, COAT

main74631-28010-B2iACA21..ARL200005-200307

LT. BLUISH GRAY,TRIM1#

sub74631-28010¥320

main74631-28010-B2iACA21..ARL200005-200307

LT. BLUISH GRAY,TRIM14,15

sub74631-28010¥320

main74631-28010-B5iACA21..GEN200307-200504

NEW GRAY,TRIM1#

sub74631-28010¥320

main74631-28010-B5iACA2#,CLA2#,ZCA2#..ARL,EUR,GCC200307-200511

NEW GRAY,TRIM1#

sub74631-28010¥320

main74631-28010-B5iACA21..GEN200505-200511

NEW GRAY,TRIM1#

sub74631-28010¥320

74645ACOVER, DOOR ASSIST GRIP, RH

main74645-42010iACA20,CLA20,ZCA25¥1,780200005-200307

main74645-42020iACA20,22,CLA20,ZCA25¥1,790200307-200511

74646COVER, DOOR ASSIST GRIP, LH

main74646-42010iACA20,CLA20,ZCA25¥1,780200005-200307

main74646-42020iACA20,22,CLA20,ZCA25¥1,790200307-200511

9015250027

main90152-50027¥110

9015960273

main90159-60273¥130

9015960367

main90159-60367¥120

9046805114

main90468-05114¥220

93530A5016

main93530-A5016¥110

16 parts on this diagram · 1 diagram in section
