Toyota RAV4 — ACCELERATOR LINK

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0008 1 0009 1 0010 1 0011 1

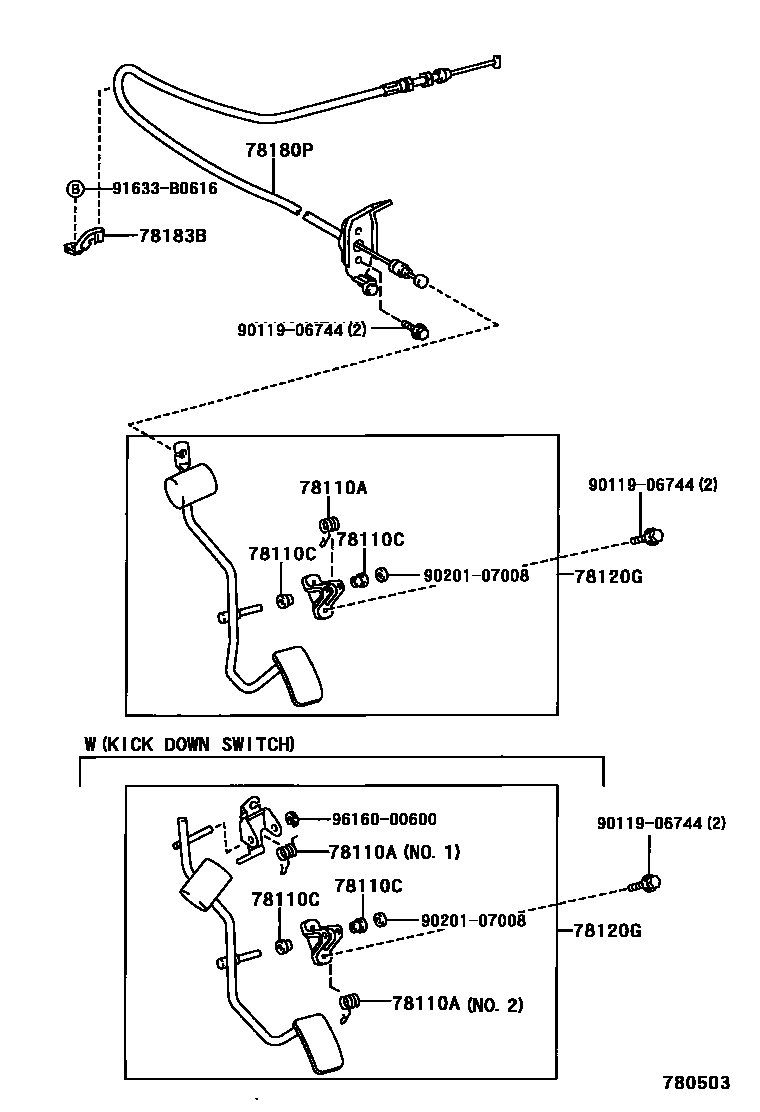

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90508-26075iACA2#,ZCA2#..RHD¥240200005-200307

main90508-26075iZCA2#..RHD;ACA21..RHD..GEN¥240200307

main90508-30009iACA2#..LHD..ATM..EUR¥350200005-200012

NO.1

main90959-03292iZCA2#..LHD;ACA21..LHD..GEN¥310200307

main90959-03292iACA2#,ZCA2#..LHD..MTM;ACA2#..LHD..ATM..(GCC,GEN)¥310200005-200307

NO.2

main90959-03347iACA2#..LHD..ATM..EUR¥330200012-200307

NO.1

78110CBUSH (FOR ACCELERATOR PEDAL ROD)

main90386-08063iACA2#,ZCA2#..LHD¥140200005-200307

main90386-08063iZCA2#..LHD;ACA21..LHD..GEN¥140200307

78120GROD ASSY, ACCELERATOR PEDAL

main78010-42010iACA2#,CLA2#..RHD..(ARL,EUR)¥29,400200307

main78010-42010iCLA2#..RHD¥29,400200105-200307

main78010-42020iACA20,21,CLA2#..LHD..(EUR,GCC)¥30,300200307

main78010-42020iCLA2#..LHD¥30,300200105-200307

main78010-42040iACA20,21..LHD..ATM..EUR¥32,100200307

W(KICK DOWN SWITCH)

main78120-42090iZCA2#..RHD;ACA21..RHD..GEN¥4,320200307

main78120-42090iACA2#,ZCA2#..RHD¥4,320200005-200307

main78120-42110iACA2#,ZCA2#..LHD..MTM;ACA2#..LHD..ATM..(GCC,GEN)¥4,960200005-200307

main78120-42110iZCA2#..LHD;ACA21..LHD..GEN¥4,960200307

main78120-42120iACA2#..LHD..ATM..EUR¥4,950200005-200307

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-42090iACA2#..RHD¥5,500200005-200307

main78180-42090iACA21..RHD..GEN¥5,500200307

main78180-42100iACA21..LHD..GEN¥5,500200307

main78180-42100iACA2#..LHD¥5,500200005-200307

main78180-42120iZCA2#..RHD¥6,000200307

main78180-42120iZCA2#..RHD¥6,000200005-200307

main78180-42130iZCA2#..LHD¥4,720200005-200307

main78180-42130iZCA2#..LHD¥4,720200307

78183BCLAMP, ACCELERATOR CONTROL CABLE

main78183-42020iACA2#..LHD¥370200005-200307

main78183-42020iACA21..LHD..GEN¥370200307

9011906744

main90119-06744¥160

9020107008

main90201-07008¥90

91633B0616

main91633-B0616¥80

9616000600

main96160-00600¥80

9 parts on this diagram · 10 diagrams in section
