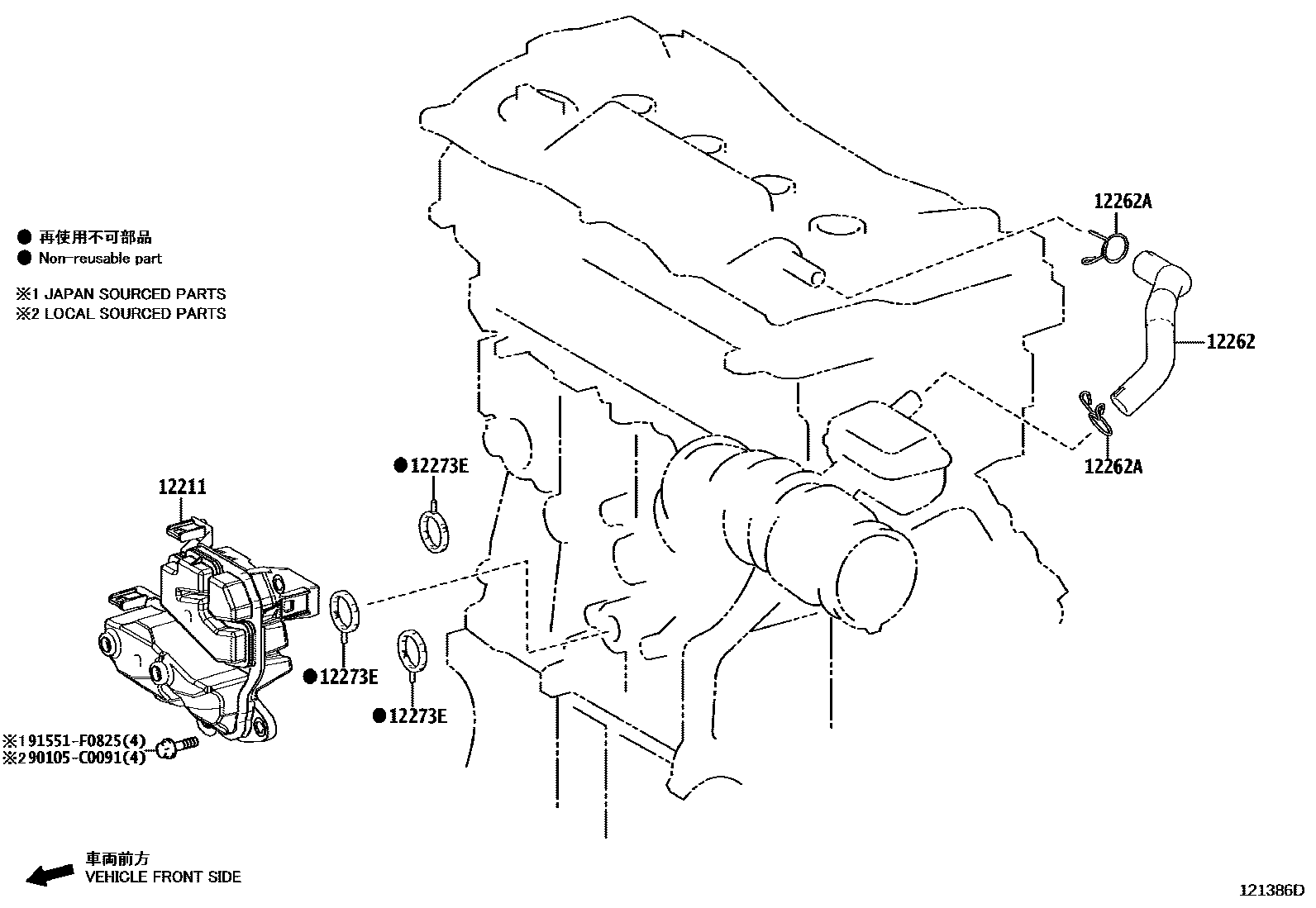

Toyota RAV4 (SFTM) — VENTILATION HOSE

0001 1 0002 1

12211CASE, VENTILATION, NO.1

main12211-25010iA25..AXAH5#¥7,600201911-202007

*636

sub12211-25011¥5,700

main12211-25011iA25..AXAH5#¥5,700202008-202110

*636

main12211-F0020iA25..AXAL5#202304-202409

main12211-F0020iA25..AXAH5#202108-202303

*625

main12211-F2040iM20..MXAA5#201911-202409

12262HOSE, VENTILATION, NO.2

main12262-25080iA25..AXAH5#¥1,430201911-202409

12262ACLIP(FOR VENTILATION HOSE NO.2)

main90467-21004iA25..AXAL5#¥130201911-202409

12273EGASKET(FOR VENTILATION CASE)

main12273-24010iA25..AXAH5#¥340201911-202110

*636

main12273-F2020iA25..AXAL5#201911-202409

main12273-F2020iA25..AXAH5#202108-202303

*625

90105C0091

main90105-C0091

91551F0825

main91551-F0825¥80

6 parts on this diagram · 2 diagrams in section
