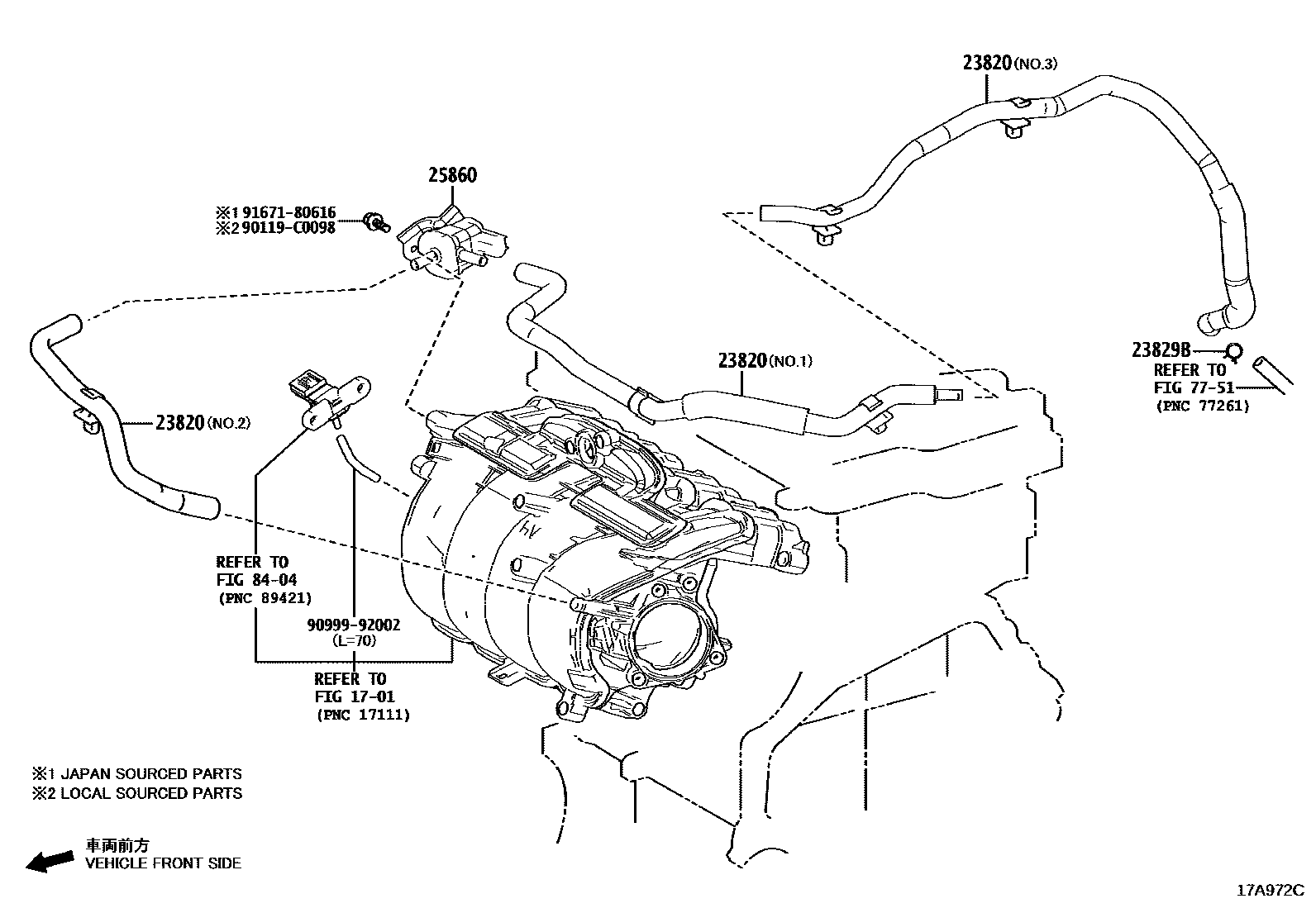

Toyota RAV4 (SFTM) — VACUUM PIPING
1701
23820HOSE ASSY, FUEL VAPOR FEED
NO.1:REFER ILLUST.
(J),NO.1:REFER ILL.
(J),NO.2:REFER ILL.
NO.2:REFER ILLUST.
NO.3:REFER ILLUST.
NO.3:REFER ILLUST.
(L),NO.1:REFER ILL.
(L),NO.2:REFER ILL.
NO.3:REFER ILLUST.
NO.3:REFER ILLUST.
23829BCLIP(FOR FUEL VAPOR FEED HOSE)
25860VALVE ASSY, VACUUM SWITCHING, NO.1
(J)
(L)
7751
8404
90119C0098
main90119-C0098
9099992002
9167180616
9 parts on this diagram · 5 diagrams in section
