Toyota RAV4 (SFTM) — TRANSFER ASSEMBLY & GASKET KIT

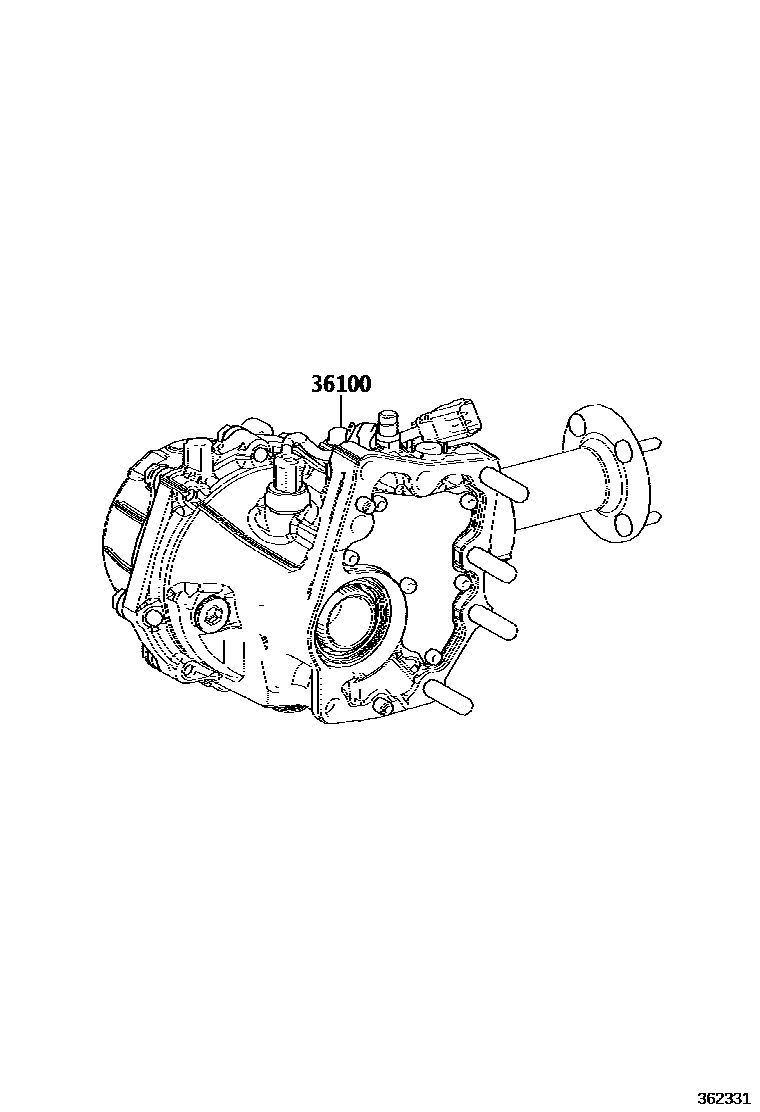

Parts diagram

36100TRANSFER ASSY

main36100-42160i¥126,000201911-202409

main36100-42172i¥139,000201911-202202

sub36100-42173¥126,000

main36100-42173i¥126,000202203-202409

1 parts on this diagram · 2 diagrams in section
