Toyota RAV4 (SFTM) — TIRE PRESSURE WARNING SYSTEM

897A0ARECEIVER ASSY,DOOR CONTROL & TIRE PRESSURE MONITORING SYSTEM

main897A0-0R060iMXAA52..X201911-202104

main897A0-0R080iMXAA52..X202104-202409

main897A0-0R110iMXAA52..X202409

897B0ARECEIVER ASSY, ELECTRICAL KEY & TPMS

main897B0-0R060iAXAH5#,MXAA5#..G,M201911-202104

main897B0-0R090iAXAH5#,MXAA5#..G,M202104-202303

main897B0-0R130iAXAL5#,MXAA5#..G,M202304-202409

main897B0-0R170iAXAL5#,MXAA5#202409

9011906A06

main90119-06A06¥60

90119C0307

main90119-C0307

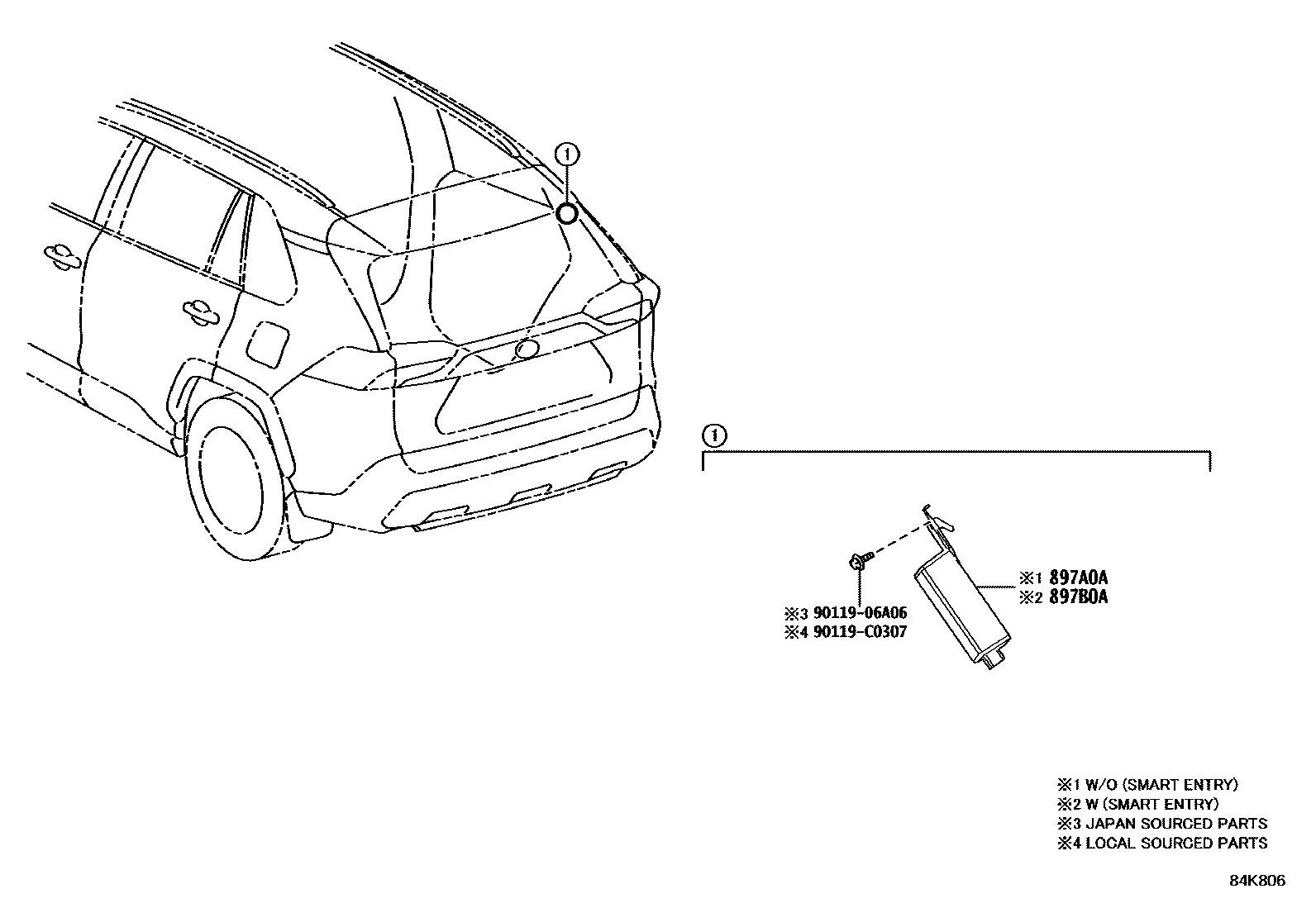

4 parts on this diagram · 1 diagram in section
