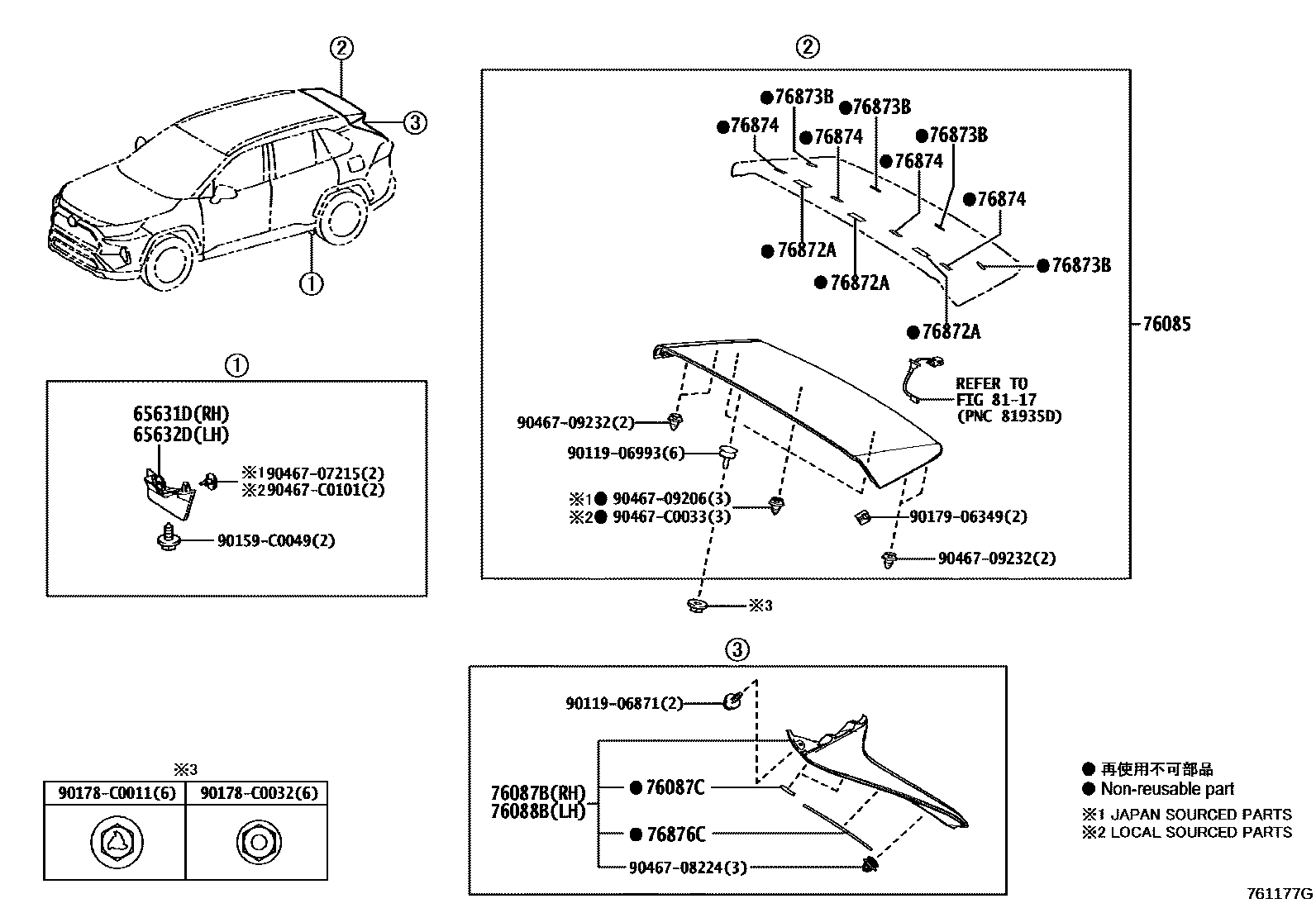

Toyota RAV4 (SFTM) — SPOILER & SIDE MUDGUARD

65631DPLATE, REAR WHEEL HOUSE, FRONT RH

main65631-0R090iAXAH5#,MXAA5#201911-202409

65632DPLATE, REAR WHEEL HOUSE, FRONT LH

main65632-0R090iAXAL5#,MXAA5#201911-202409

76085SPOILER SUB-ASSY, REAR

main76085-0R903iAXAL5#,MXAA5#201911-202409

PAINT REQ.

76087BSPOILER SUB-ASSY, REAR SIDE, RH

main76087-0R020iMXAA52..M202409

FTRD PARTS 2

main76087-0R020iAXAH5#,MXAA5#..G201911-202409

main76087-0R040iAXAL5#,MXAA5#..M,X201911-202409

main76087-0R040iAXAL5#,MXAA5#..M,X202409

FTRD PARTS 2

76087CPROTECTOR, REAR SIDE SPOILER

main87268-0R060iAXAL5#,MXAA5#201911-202409

76088BSPOILER SUB-ASSY, REAR SIDE, LH

main76088-0R020iAXAL5#,MXAA5#..G202409

FTRD PARTS 2

main76088-0R020iAXAH5#,MXAA5#..G201911-202409

main76088-0R040iAXAH5#,MXAA5#..M,X201911-202409

main76088-0R040iAXAL5#,MXAA5#..M,X202409

FTRD PARTS 2

76872APROTECTOR, REAR SPOILER, NO.1

main76872-0R060iAXAL5#,MXAA5#201911-202409

76873BPROTECTOR, REAR SPOILER, NO.2

main76873-0R070iAXAH5#,MXAA5#201911-202409

76874PROTECTOR, REAR SPOILER, NO.3

main76874-0R060iAXAL5#,MXAA5#201911-202409

76876CPROTECTOR, REAR SPOILER, NO.4

main76875-0R060iAXAL5#,MXAA5#201911-202409

8117

9011906871

main90119-06871¥60

9011906993

main90119-06993¥80

90159C0049

main90159-C0049

90178C0011

main90178-C0011

90178C0032

main90178-C0032

9017906349

main90179-06349¥180

9046707215

main90467-07215¥80

9046708224

main90467-08224¥60

9046709206

main90467-09206¥80

9046709232

main90467-09232¥70

90467C0033

main90467-C0033

90467C0101

main90467-C0101

23 parts on this diagram · 1 diagram in section
