Toyota RAV4 (SFTM) — SHORT BLOCK ASSEMBLY

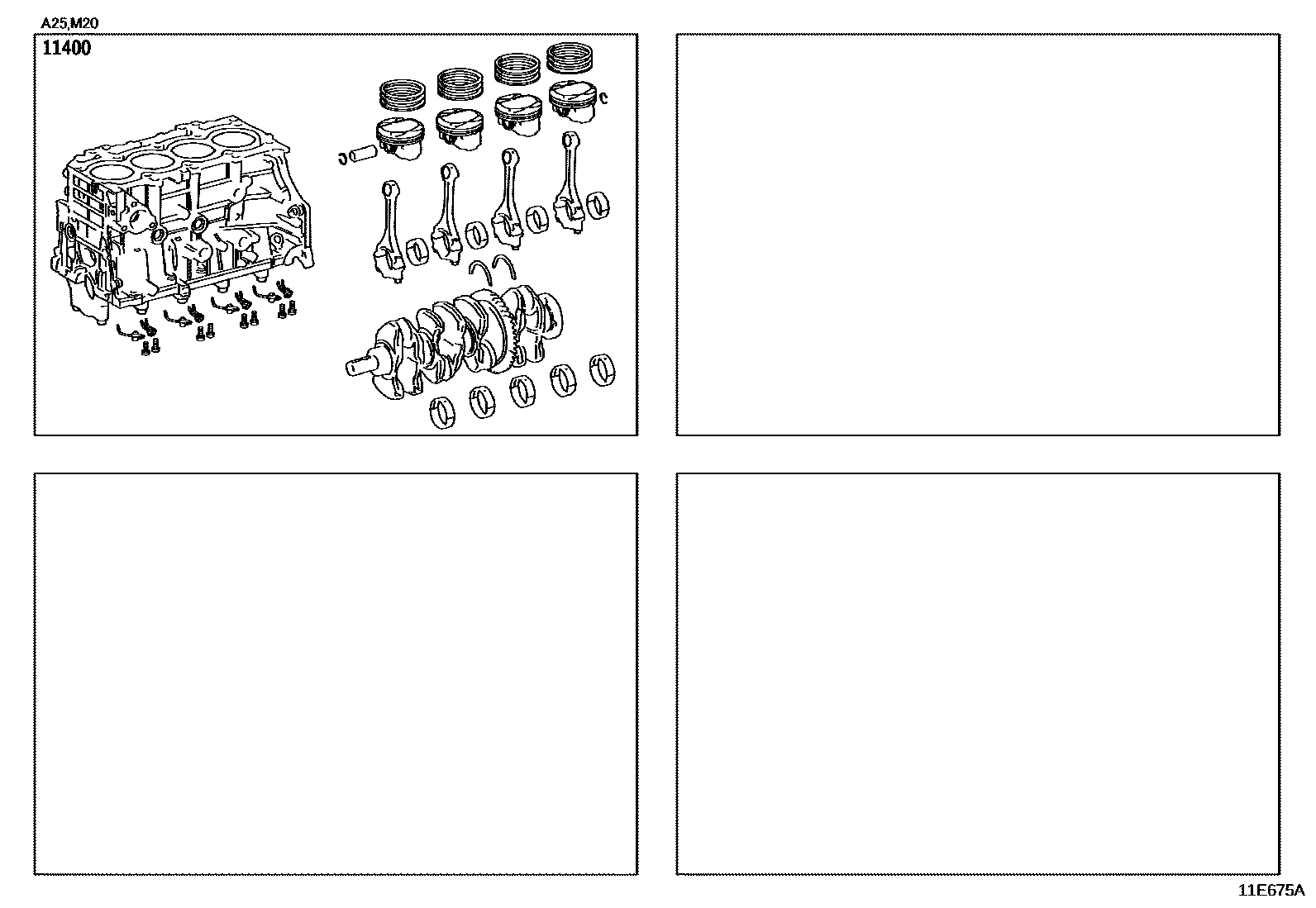

Parts diagram

11400BLOCK ASSY, SHORT

main11400-25081i201911-202108

main11400-F0060i202108-202409

main11400-F2070i201911-202409

1 parts on this diagram · 1 diagram in section
