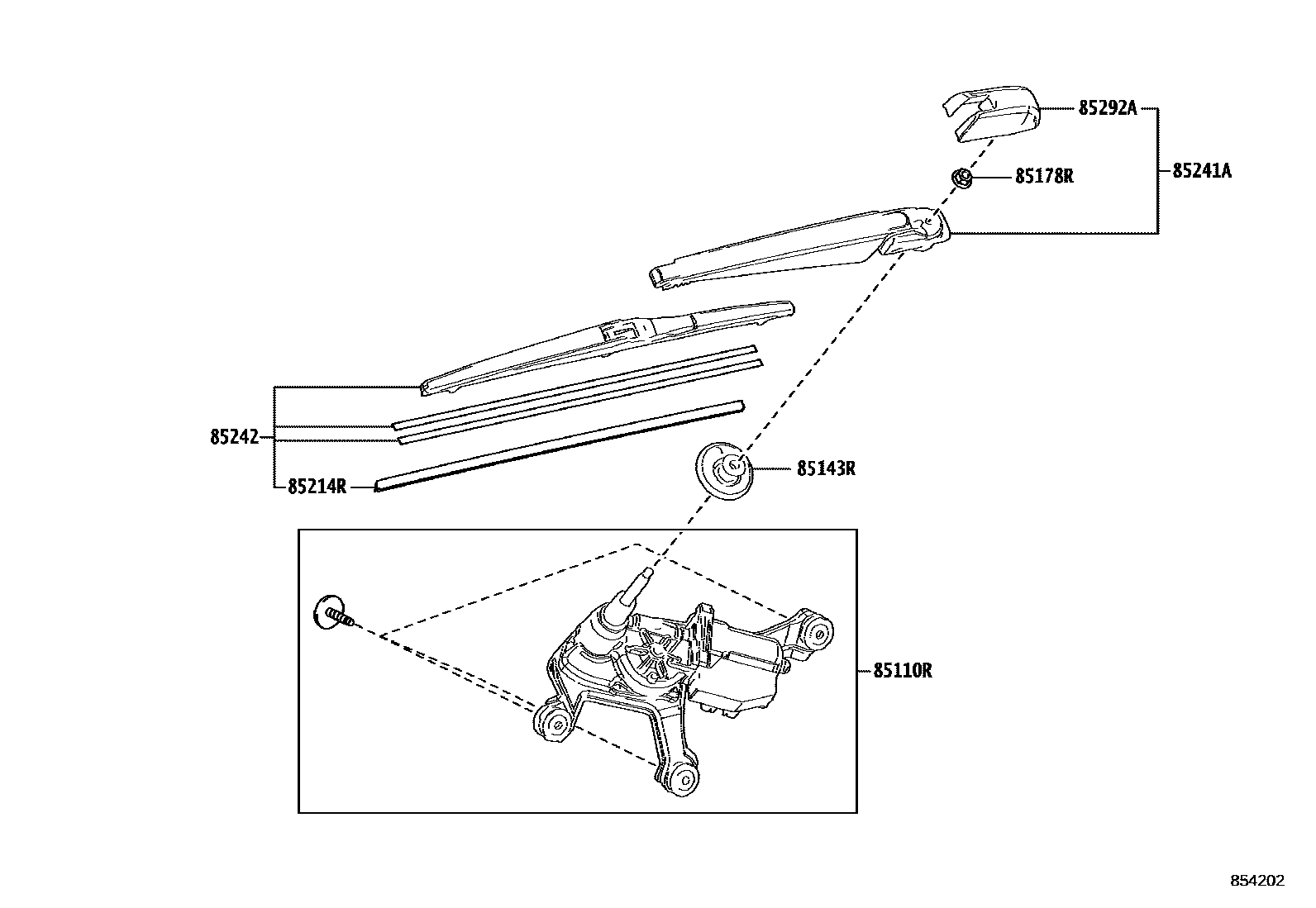

Toyota RAV4 (SFTM) — REAR WIPER

85110RMOTOR ASSY, REAR WIPER

main85130-0R060iAXAL5#,MXAA5#201911-202409

85143RGROMMET, REAR WIPER MOTOR

main85143-0R040iAXAL5#,MXAA5#201911-202409

85178RNUT (FOR REAR WIPER ARM SETTING)

main90182-C0004iAXAL5#,MXAA5#201911-202409

85214RRUBBER, REAR WIPER

main85214-0R150iAXAL5#,MXAA5#201911-202409

85241AARM, REAR WIPER

main85241-0R090iAXAL5#,MXAA5#201911-202409

85242BLADE, RR WIPER

main85242-0R050iAXAL5#,MXAA5#201911-202409

85292ACAP, REAR WIPER ARM HEAD

main85292-0D080iAXAL5#,MXAA5#¥630201911-202409

7 parts on this diagram · 1 diagram in section
