Toyota RAV4 (SFTM) — REAR DISC BRAKE CALIPER & DUST COVER

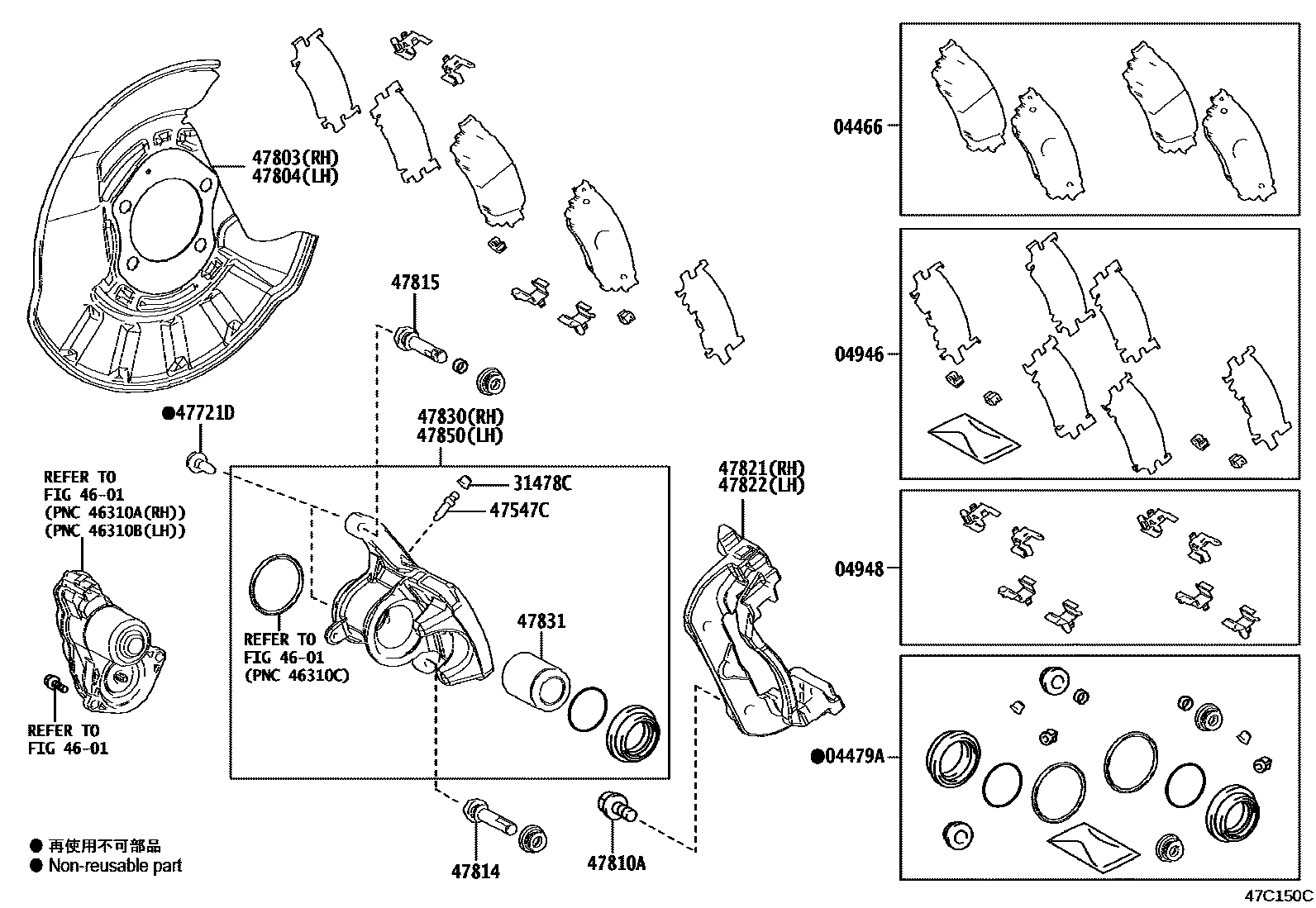

Parts diagram

04466PAD KIT, DISC BRAKE, REAR

main04466-0R000i202409

MARK NBK D6360

main04466-0R000i201911-202303

MARK NBK D6360

main04466-0R000i202304-202409

MARK NBK D6360

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-06391i201911-202008

main04479-06392i202008-202303

main04479-06392i202409

main04479-06392i202304-202409

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-06150i202409

main04946-06150i201911-202303

main04946-06150i202304-202409

04948FITTING KIT, DISC BRAKE, REAR

main04948-06070i202304-202409

main04948-06070i202409

main04948-06070i201911-202303

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-0N010i202409

main31478-0N010i201911-202303

main31478-0N010i202304-202409

4601

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-20010i¥200202409

main47547-20010i¥200201911-202303

main47547-20010i¥200202304-202409

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90016-AA612i202409

main90016-AA612i201911-202303

main90016-AA612i202304-202409

47803COVER SUB-ASSY, DISC BRAKE DUST, REAR RH

main47803-F4010i202409

main47803-F4010i201911-202303

main47803-F4010i202304-202409

47804COVER SUB-ASSY, DISC BRAKE DUST, REAR LH

main47804-F4010i201911-202303

main47804-F4010i202409

main47804-F4010i202304-202409

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90105-C0255i202409

main90105-C0255i201911-202303

main90105-C0255i202304-202409

47814PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47814-06180i202409

main47814-06180i201911-202303

main47814-06180i202304-202409

47815PIN, REAR CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)

main47815-06180i202409

main47815-06180i201911-202303

main47815-06180i202304-202409

47821MOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-F4010i202409

main47821-F4010i201911-202303

main47821-F4010i202304-202409

47822MOUNTING, REAR DISC BRAKE CYLINDER, LH

main47822-F4010i202409

main47822-F4010i201911-202303

main47822-F4010i202304-202409

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-0R060i202409

main47830-0R060i202304-202409

main47830-0R060i201911-202303

47831PISTON, REAR DISC BRAKE

main47831-0R060i201911-202302

main47831-0R061i202302-202303

main47831-0R061i202409

main47831-0R061i202304-202409

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47850-0R060i202409

main47850-0R060i201911-202303

main47850-0R060i202304-202409

18 parts on this diagram · 1 diagram in section
