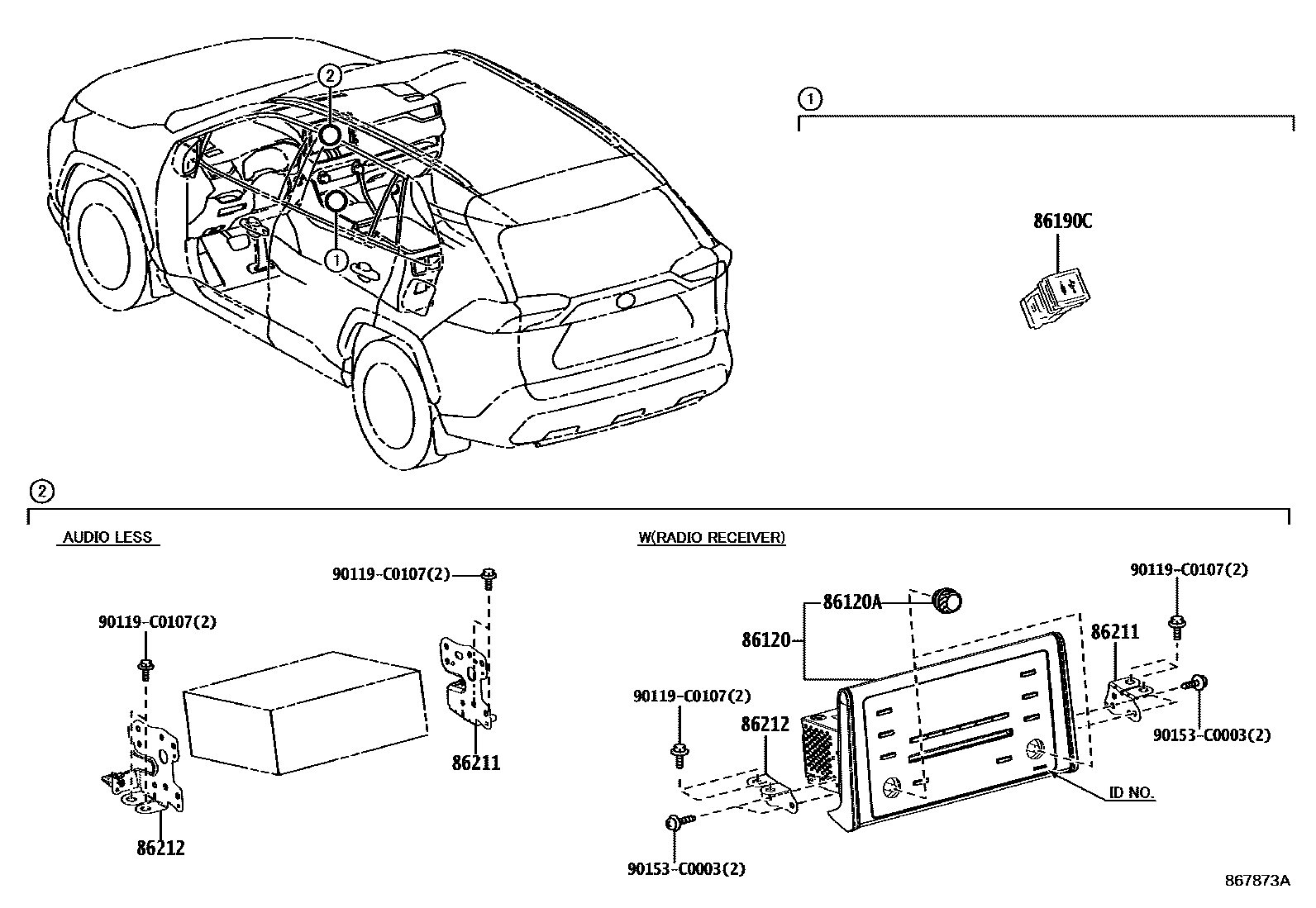

Toyota RAV4 (SFTM) — RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1 0003 1CONDENSER

86120RECEIVER ASSY, RADIO

main86120-0R200iMXAA52..X201911-202104

PANASONIC,ID=510430

86120AKNOB, RADIO RECEIVER SWITCH

main90011-25317iMXAA52..X201911-202104

86190CADAPTER ASSY, STEREO JACK, NO.1

main86190-0A010iAXAL5#,MXAA5#202304-202409

main86190-12040iMXAA52..X¥7,200201911-202303

86211BRACKET, RADIO, NO.1

main86211-0R100iMXAA52..X201911-202303

main86211-0R120iAXAH5#,MXAA5#..G,M201911-202104

main86211-0R160iAXAL5#,MXAA5#202304-202409

86212BRACKET, RADIO, NO.2

main86212-0R100iMXAA52..X201911-202303

main86212-0R120iAXAH5#,MXAA5#..G,M201911-202104

main86212-0R160iAXAL5#,MXAA5#202304-202409

90119C0107

main90119-C0107

90153C0003

main90153-C0003

7 parts on this diagram · 3 diagrams in section
