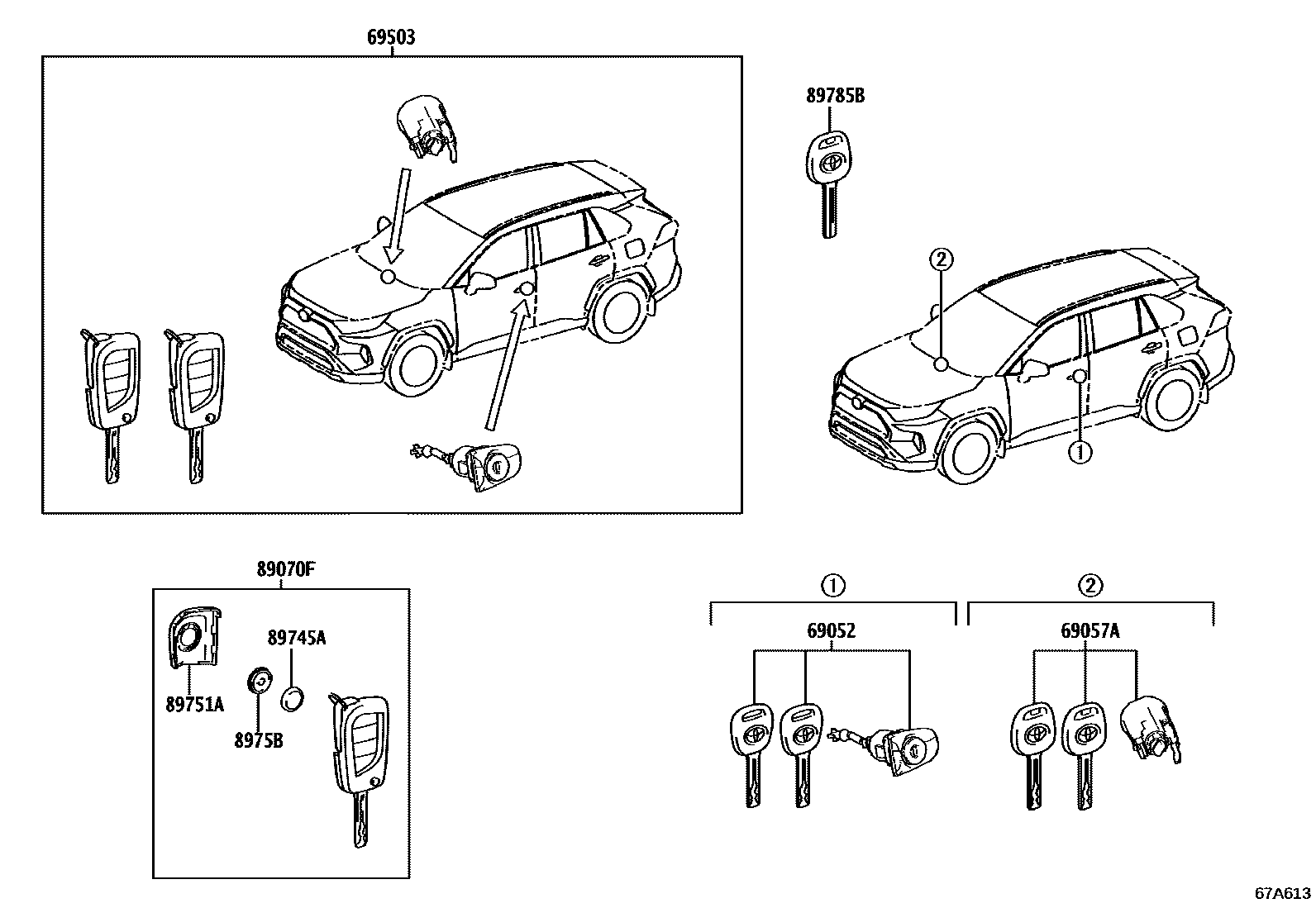

Toyota RAV4 (SFTM) — LOCK CYLINDER SET

0001 1WITHOUT(SMART ENTRY) 0002 1WITH(SMART ENTRY)

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-0R130iMXAA52..X201911-202409

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-06350iMXAA52..X201911-202409

69503CYLINDER SET, LOCK

main69005-0R180iAXAL5#,MXAA5#..G,M201911-202409

main69005-0R230iAXAL5#,MXAA5#..G,M202409

main89704-0R200iMXAA52..X201911-202409

89070FTRANSMITTER ASSY, DOOR CONTROL (CUT KEY)

main89070-0R330iMXAA52..X201911-202409

89745ABATTERY, TRANSMITTER

main89745-06010iMXAA52..X201911-202409

CR2032

89751ACOVER, TRANSMITTER HOUSING

main89751-06130iMXAA52..X201911-202409

8975BCOVER, TRANSMITTER BATTERY HOUSING

main8975B-33050iMXAA52..X¥170201911-202409

89785BTRANSMITTER, TRANSPONDER KEY MASTER

main89785-06060iMXAA52..X201911-202409

8 parts on this diagram · 2 diagrams in section
