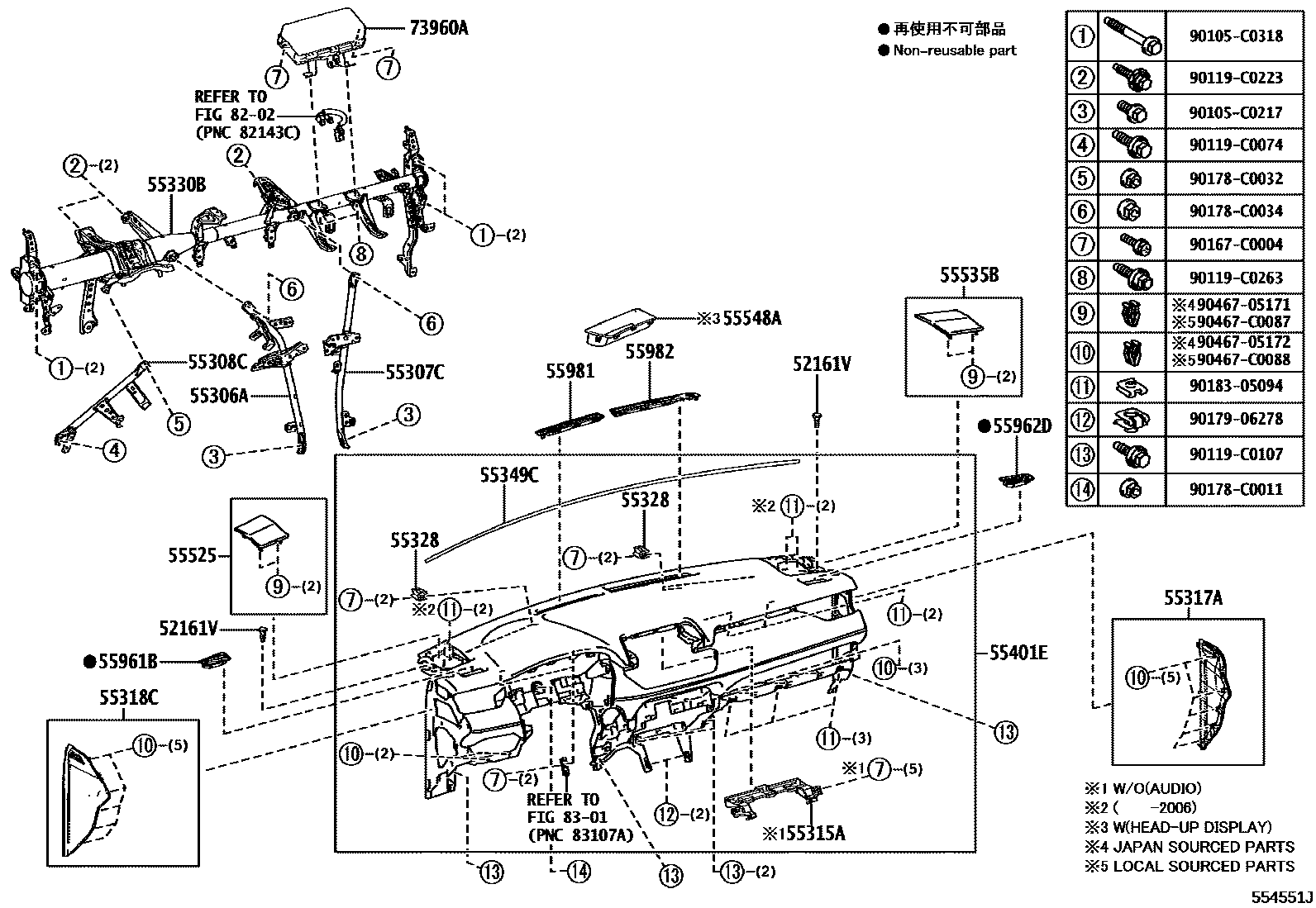

Toyota RAV4 (SFTM) — INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1DRIVER SIDE 0003 1CENTER 0004 1PASSENGER SIDE

52161VPIECE, INSTRUMENT PANEL

main52161-02040iAXAH5#,MXAA5#201911-202409

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-0R080iAXAL5#,MXAA5#201911-202409

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-0R050iAXAL5#,MXAA5#201911-202409

55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER

main55308-0R020iAXAL5#,MXAA5#201911-202409

55315ASPACER, INSTRUMENT PANEL, NO.1

main55315-0R060iAXAH5#,MXAA5#..G,M201911-202104

55317APANEL, INSTRUMENT SIDE, RH

main55317-0R060-C0iAXAL5#,MXAA52..M201911-202409

BLACK,TRIM2#,4#

main55317-0R060-C0iMXAA54;AXAL5#,MXAA52..G,X202409

BLACK,TRIM2#,4#,8#

main55317-0R060-C0iMXAA52..X201911-202409

BLACK,TRIM1#,2#,4#

55318CPANEL, INSTRUMENT SIDE, LH

main55318-0R030-C0iMXAA52..X201911-202409

BLACK,TRIM1#,2#,4#

main55318-0R030-C0iAXAL5#,MXAA52..M202409

BLACK,TRIM2#,4#,8#

main55318-0R030-C0iAXAL5#,MXAA52..M201911-202409

BLACK,TRIM2#,4#

55328PIN, INSTRUMENT PANEL, NO.1

main55328-07080iAXAL5#,MXAA5#202304-202409

(L)

main55328-0E100iAXAH5#,MXAA5#202011-202303

(L)

main55328-12430iAXAL5#,MXAA5#¥340202304-202409

(J)

main55328-60090iAXAH5#,MXAA5#¥340201911-202011

main55328-60090iAXAH5#,MXAA5#¥340202011-202303

(J)

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-0R120iAXAL54..M;AXAL52,MXAA5#201911-202409

main55330-0R121iAXAH5#,MXAA5#202102-202303

main55330-0R171iAXAL54..G202304-202409

55349CCUSHION, INSTRUMENT PANEL

main55349-0R040iAXAH5#,MXAA5#201911-202409

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-0R030-C2iAXAH5#,MXAA5#..G,M201911-202303

BEIGE,TRIM4#

sub55401-0R031

main55401-0R030-C3iAXAH5#,MXAA5#..G,M202104-202303

LT.GRAY,TRIM1#

sub55401-0R031

main55401-0R030-C7iMXAA52..X201911-202303

SOFT BLACK,TRIM2#

sub55401-0R031

main55401-0R031-C2iMXAA5#..M,X202304-202409

NEUTRAL BEIGE,TRIM4#

main55401-0R031-C2iMXAA5#..M,X202304-202409

LEATHER PACKAGE,NEUTRAL BEIGE,TRIM4#

main55401-0R031-C7iMXAA54..M202304-202409

LEATHER PACKAGE,SOFT BLACK,TRIM2#

main55401-0R031-C7iMXAA5#..M,X202304-202409

SOFT BLACK,TRIM2#

main55401-0R031-C7iMXAA5#..M,X202409

FTRD INTERIOR PKG HI,SOFT BLACK,TRIM2#

main55401-0R040-C0iAXAH5#,MXAA5#..G,M201911-202104

LT.GRAY,TRIM1#

main55401-0R040-C2iAXAH5#,MXAA5#..G,M201911-202104

NEUTRAL BEIGE,TRIM4#

main55401-0R040-C7iAXAH5#,MXAA5#..G,M201911-202104

SOFT BLACK,TRIM2#

main55401-0R121-C2iAXAL54..G202304-202409

SOFT BLACK/LT.GRAY,TRIM2#

main55401-0R121-C4iAXAL54..G202304-202409

SOFT BLACK/CAMEL,TRIM4#

main55401-0R171-C0iAXAL52;AXAL54..M;MXAA5#..G202304-202409

SOFT BLACK/LT.GRAY,TRIM2#

main55401-0R171-C0iAXAL52;AXAL54..M;MXAA5#..G202304-202409

FTRD PARTS,SOFT BLACK/LT.GRAY,TRIM2#

main55401-0R171-C0iAXAL52;AXAL54..M;MXAA5#..G202409

FTRD INTERIOR PKG HI,SOFT BLACK/LT.GRAY,TRIM2#

main55401-0R171-C0iAXAL52;AXAL54..M;MXAA5#..G202304-202409

LEATHER PACKAGE,SOFT BLACK/LT.GRAY,TRIM2#

main55401-0R171-C0iAXAL52;AXAL54..M;MXAA5#..G202304-202409

LEATHER PACKAGE(20TH ANNIVERSARY),SOFT BLACK/LT.GRAY,TRIM2#

main55401-0R171-C2iAXAL52;AXAL54..M;MXAA5#..G202304-202409

SOFT BLACK/CAMEL,TRIM4#

main55401-0R171-C2iAXAL52;AXAL54..M;MXAA5#..G202304-202409

LEATHER PACKAGE,SOFT BLACK/CAMEL,TRIM4#

main55401-0R171-C2iMXAA54..G202304-202409

LEATHER PACKAGE(20TH ANNIVERSARY),SOFT BLACK/CAMEL,TRIM4#

main55401-0R171-C2iMXAA54..G202304-202409

FTRD PARTS,SOFT BLACK/CAMEL,TRIM4#

55525COVER, SPEAKER HOLE, NO.1

main55525-0R060-C1iMXAA52..X201911-202409

BLACK,TRIM2#,4#

main55525-0R070-C1iAXAL5#,MXAA52..M202409

BLACK,TRIM2#,4#,8#

main55525-0R070-C1iAXAL5#,MXAA52..M202409

BLACK,TRIM2#,4#

main55525-0R070-C1iAXAH5#,MXAA5#..G,M201911-202409

BLACK,TRIM1#,2#,4#

55535BCOVER, SPEAKER HOLE, NO.2

main55535-0R060-C1iMXAA52..X201911-202409

BLACK,TRIM2#,4#

main55535-0R070-C1iMXAA54;AXAL5#,MXAA52..G202409

BLACK,TRIM2#,4#,8#

main55535-0R070-C1iMXAA54;AXAL5#,MXAA52..G202409

BLACK,TRIM2#,4#

main55535-0R070-C1iAXAH5#,MXAA5#..G,M201911-202409

BLACK,TRIM1#,2#,4#

55548ACOVER, INSTRUMENT PANEL HOLE

main55548-0R050iAXAL54..G202304-202409

55961BNOZZLE, SIDE DEFROSTER, NO.1

main55961-0R020-C1iAXAL5#,MXAA5#201911-202409

BLACK,TRIM2#,4#

main55961-0R020-C1iMXAA52..X201911-202409

BLACK,TRIM1#,2#,4#

55962DNOZZLE, SIDE DEFROSTER, NO.2

main55962-0R020-C1iAXAL5#,MXAA5#..G,M201911-202409

BLACK,TRIM2#,4#

main55962-0R020-C1iMXAA52..X201911-202409

BLACK,TRIM1#,2#,4#

55981GARNISH, DEFROSTER NOZZLE, NO.1

main55981-0R020-C1iMXAA52..X201911-202409

BLACK,TRIM2#,4#

main55981-0R020-C1iMXAA52..X201911-202409

BLACK,TRIM1#,2#,4#

55982GARNISH, DEFROSTER NOZZLE, NO.2

main55982-0R020-C1iMXAA52..X201911-202409

BLACK,TRIM1#,2#,4#

main55982-0R020-C1iAXAL5#,MXAA5#201911-202409

BLACK,TRIM2#,4#

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-0R071iAXAH5#,MXAA5#201911-202303

main73960-0R072iAXAL5#,MXAA5#202304-202409

8202

8301

90105C0217

main90105-C0217

90105C0318

main90105-C0318

90119C0074

main90119-C0074

90119C0107

main90119-C0107

90119C0223

main90119-C0223

90119C0263

main90119-C0263

90167C0004

main90167-C0004

90178C0011

main90178-C0011

90178C0032

main90178-C0032

90178C0034

main90178-C0034

9017906278

main90179-06278¥100

9018305094

main90183-05094¥90

9046705171

main90467-05171¥60

9046705172

main90467-05172¥60

90467C0087

main90467-C0087

90467C0088

main90467-C0088

37 parts on this diagram · 4 diagrams in section
