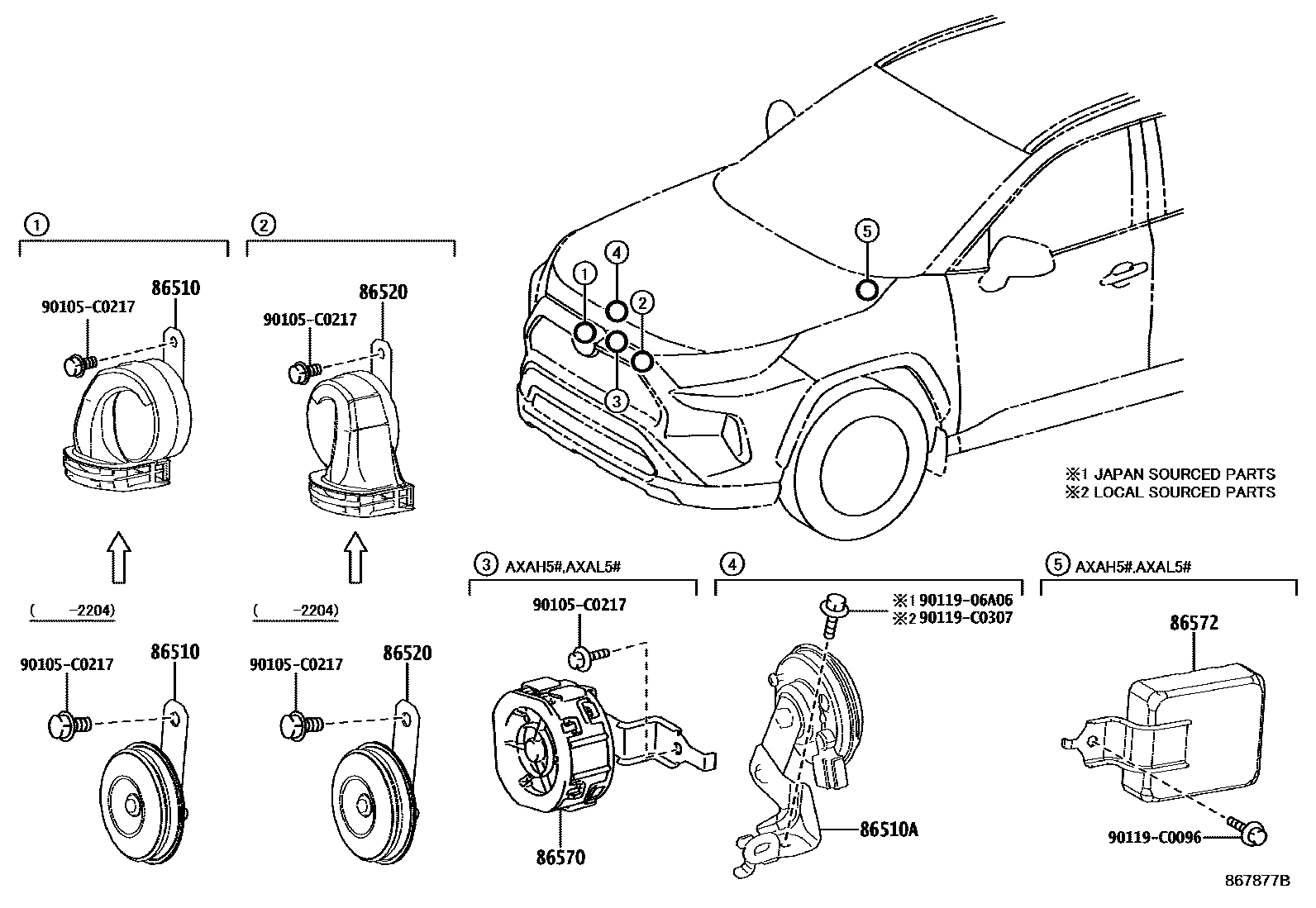

Toyota RAV4 (SFTM) — HORN

86510HORN ASSY, HIGH PITCHED

main86510-0R041iAXAH5#,MXAA5#201911-202204

main86510-78020iAXAH5#,MXAA5#202204-202409

86510AHORN ASSY, SECURITY

main86560-07030iAXAL52..M202304-202409

LEATHER PACKAGE

main86560-07030iAXAL52..M202409

FTRD INTERIOR PKG HI

main86560-07030iAXAH5#,MXAA5#..G,M201911-202303

86520HORN ASSY, LOW PITCHED

main86520-0R041iAXAH5#,MXAA5#201911-202204

main86520-78020iAXAH5#,MXAA5#202204-202409

86570SPEAKER ASSY, VEHICLE APPROACHING

main86570-0R010iAXAH5#202008-202409

main86570-42030iAXAH5#201911-202007

86572CONTROLLER, VEHICLE APPROACHING SPEAKER

main86572-0R070iAXAH5#202008-202111

main86572-0R080iAXAH5#202111-202204

main86572-0R100iAXAL5#202304-202409

main86572-0R140iAXAH5#202204-202303

main86572-0R200iAXAL5#202409

main86572-42080iAXAH5#201911-202007

sub86572-0R070

90105C0217

main90105-C0217

9011906A06

main90119-06A06¥60

90119C0096

main90119-C0096

90119C0307

main90119-C0307

9 parts on this diagram · 1 diagram in section
