Toyota RAV4 (SFTM) — HEV INVERTER

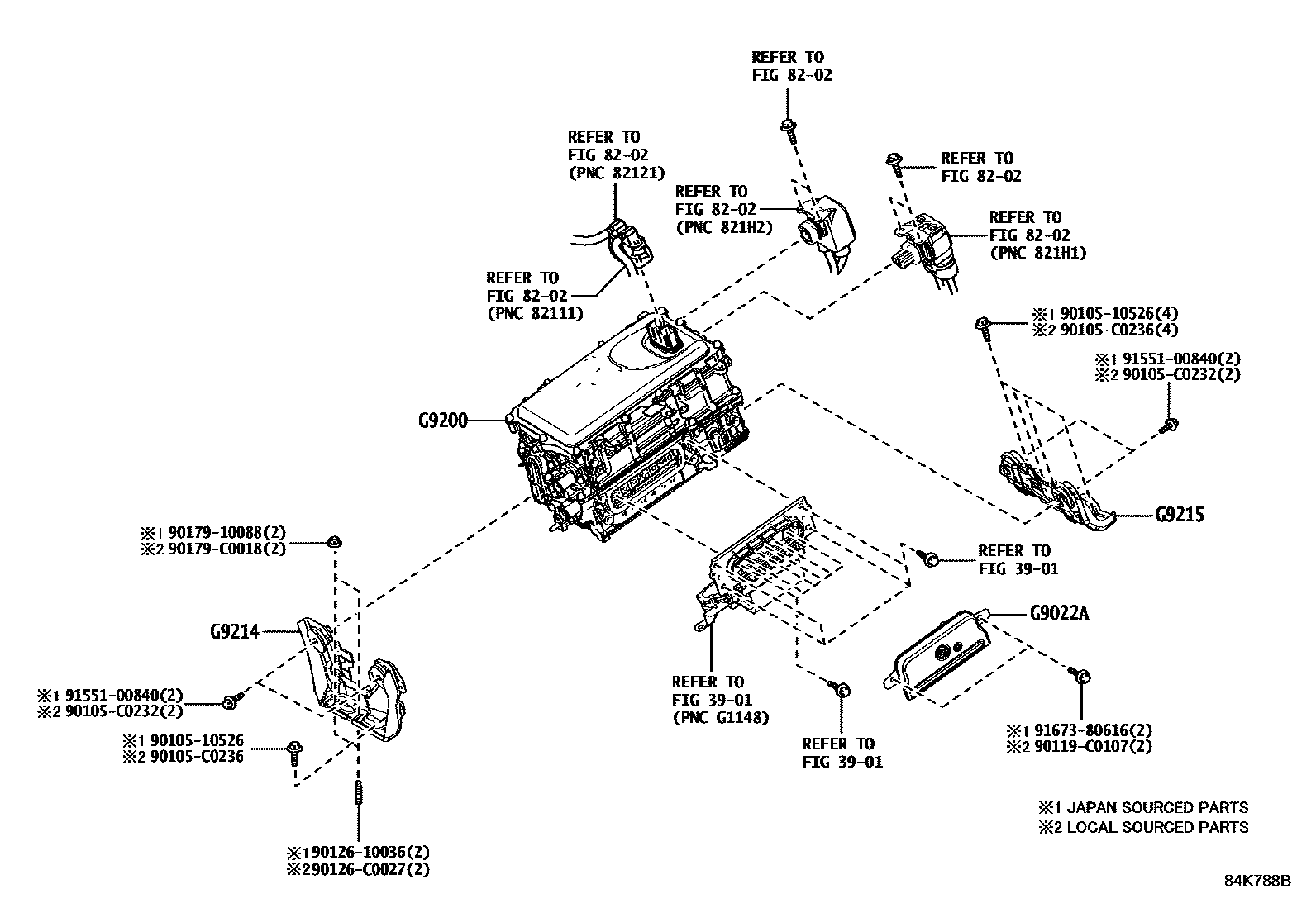

Parts diagram

3901

8202

G9022ACOVER SUB-ASSY, INVERTER, UPPER

mainG902247050i201911-202409

G9200INVERTER ASSY, W/CONVERTER

mainG92A00E092i202409

mainG92A033031i201911-202106

subG92A0-33032¥341,000

mainG92A033032i202107-202204

subG92A0-33033¥309,000

mainG92A033033i202205-202409

mainG92A042070i201911-202106

subG92A0-42071¥435,000

mainG92A042071i202107-202206

subG92A0-42072¥395,000

mainG92A042072i202207-202409

mainG92A042160i202409

G9214BRACKET, INVERTER, NO.1

mainG921407010i202009-202409

LOCAL SOURCED PARTS

mainG921433040i202009-202409

JAPAN SOURCED PARTS

mainG921433040i201911-202108

G9215BRACKET, INVERTER, NO.2

mainG921507010i202009-202409

LOCAL SOURCED PARTS

mainG92150E020i202108-202409

LOCAL SOURCED PARTS

mainG921533040i202009-202409

JAPAN SOURCED PARTS

mainG921533040i201911-202009

mainG921542010i202108-202409

JAPAN SOURCED PARTS

mainG921542010i201911-202108

9010510526

main90105-10526¥100

90105C0232

main90105-C0232

90105C0236

main90105-C0236

90119C0107

main90119-C0107

9012610036

main90126-10036¥100

90126C0027

main90126-C0027

9017910088

main90179-10088¥100

90179C0018

main90179-C0018

9155100840

main91551-00840¥80

9167380616

main91673-80616¥60

16 parts on this diagram · 4 diagrams in section
