Toyota RAV4 (SFTM) — HEATING & AIR CONDITIONING - WATER PIPING

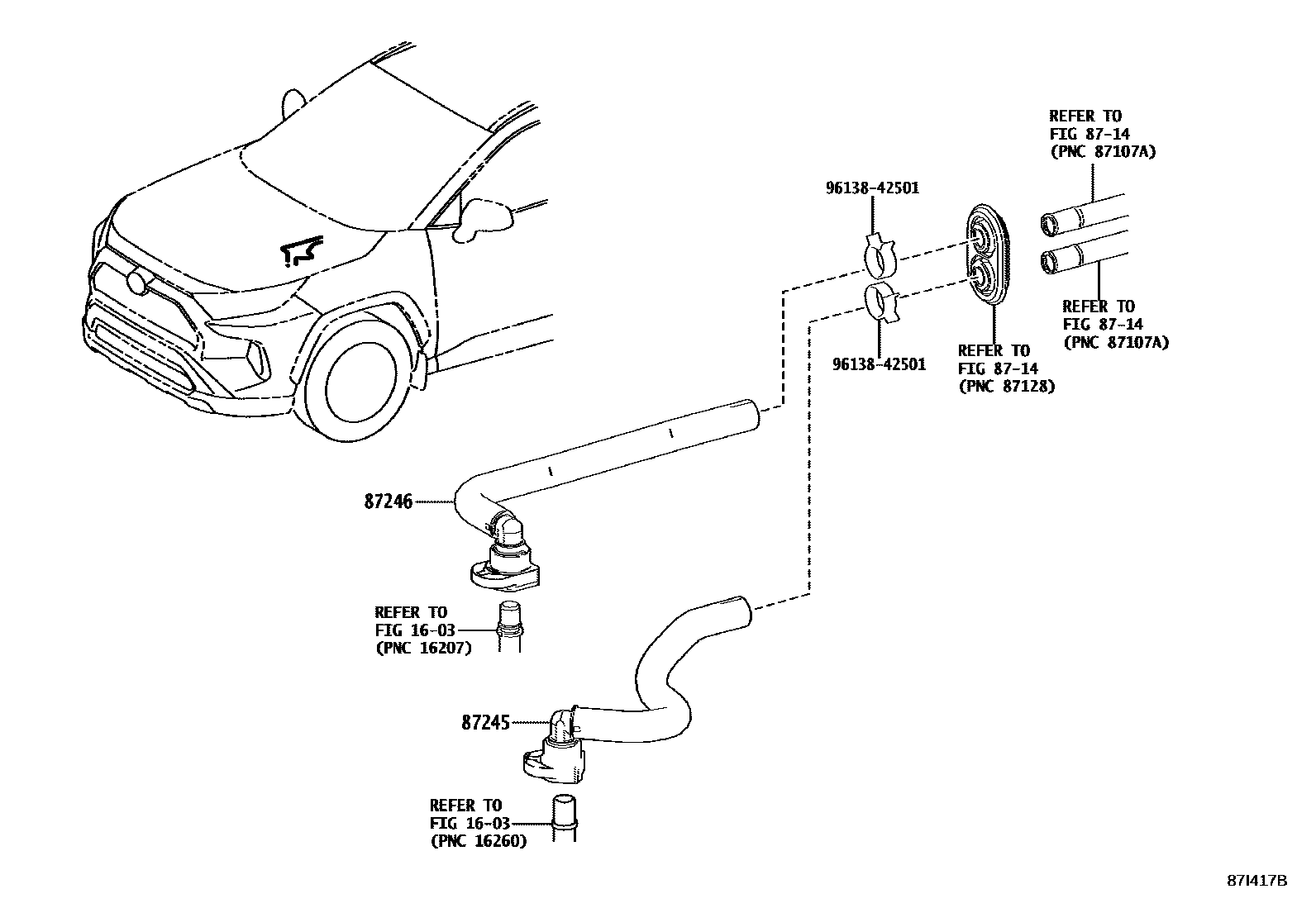

Parts diagram

1603

8714

87245HOSE, HEATER WATER, INLET

main87209-0R200i202409

main87209-0R200i201911-202303

main87209-0R200i202304-202409

main87209-0R220i202409

main87209-0R220i201911-202303

main87209-0R220i202304-202409

87246HOSE, HEATER WATER, OUTLET

main87209-0R210i202409

main87209-0R210i201911-202303

main87209-0R210i202304-202409

main87209-0R230i201911-202303

main87209-0R230i202409

main87209-0R230i202304-202409

9613842501

main96138-42501¥180

5 parts on this diagram · 2 diagrams in section
