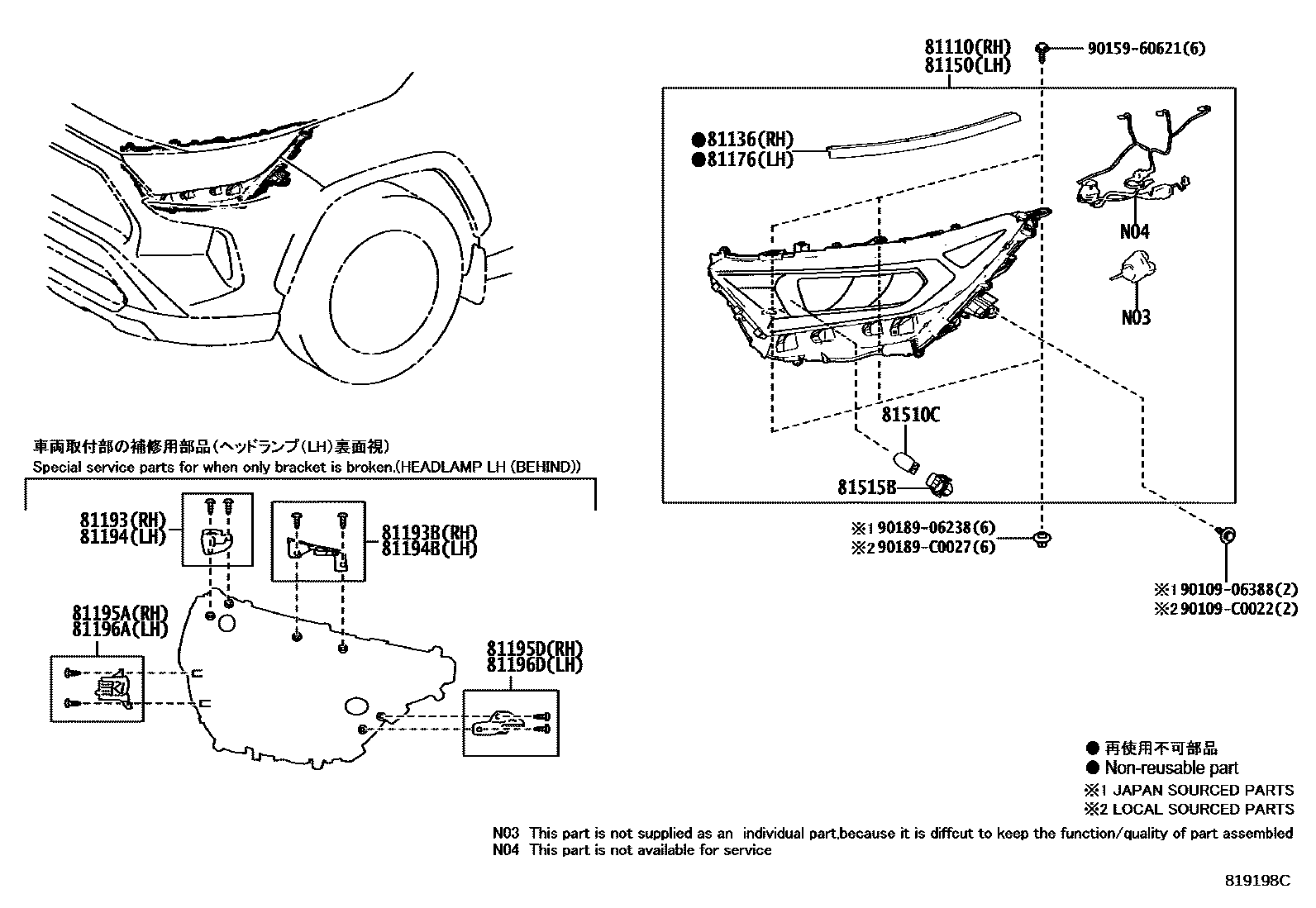

Toyota RAV4 (SFTM) — HEADLAMP

0001 1MULTI REFLECTOR TYPE 0002 1PROJECTOR TYPE 0003 1PROJECTOR TYPE

81110HEADLAMP ASSY, RH

main81110-0R190iAXAH5#,MXAA5#..M,X201911-202008

sub81110-0R191

main81110-0R191iAXAH5#,MXAA5#..M,X202009-202109

sub81110-0R192

main81110-0R192iAXAH5#,MXAA5#..M,X202110-202204

sub81110-0R193

main81110-0R193iAXAH5#,MXAA5#..M,X202205-202409

main81110-0R200iAXAH5#,MXAA5#..G201911-202008

sub81110-0R201

main81110-0R201iAXAH5#,MXAA5#..G202009-202109

sub81110-0R202

main81110-0R202iAXAH5#,MXAA5#..G202110-202205

sub81110-0R203

main81110-0R203iAXAH5#,MXAA5#..G202205-202303

main81110-0R370iAXAL5#,MXAA52..M202304-202409

LEATHER PACKAGE

main81110-0R370iAXAL5#,MXAA52..M202409

FTRD INTERIOR PKG HI

main81110-0R370iAXAL5#,MXAA5#..G202304-202409

LEATHER PACKAGE(20TH ANNIVERSARY)

81136PROTECTOR, HEADLAMP, NO.1 RH

main81117-0R190iAXAL5#,MXAA5#..M202304-202409

LEATHER PACKAGE(20TH ANNIVERSARY)

main81117-0R190iMXAA52..M202304-202409

LEATHER PACKAGE

main81117-0R190iAXAL5#,MXAA5#..M,X202409

FTRD INTERIOR PKG HI

main81117-0R190iAXAH5#,MXAA5#201911-202303

81150HEADLAMP ASSY, LH

main81150-0R190iAXAH5#,MXAA5#..M,X201911-202008

sub81150-0R191

main81150-0R191iAXAH5#,MXAA5#..M,X202009-202109

sub81150-0R192

main81150-0R192iAXAH5#,MXAA5#..M,X202110-202204

sub81150-0R193

main81150-0R193iAXAL5#,MXAA5#..M,X202205-202409

main81150-0R200iAXAH5#,MXAA5#..G201911-202008

sub81150-0R201

main81150-0R201iAXAH5#,MXAA5#..G202009-202109

sub81150-0R202

main81150-0R202iAXAH5#,MXAA5#..G202110-202204

main81150-0R203iAXAH5#,MXAA5#..G202204-202205

sub81150-0R204

main81150-0R204iAXAH5#,MXAA5#..G202205-202303

main81150-0R370iMXAA52..M202304-202409

LEATHER PACKAGE(20TH ANNIVERSARY)

main81150-0R370iAXAL5#,MXAA5#..G202304-202409

LEATHER PACKAGE

main81150-0R370iAXAL5#,MXAA5#..G202409

FTRD INTERIOR PKG HI

81176PROTECTOR, HEADLAMP, NO.1 LH

main81157-0R190iAXAL5#,MXAA5#..M,X201911-202409

81193RETAINER, HEADLAMP PROTECTOR, UPPER RH

main81193-42050iAXAH5#,MXAA5#¥650201911-202409

81193BRETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2

main81193-42060iAXAL5#,MXAA5#¥1,030201911-202409

81194RETAINER, HEADLAMP PROTECTOR, UPPER LH

main81194-42050iAXAL5#,MXAA5#¥650201911-202409

81194BRETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2

main81194-42060iAXAL5#,MXAA5#¥1,030201911-202409

81195ARETAINER, HEADLAMP PROTECTOR, LOWER RH

main81195-42050iAXAL5#,MXAA5#¥1,030201911-202409

81195DRETAINER, HEADLAMP PROTECTOR, LOWER RH NO.2

main81195-42060iAXAL5#,MXAA5#¥660201911-202409

81196ARETAINER, HEADLAMP PROTECTOR, LOWER LH

main81196-42050iAXAL5#,MXAA5#¥1,030201911-202409

81196DRETAINER, HEADLAMP PROTECTOR, LOWER LH NO.2

main81196-42060iAXAL5#,MXAA5#¥660201911-202409

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-15011iAXAL5#,MXAA5#..M,X¥300201911-202409

12V 21W,AMBER

81515BSOCKET, FRONT TURN SIGNAL LAMP

main90075-60028iAXAL5#,MXAA5#..M,X¥610201911-202409

9010906388

main90109-06388¥70

90109C0022

main90109-C0022

9015960621

main90159-60621¥60

9018906238

main90189-06238¥100

90189C0027

main90189-C0027

19 parts on this diagram · 3 diagrams in section
