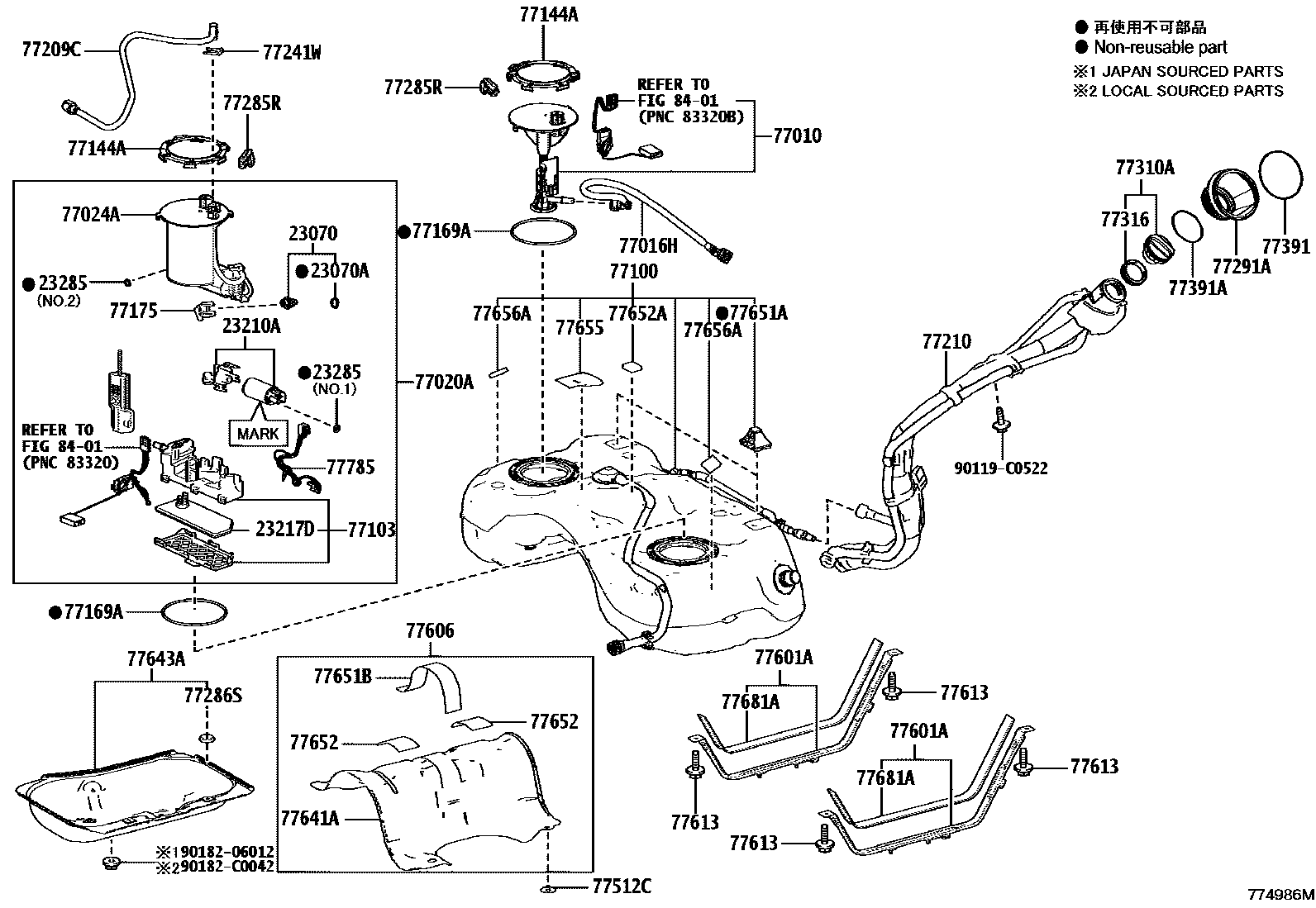

Toyota RAV4 (SFTM) — FUEL TANK & TUBE
23070VALVE ASSY, FUEL MAIN
(J)
(J)
(J)
(L)
(L)
(L)
23070ARING, O, NO.1(FOR FUEL MAIN VALVE)
23210APUMP ASSY, FUEL W/MOTOR & BRACKET
MARK 23221-F0040
MARK 23221-F0040
MARK 23221-F0040
MARK 23221-24010
MARK 23221-24010
MARK 23221-24010
MARK=23221-24010
23217DFILTER, FUEL PUMP
23285RING, O
NO.1:REFER ILLUST.
NO.1:REFER ILLUST.
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
NO.2:REFER ILLUST.
NO.2:REFER ILLUST.
77010TUBE ASSY, FUEL TANK VENT
77016HTUBE SUB-ASSY, FUEL RETURN VENT
77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE
77024APLATE SUB-ASSY, FUEL SUCTION
77100TANK ASSY, FUEL
77103SUB-TANK SUB-ASSY, FUEL
77144ARETAINER, FUEL PUMP GAUGE
77169AGASKET, FUEL SUCTION TUBE SET
77175SUPPORT, FUEL SUCTION, NO.2
77209CTUBE SUB-ASSY, FUEL TANK MAIN
77241WCLIP, TUBE JOINT
(L)
(L)
(L)
(J)
(J)
(J)
77285RCLAMP, FUEL TUBE, NO.1
(L)
(L)
(L)
(J)
(J)
(J)
77286SCUSHION, FUEL TANK PROTECTOR
(J)
(J)
(J)
(L)
(L)
(L)
77291ASHIELD, FUEL TANK FILLER PIPE
77310ACAP ASSY, FUEL TANK
77316GASKET, FUEL TANK CAP
77391RING, FUEL INLET BOX
77391ARING, FUEL INLET BOX
77512CBRACKET, FUEL TANK
(L)
(L)
(L)
(J)
(J)
(J)
77601ABAND SUB-ASSY, FUEL TANK, NO.1
77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1
(L)
(L)
(L)
(J)
(J)
(J)
77613BOLT, FUEL TANK BAND SET
77641APROTECTOR, FUEL TANK, NO.1
77643APROTECTOR, FUEL TANK, NO.3
77651ACUSHION, FUEL TANK, NO.1
77651BCUSHION, FUEL TANK
77652CUSHION, FUEL TANK, NO.1
77652ACUSHION, FUEL TANK, NO.2
77655CUSHION, FUEL TANK, NO.3
77656ACUSHION, FUEL TANK, NO.4
77681ASEAT, FUEL TANK BAND
77785HARNESS, FUEL PUMP
8401
90119C0522
main90119-C0522
9018206012
90182C0042
main90182-C0042
42 parts on this diagram · 7 diagrams in section
