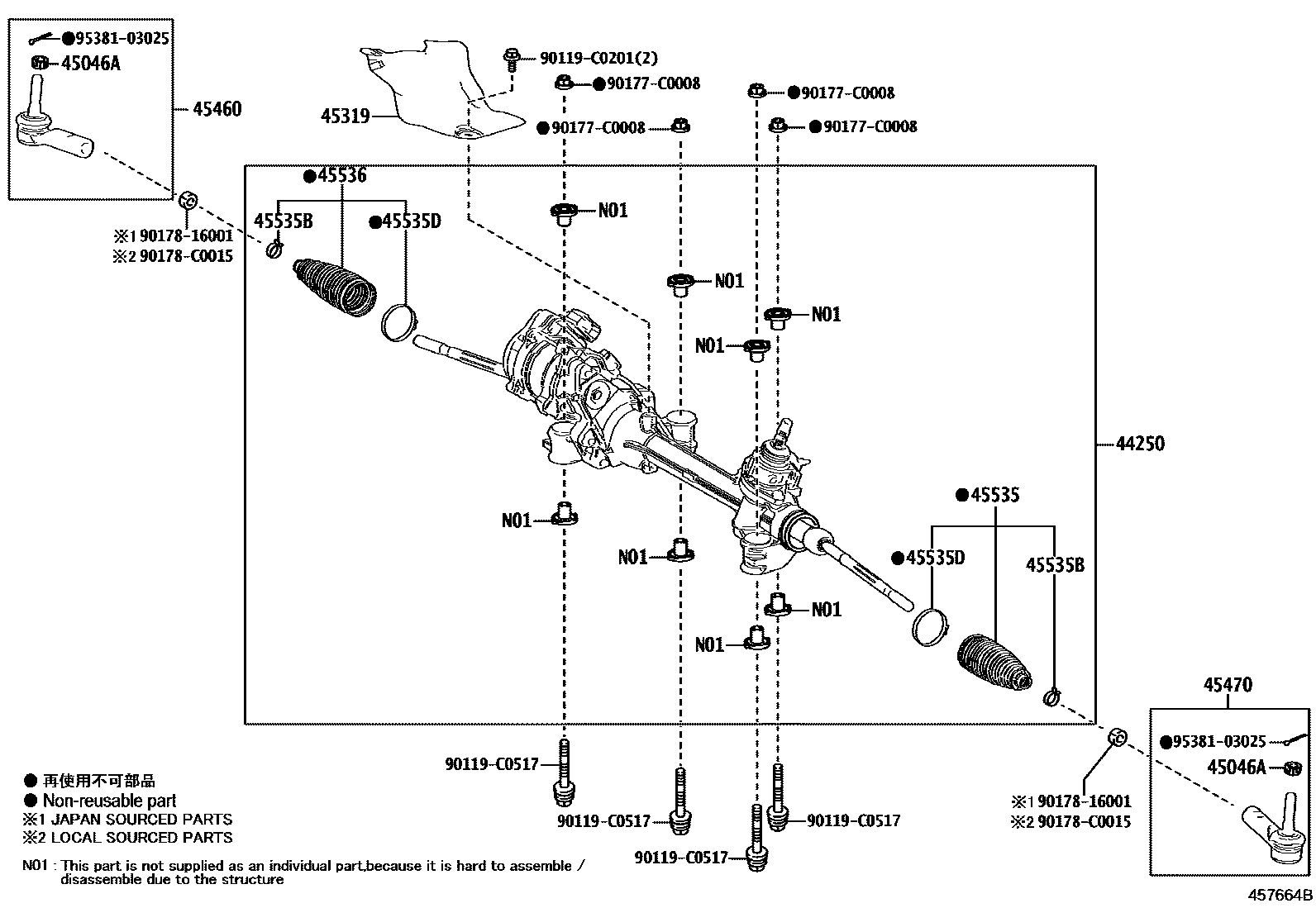

Toyota RAV4 (SFTM) — FRONT STEERING GEAR & LINK

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-0R030iAXAH5#;MXAA5#..M,X201911-202303

main44250-0R040iMXAA5#..G201911-202303

main44250-0R160iAXAL5#;MXAA5#..M,X202304-202409

main44250-0R170iMXAA5#..G202304-202409

main44250-0R200iMXAA5#..G202409

*614

main44250-0R210iAXAL5#;MXAA5#..M,X202409

*614

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12015iAXAL5#,MXAA54..G¥190202304-202409

(J)

main90171-12015iAXAH5#,MXAA54..G¥190201911-202303

main90171-12016iMXAA52;AXAL5#,MXAA54..M¥100202304-202409

(J)

main90171-12016iMXAA52;AXAH5#,MXAA54..M¥100201911-202303

main90171-C0013iMXAA52;AXAL5#,MXAA54..M202304-202409

(L)

main90171-C0014iAXAL5#,MXAA54..G202304-202409

(L)

45319INSULATOR, STEERING GEAR HEAT

main45319-0R020iAXAL5#,MXAA5#201911-202409

45460ROD ASSY, TIE, RH

main45460-09340iMXAA5#..G201911-202409

main45460-09350iAXAH5#;MXAA5#..M,X201911-202402

sub45460-09440

main45460-09440iAXAL5#;MXAA5#..M,X202403-202409

45470ROD ASSY, TIE, LH

main45460-09340iMXAA5#..G201911-202409

main45460-09350iAXAH5#;MXAA5#..M,X201911-202402

sub45460-09440

main45460-09440iAXAL5#;MXAA5#..M,X202403-202409

45535BOOT, STEERING RACK, NO.1

main45535-09590iAXAH5#,MXAA5#201911-202103

sub45535-09680

main45535-09680iAXAH5#,MXAA5#202104-202409

45535BCLIP(FOR STEERING RACK BOOT)

main45537-0D030iAXAL5#,MXAA5#201911-202409

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main45538-06040iAXAH5#,MXAA5#201911-202103

main45538-0D070iAXAH5#,MXAA5#202104-202409

45536BOOT, STEERING RACK, NO.2

main45535-09590iAXAH5#,MXAA5#201911-202103

sub45535-09680

main45535-09680iAXAL5#,MXAA5#202104-202409

90119C0201

main90119-C0201

90119C0517

main90119-C0517

90177C0008

main90177-C0008

9017816001

main90178-16001¥120

90178C0015

main90178-C0015

9538103025

main95381-03025¥130

15 parts on this diagram · 1 diagram in section
