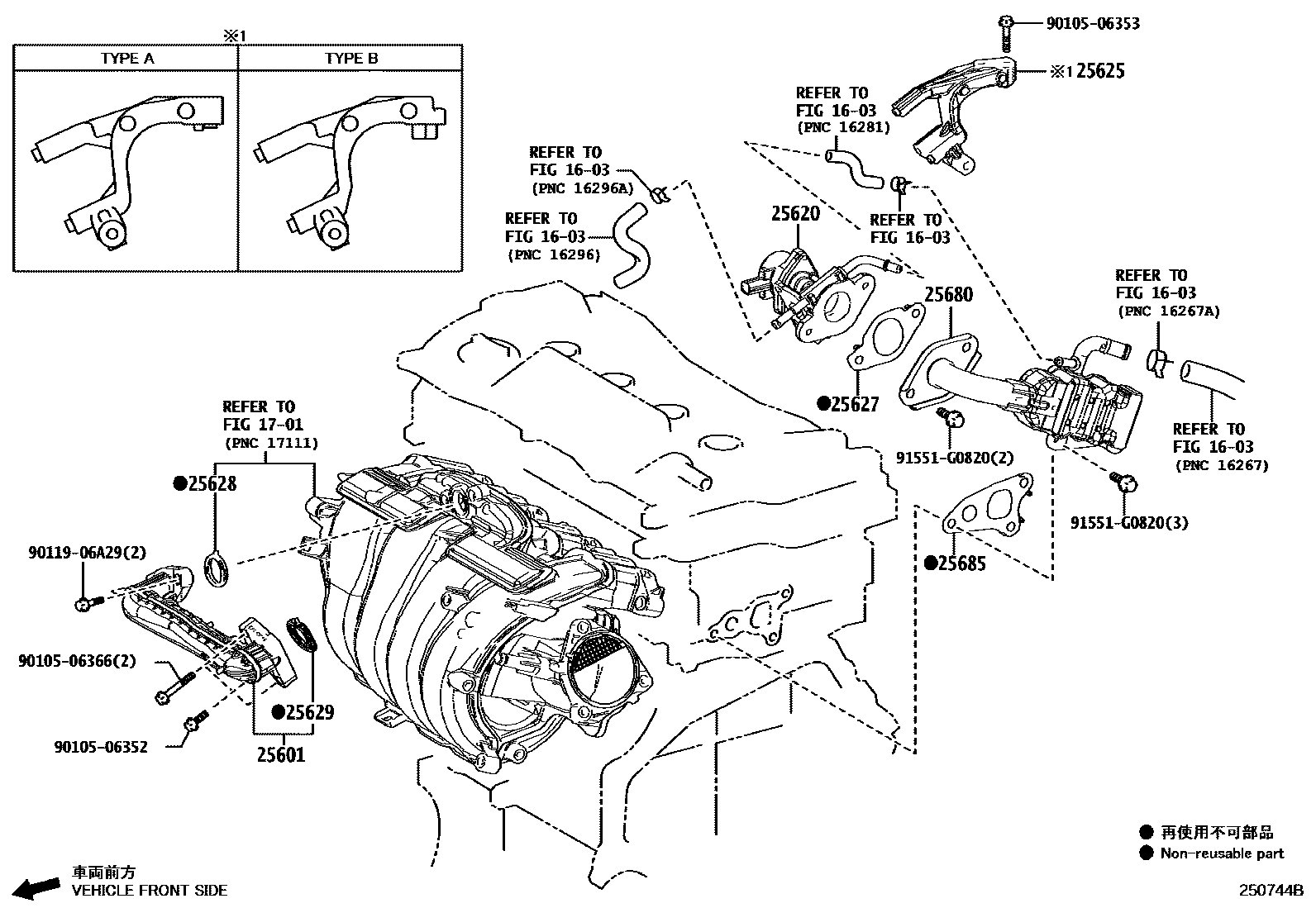

Toyota RAV4 (SFTM) — EXHAUST GAS RECIRCULATION SYSTEM

0001 1 0002 1 0003 1

1603

1701

25601PIPE SUB-ASSY, EGR, NO.1

main25601-25011iA25..AXAH5#¥3,450202108-202303

*625

main25601-25011iA25..AXAH5#¥3,450201911-202110

*636

main25601-F0030iA25..AXAL5#202304-202409

main25601-F2040iM20..MXAA5#201911-202411

main25601-F2050iM20..MXAA5#202411

25620VALVE ASSY, EGR

main25620-25050iA25..AXAH5#¥18,400202108-202303

*625

main25620-25050iA25..AXAH5#¥18,400201911-202110

*636

main25620-F2030iA25..AXAL5#201911-202409

25625BRACKET, EGR VALVE

main25625-25010iA25..AXAH5#¥3,570201911-202007

*636T/P A:REF.ILLUST

main25625-25030iA25..AXAH5#¥2,970202007-202110

*636T/P B:REF.ILLUST

main25625-25030iA25..AXAH5#¥2,970202108-202303

*625

25627GASKET, EGR VALVE

main25627-25010iA25..AXAH5#¥270201911-202110

*636

main25627-25010iA25..AXAH5#¥270202108-202303

*625

main25627-F2020iM20..MXAA5#201911-202409

25628GASKET, EGR INLET

main25628-25010iA25..AXAL5#¥340201911-202409

main25628-25010iA25..AXAH5#¥340201911-202110

*636

main25628-25010iA25..AXAH5#¥340202108-202303

*625

25629GASKET, EGR VALVE ADAPTER

main25629-25010iM20..MXAA5#¥340201911-202409

main25629-25010iA25..AXAH5#¥340201911-202110

*636

main25629-25010iA25..AXAH5#¥340202108-202303

*625

25680COOLER ASSY, EGR

main25680-25040iA25..AXAH5#202108-202303

*625

main25680-25040iA25..AXAH5#201911-202110

*636

main25680-F0070iA25..AXAL5#202304-202409

main25680-F2030iM20..MXAA5#201911-202409

25685GASKET, EGR COOLER, NO.1

main25685-25011iA25..AXAH5#¥270201911-202110

*636

main25685-F2010iA25..AXAL5#201911-202409

main25685-F2010iA25..AXAH5#202108-202303

*625

9010506352

main90105-06352¥60

9010506353

main90105-06353¥60

9010506366

main90105-06366¥80

9011906A29

main90119-06A29¥60

91551G0820

main91551-G0820¥80

15 parts on this diagram · 3 diagrams in section
