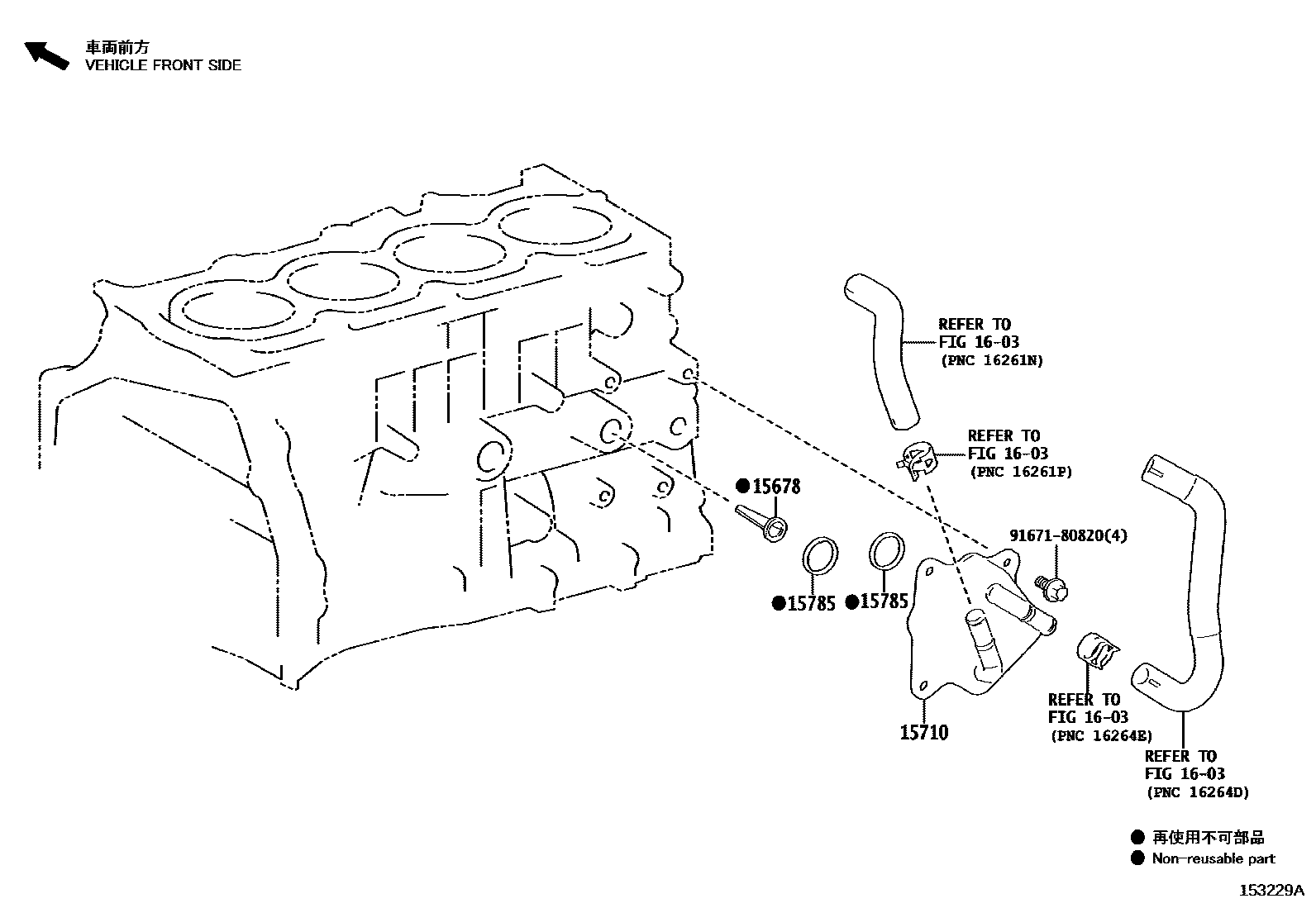

Toyota RAV4 (SFTM) — ENGINE OIL COOLER

0001 1 0002 1

15678FILTER, OIL CONTROL VALVE

main15678-25010iA25..AXAH5#¥600201911-202110

15710COOLER ASSY, OIL

main15710-25010iA25..AXAH5#¥28,900201911-202110

main15710-F2010iM20..MXAA5#201911-202303

main15710-F2010iM20..MXAA5#202409

main15710-F2010iM20..MXAA5#202304-202409

15785GASKET, OIL COOLER

main15785-25010iA25..AXAH5#¥340201911-202110

main15785-F2010iM20..MXAA5#202409

main15785-F2010iM20..MXAA5#201911-202303

main15785-F2010iM20..MXAA5#202304-202409

1603

9167180820

main91671-80820¥80

5 parts on this diagram · 2 diagrams in section
