Toyota RAV4 (SFTM) — ELECTRONIC FUEL INJECTION SYSTEM

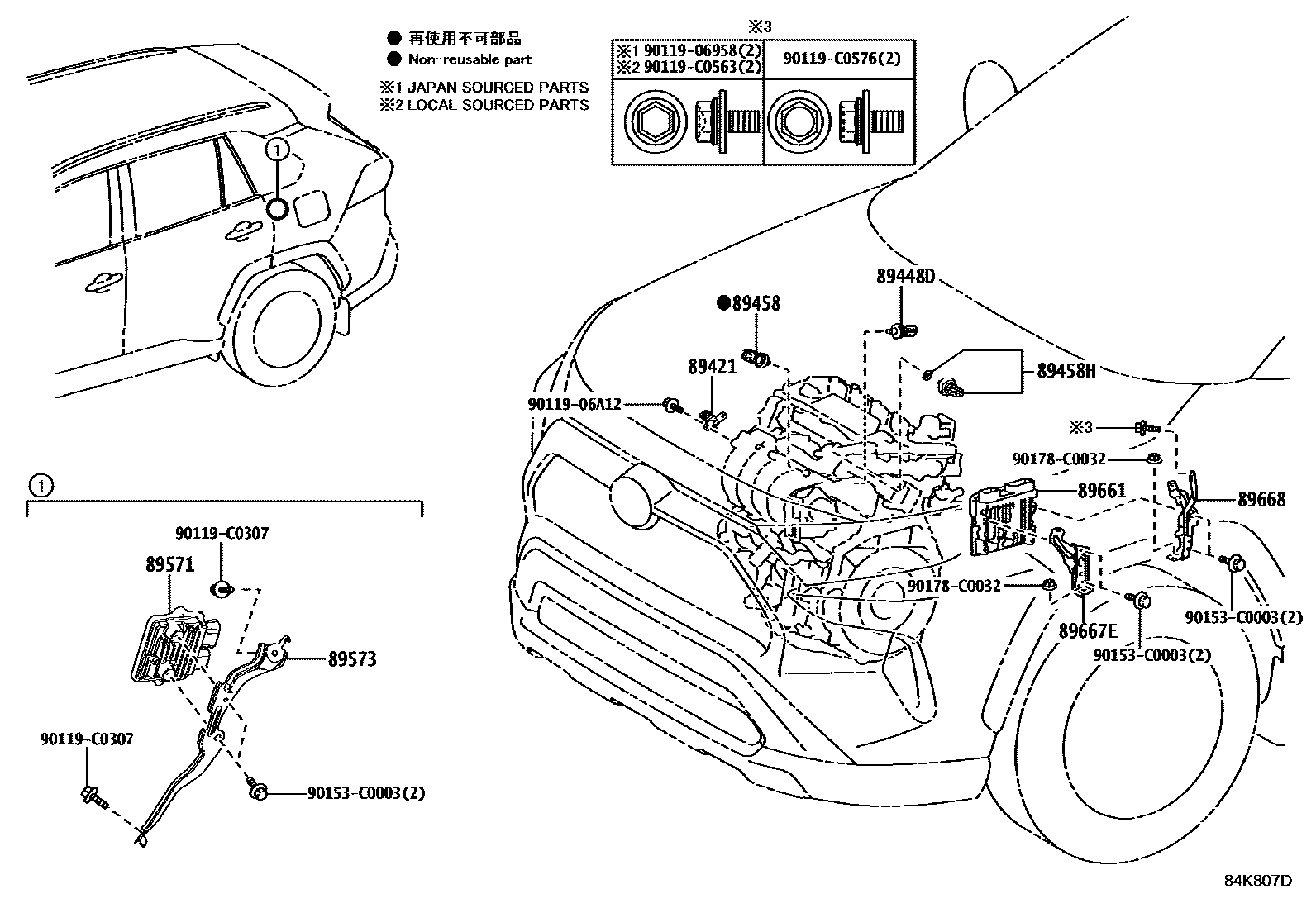

Parts diagram
89421SENSOR ASSY, VACUUM (FOR E.F.I.)
main89421-33010i¥5,900201911-202409
89448DSENSOR, OIL PRESSURE & TEMPERATURE
main89448-0R010i202403-202409
(L)
main89448-33010i¥5,700201911-202403
main89448-33010i¥5,700202403-202409
(J)
89458SENSOR, FUEL PRESSURE
main89458-0R010i202403-202409
(L)
main89458-33030i¥4,320201911-202403
main89458-33030i¥4,320202403-202409
(J)
89458HSENSOR, FUEL PRESSURE, NO.2
main89458-0R020i202403-202409
(L)
main89458-33041i¥4,760201911-202212
main89458-33042i¥4,320202403-202409
(J)
main89458-33042i¥4,320202301-202403
89571COMPUTER, FUEL PUMP CONTROL
main89571-10010i¥9,900202206-202409
main89571-12010i¥10,900201911-202009
main89571-48010i¥9,900202010-202206
89573BRACKET, FUEL PUMP CONTROL COMPUTER
main89573-0R020i201911-202409
89661COMPUTER, ENGINE CONTROL
main89661-0R440i201911-202111
DENSO
main89661-0R780i201911-202303
DENSO
main89661-0R790i201911-202303
DENSO
main89661-0RB70i202111-202303
DENSO
main89661-0RE00i202304-202409
DENSO
main89661-0RE10i202304-202409
DENSO
main89661-0RE70i202304-202409
DENSO
main89661-0RG40i202409
DENSO,*614
main89661-0RG60i202409
DENSO,*614
main89661-0RG70i202409
DENSO,*614
89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1
main89667-0R050i201911-202409
main89667-0R060i201911-202403
sub89667-0R061
main89667-0R061i202404-202409
89668BRACKET, ENGINE CONTROL COMPUTER, NO.2
main89668-0R050i201911-202409
main89668-0R060i201911-202409
9011906958
main90119-06958¥60
9011906A12
main90119-06A12¥60
90119C0307
main90119-C0307
90119C0563
main90119-C0563
90119C0576
main90119-C0576
90153C0003
main90153-C0003
90178C0032
main90178-C0032

16 parts on this diagram · 2 diagrams in section
