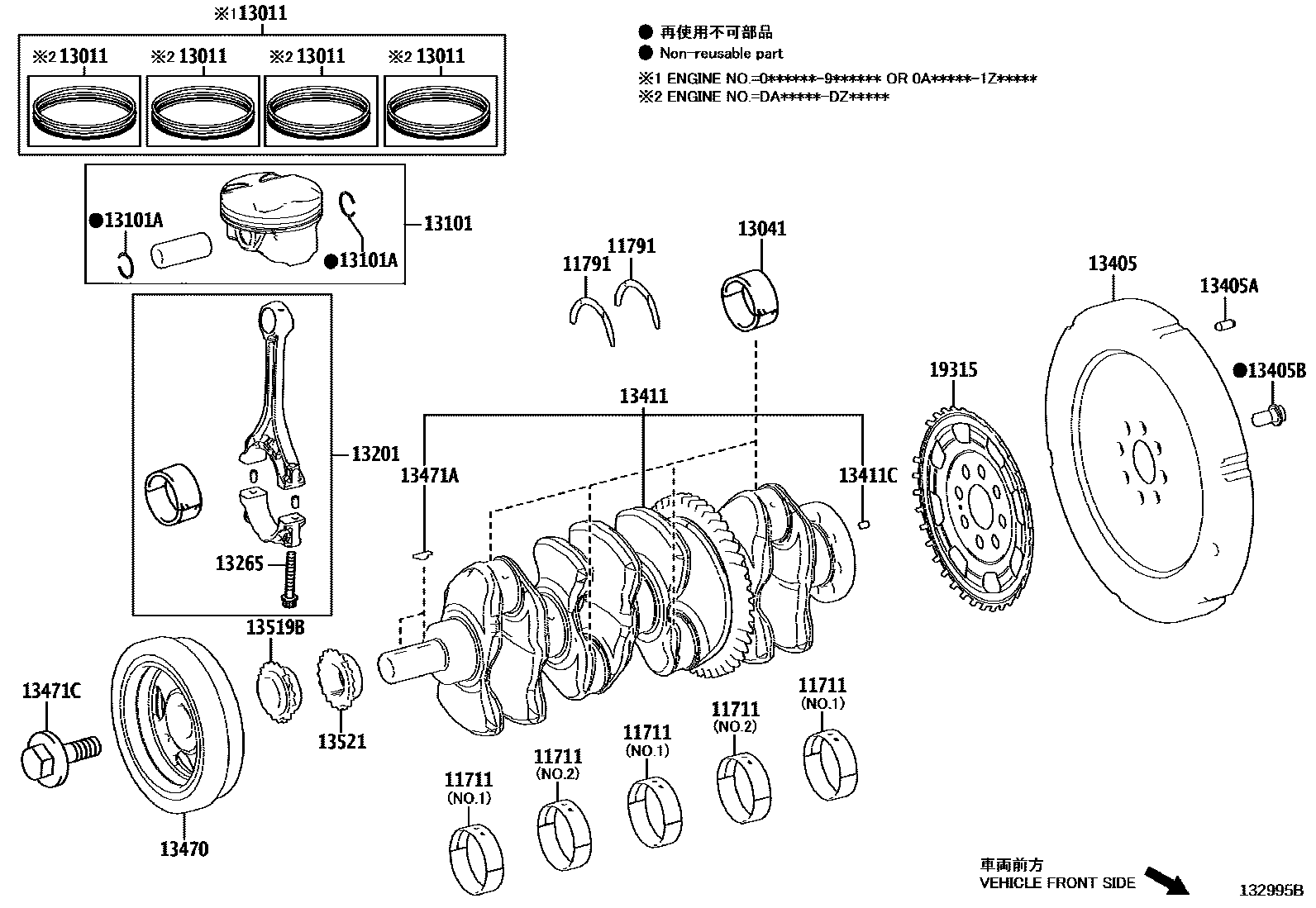

Toyota RAV4 (SFTM) — CRANKSHAFT & PISTON
11711BEARING, CRANKSHAFT
MARK 1,*636,NO.1,REFER R/M
MARK 2,*636,NO.1,REFER R/M
MARK 3,*636,NO.1,REFER R/M
MARK 4,*636,NO.1,REFER R/M
MARK 5,*636,NO.1,REFER R/M
MARK 1,*636,NO.2,REFER R/M
MARK 2,*636,NO.2,REFER R/M
MARK 3,*636,NO.2,REFER R/M
MARK 4,*636,NO.2,REFER R/M
MARK 5,*636,NO.2,REFER R/M
MARK 1,NO.1,REFER R/M
MARK 1,NO.1,REFER R/M,*625
MARK 2,NO.1,REFER R/M,*625
MARK 2,NO.1,REFER R/M
MARK 3,NO.1,REFER R/M
MARK 3,NO.1,REFER R/M,*625
MARK 4,NO.1,REFER R/M,*625
MARK 4,NO.1,REFER R/M
MARK 5,NO.1,REFER R/M,*625
MARK 5,NO.1,REFER R/M
MARK 1,NO.2,REFER R/M,*625
MARK 1,NO.2,REFER R/M
MARK 2,NO.2,REFER R/M
MARK 2,NO.2,REFER R/M,*625
MARK 3,NO.2,REFER R/M
MARK 3,NO.2,REFER R/M,*625
MARK 4,NO.2,REFER R/M,*625
MARK 4,NO.2,REFER R/M
MARK 5,NO.2,REFER R/M,*625
MARK 5,NO.2,REFER R/M
MARK 1,REFER REPAIR MANUAL
MARK 2,REFER REPAIR MANUAL
MARK 3,REFER REPAIR MANUAL
MARK 4,REFER REPAIR MANUAL
MARK 5,REFER REPAIR MANUAL
MARK 6,REFER REPAIR MANUAL
11791WASHER, CRANKSHAFT THRUST, UPPER
STD,*636
STD
STD,*625
STD
13011RING SET, PISTON
STD,*636
STD
STD,*625
STD
13041BEARING, CONNECTING ROD
MARK 1,*636:REFER R/M
MARK 2,*636:REFER R/M
MARK 3,*636:REFER R/M
MARK 1,REFER REPAIR MANUAL
MARK 1,*625:REFER R/M
MARK 2,*625:REFER R/M
MARK 2,REFER REPAIR MANUAL
MARK 3,*625:REFER R/M
MARK 3,REFER REPAIR MANUAL
MARK 1,REFER REPAIR MANUAL
MARK 2,REFER REPAIR MANUAL
MARK 3,REFER REPAIR MANUAL
13101PISTON SUB-ASSY, W/PIN
STD
STD,*636
STD
STD,*625
13101ARING, HOLE SNAP(FOR PISTON PIN)
*636
*625
13201ROD SUB-ASSY, CONNECTING
MARK A,(J),*625
MARK A,*636:REFER R/M
MARK B,*636:REFER R/M
MARK B,(J),*625
MARK C,*636:REFER R/M
MARK C,(J),*625
MARK A,REFER REPAIR MANUAL
MARK B,REFER REPAIR MANUAL
MARK C,REFER REPAIR MANUAL
MARK A,(L),*625
MARK A
MARK B
MARK B,(L),*625
MARK C
MARK C,(L),*625
13265BOLT, CONNECTING ROD
*636
*625
13405FLYWHEEL SUB-ASSY
*636
*625
13405APIN, STRAIGHT(FOR FLYWHEEL)
L=18,OD=8,*625
L=18,OD=8,(J),*625
L=18,OD=8,(J)
L=18,OD=8,*636
L=18,OD=8,(L)
L=18,OD=8,(L),*625
13405BBOLT, FLYWHEEL SETTING
*636
*625
13411CRANKSHAFT
*636
*625
13411CPIN, STRAIGHT(FOR CRANKSHAFT)
*636
*625
13470PULLEY ASSY, CRANKSHAFT
*636
*625
13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
*636
*625
*625
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
*636
*625
13519BSPROCKET, OIL PUMP DRIVE
*636
*625
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
*636
*625
19315PLATE, CRANK ANGLE SENSOR, NO.1
*636
*625
19 parts on this diagram · 3 diagrams in section
