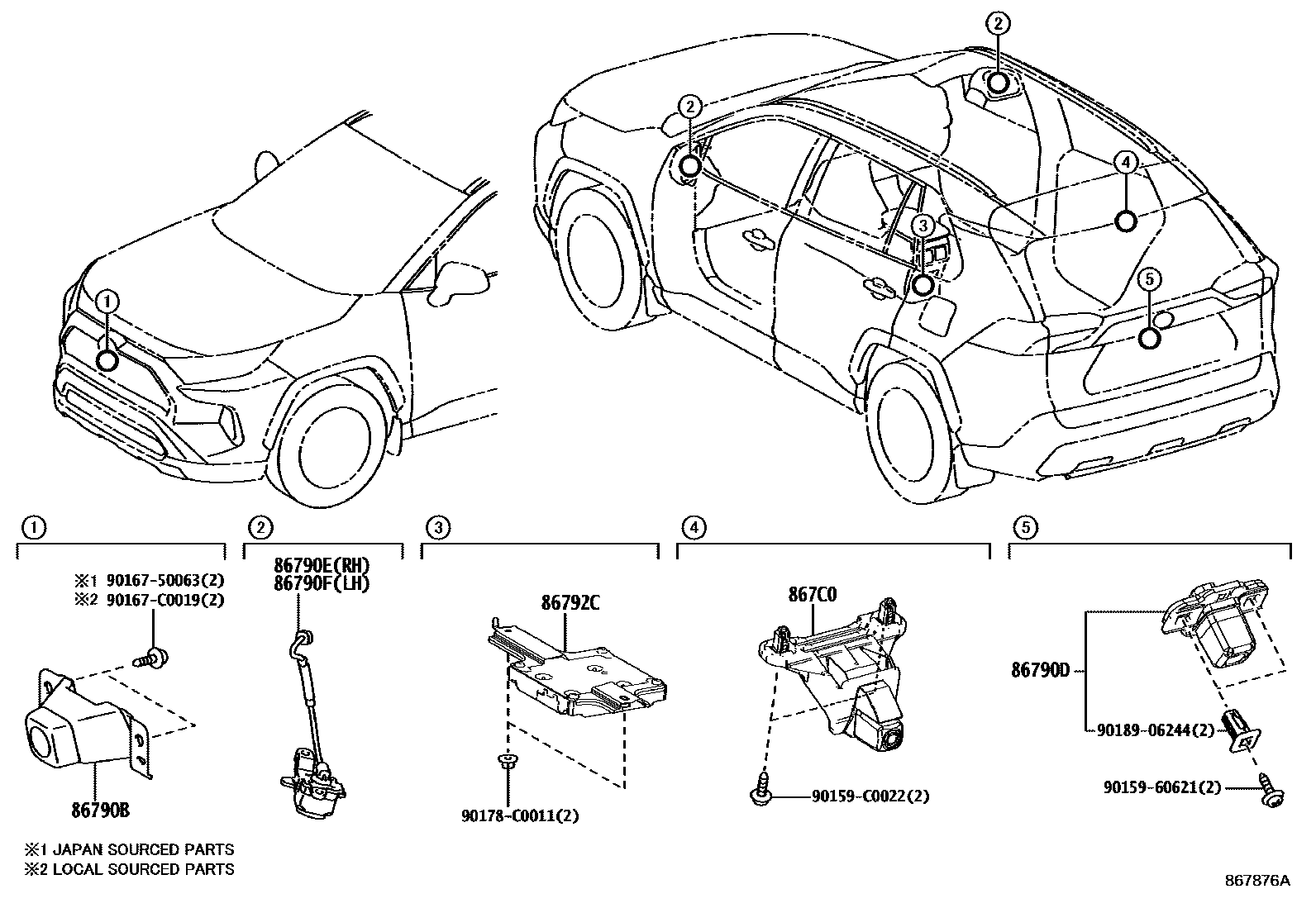

Toyota RAV4 (SFTM) — CAMERA & REAR MONITOR DISPLAY

86790BCAMERA ASSY, TELEVISION, FR

main86790-0R180iAXAH5#,MXAA5#..G,M201911-202104

main86790-0R181iAXAH5#,MXAA5#..G,M202104-202303

main86790-0R520iAXAL5#,MXAA5#..G,M202304-202409

FTRD PARTS

main86790-0R520iMXAA54202409

FTRD PARTS

86790DCAMERA ASSY, TELEVISION, RR

main86790-0R130iAXAH5#,MXAA5#..G,M201911-202004

sub86790-0R230

main86790-0R230iAXAH5#,MXAA5#..G,M202005-202303

main86790-0R480iAXAL5#,MXAA5#202409

main86790-0R480iAXAL5#,MXAA5#..G,M202304-202409

86790ECAMERA ASSY, TELEVISION, SIDE RH

main86790-0E250iAXAH5#,MXAA5#..G,M202104-202303

main86790-0R110iAXAH5#,MXAA5#..G,M201911-202104

main86790-0R500iAXAL5#,MXAA5#..G,M202304-202409

main86790-0R500iAXAL5#,MXAA5#202409

86790FCAMERA ASSY, TELEVISION, SIDE LH

main86790-0E240iAXAH5#,MXAA5#..G,M202104-202303

main86790-0R100iAXAH5#,MXAA5#..G,M201911-202104

main86790-0R490iAXAL5#,MXAA5#..G,M202304-202409

main86790-0R490iAXAL5#,MXAA5#202409

86792CCOMPUTER, PARKING ASSIST

main86792-0R030iAXAH5#,MXAA5#..G,M201911-202002

sub86792-0R031

main86792-0R031iAXAH5#,MXAA5#..G,M202003-202104

main86792-0R100iAXAH5#,MXAA5#..G,M202104-202303

main86792-0R130iAXAL5#,MXAA5#..G,M202304-202409

main86792-0R140iAXAL5#,MXAA5#202409

867C0CAMERA ASSY, INNER MIRROR

main867C0-0R010iAXAL5#..G202409

main867C0-0R010iAXAL5#..G202304-202409

main867C0-0R010iAXAH5#..G202104-202303

main867C0-42020iAXAH5#..G201911-202104

9015960621

main90159-60621¥60

90159C0022

main90159-C0022

9016750063

main90167-50063¥60

90167C0019

main90167-C0019

90178C0011

main90178-C0011

9018906244

main90189-06244¥100

12 parts on this diagram · 1 diagram in section
