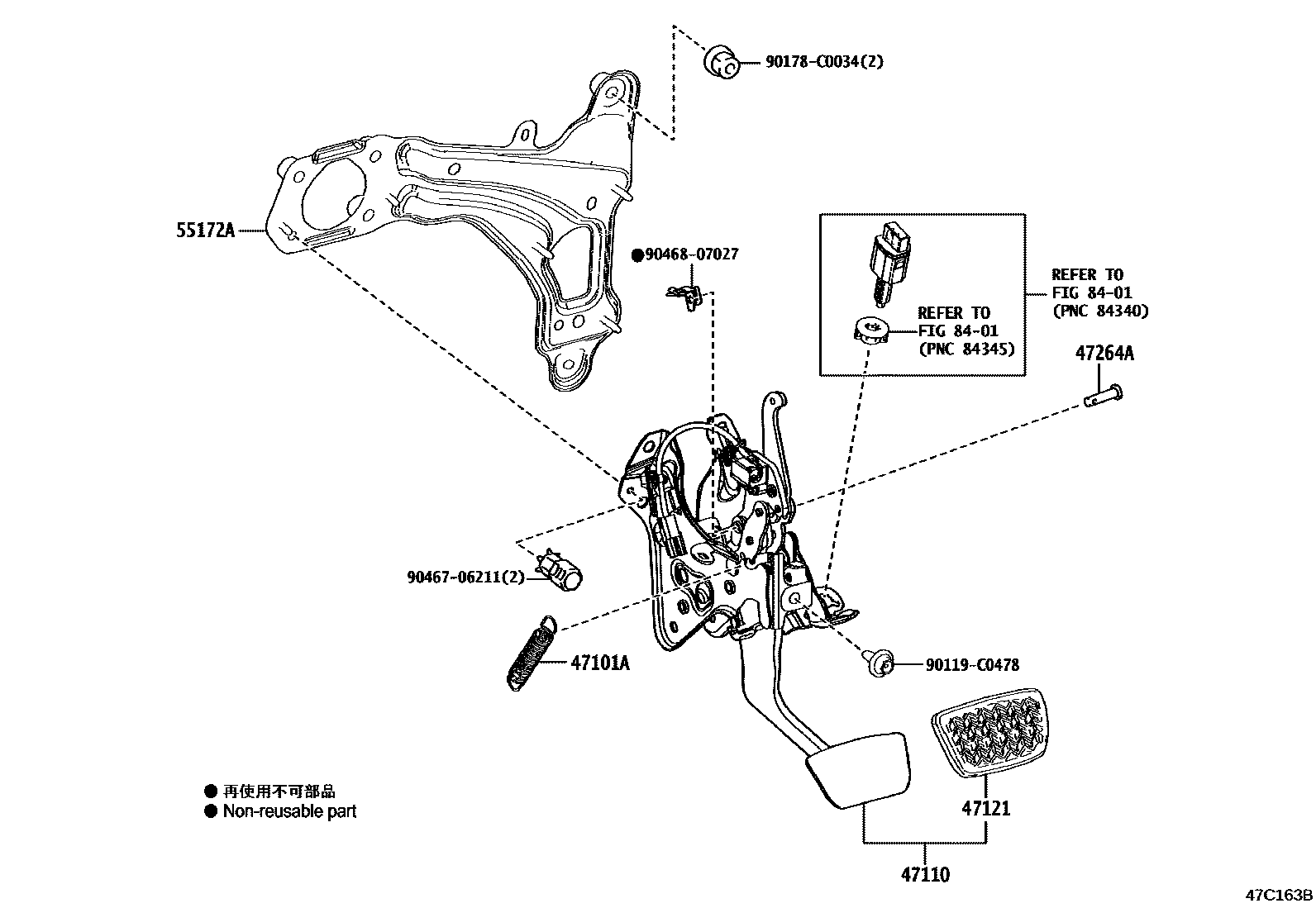

Toyota RAV4 (SFTM) — BRAKE PEDAL & BRACKET

0001 1 0002 1 0003 1

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-12046iAXAH5#,MXAA5#¥120201911-202409

47110SUPPORT ASSY, BRAKE PEDAL

main47110-0R130iMXAA5#201911-202409

main47110-0R140iAXAH5#201911-202303

main47110-0R170iAXAL5#202304-202409

47121PAD, BRAKE PEDAL

main47121-48010iAXAH5#,MXAA5#¥520201911-202409

47264APIN(FOR PUSH ROD)

main90240-06028iMXAA5#¥90201911-202409

main90240-08082iAXAH5#¥120201911-202409

55172ABASE, BRAKE PEDAL SUPPORT

main55172-0R020iAXAL5#,MXAA5#201911-202409

8401

90119C0478

main90119-C0478

90178C0034

main90178-C0034

9046706211

main90467-06211¥80

9046807027

main90468-07027¥60

10 parts on this diagram · 3 diagrams in section
