Toyota RAV4 (SFTM) — ANTI-THEFT DEVICE

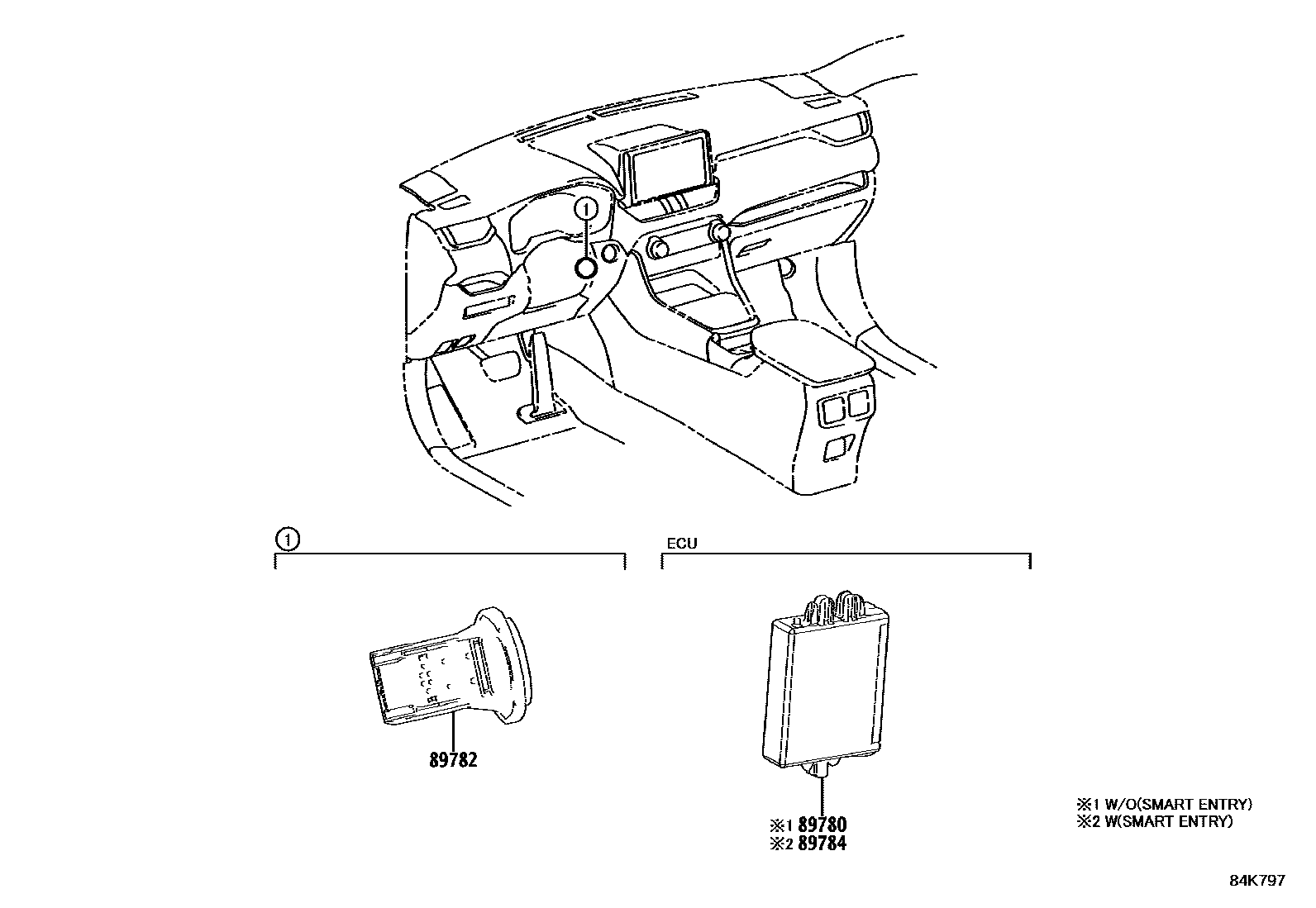

Parts diagram

89780COMPUTER ASSY, TRANSPONDER KEY

main897H0-02060i201911-202409

89782COIL, TRANSPONDER KEY

main89782-0R040i201911-202409

89784COMPUTER, IMMOBILIZER CODE

main89784-02170i201911-202303

main89784-0E110i202409

main89784-0E130i202304-202409

3 parts on this diagram · 1 diagram in section
